step 2

Constant Power and Ignition wires

Almost all power and ignition wires can be found behind the key

cylinder under the lower drivers side dash panel. Using the

appropriate hand tools, remove the lower dash panel using care

not to break any parts. If the panel does not come off easily

check for any additional screws you may have missed.

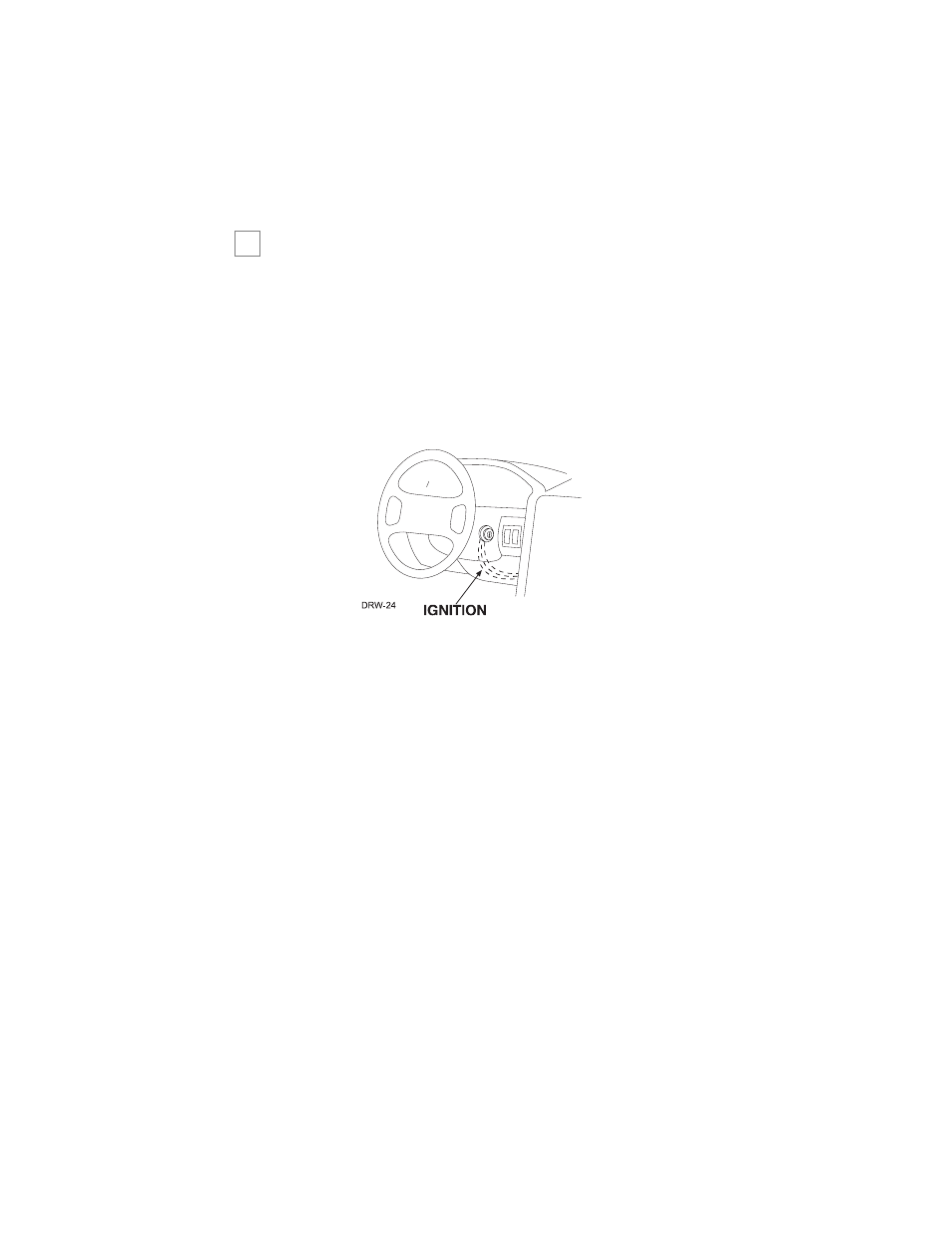

Once the lower dash panel has been removed, locate the ignition

harness at the back of the key cylinder. This is usually a group of

thicker wires. With the ignition harness exposed, use your LED

tester to find your power and ignition wires.

Place the black lead of the LED tester to a clean metal surface in

the kick panel area and secure it. Probe one of the thicker gauge

wires. The color and identity of your specific vehicle wiring can

be obtained at www.boasecurity.com. With the key in the OFF

position, test the suspect wire. The constant power wire will illu-

minate the LED tester.
