73
Get
ting Star
ted
Connections
Set
up
Pla
ybac
k
Remot
e Contr
ol
Inf
or
mation
Tr
oubleshooting

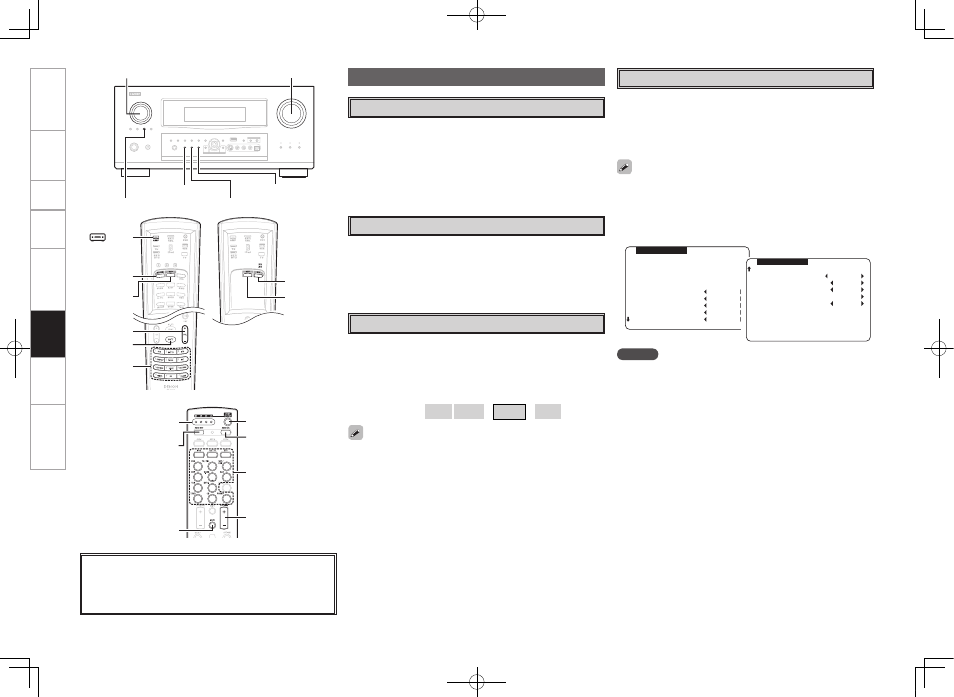

Multi-Zone Operations
Turning the Power On and Off
G Operation on the main unitH
Press , or for the zone
to be operated.
When the power turns on, the multi-zone indicator lights on the
display.
G Operation on the remote control unitH
In the zone mode you want to operate, press [ON] or [OFF].
Selecting the Input Source
G Operation on the main unitH
q Press and select the zone to be adjusted.
w Turn .
G Operation on the remote control unitH
In the zone mode you want to operate, press [SOURCE SELECT].
Adjusting the Volume
G Operation on the main unitH
q Press and select the zone to be adjusted.
w Turn to adjust.
G Operation on the remote control unitH
In the zone mode whose volume you want to adjust, press [VOLUME].
– – – –70dB ~ –40dB ~ 18dB [Variable range]
• The volume can be adjusted when GUI menu “Manual Setup”
– “Zone Setup” – “(select the zone)” – “Volume Level” is set to
“Variable”. The volume can be increased up to the value set at
GUI menu “Manual Setup” – “Zone Setup” – “(select the zone)”
– “Volume Limit” (vpage 34).
• The volume for ZONE2 and ZONE3 can be adjusted with the remote
control unit.
SOURCE SELECT
[Z2 ON]
[OFF]
[MUTE]
[VOLUME]
[ AMP]
SOURCE
SELECT
About the button names in these explanations
< > : Buttons on the main unit
[ ] : Buttons on the remote control unit
Button name only:
Buttons on the main unit and remote control unit
ZONE2 MENU
INPUT :DVD
SIGNAL:ANALOG
VOL. :-40dB
>Bass 0dB
HPF OFF
Treble 0dB
Lch Lev. 0dB
Rch Lev. 0dB
ZONE2 MENU
>Channel STEREO
Vol.Lev. VAR
P.On Lev. LAST
Vol.Limit OFF
Mute Lev. FULL
Turning off the Sound Temporarily
In the zone mode for which you want to mute the sound, press
[MUTE].
The sound is reduced to the level set at GUI menu “Manual Setup”
– “Zone Setup” – “(select the zone)” – “Mute Level” (vpage 34).
To cancel, either adjust the volume or press [MUTE] again.
The setting is canceled when the zone’s power is turned off.
• The source selected for ZONE2 is also output from the recording
output connectors.
• For ZONE2, the “Zone Setup” can be made while watching the on-
screen display. Also, when ZONE3 is operated, the on-screen display
appears on the ZONE2 monitor, so operation can be performed
watching this on-screen display.
NOTE
• When connected to the component video output connectors, the
on-screen display is not displayed.
• When the input source to which the digital input connectors
(OPTICAL/COAXIAL) are assigned is selected in ZONE2 or ZONE3,
playback is only possible if the digital signal being input is in PCM
(2-channel) format.
• Digital audio signals input from the DENON LINK or HDMI connectors
cannot be played in multi-zone.
• In ZONE4, it is not possible to select “XM”, “HD Radio”, or sources
with no digital input signals (“TUNER”, “PHONO”, “iPod”, etc.).
Network audio signals (Internet radio, music server, USB) can be
played as long as they are not copyright-protected.
• When certain digital signals are being input, noise may be output
from the ZONE2 and ZONE3 audio output connectors.
• When “DENON LINK” is assigned at the GUI menu “Assign” setting,
the PCM signals, network audio signals (Internet radio, music server
and USB), XM signals and HD Radio signals input from the digital
input connectors cannot be output from the ZONE2 and ZONE3
audio output connectors.
Multi-Zone
(ZONE3 or
ZONE4 mode)
[OFF]
[ON]
[ZONE SELECT]
[OFF]
[MUTE]
Multi-zone
indicator
[ON]
[VOLUME]
SOURCE SELECT
(Main remote control unit)
(Sub remote control unit)
