G Flow of video signals for ZONE2H
• This function automatically converts various formats of video signals input to the AVR-4308CI into the
format used to output the video signals from the AVR-4308CI to a monitor.
• The AVR-4308CI’s video input/output circuitry is compatible with the following four types of video
signals:
Digital video signals: HDMI
Analog video signals: Component video, S-Video and Video
Video Conversion Function

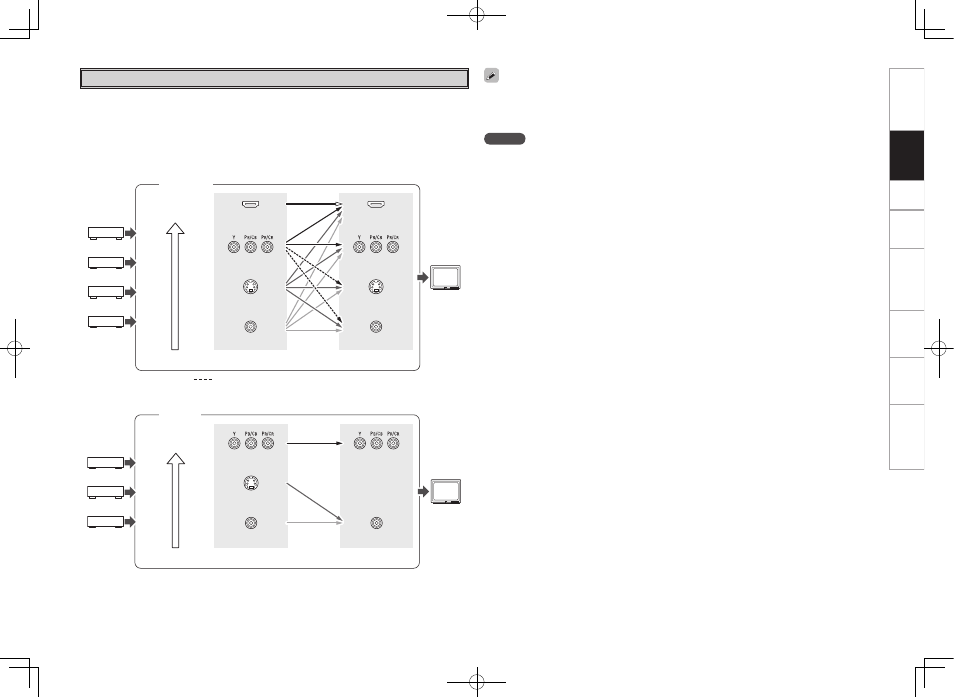

G Flow of video signals inside the AVR-4308CIH
Main zone
High picture
quality playback HDMI connector
Component video
connectors
S-Video connector
Video connector
Monitor
HDMI connector
Component video
connectors
S-Video connector
Video connector
Video inputs Video outputs
: When 480i/576i signals are input in the main zone
Component video
connectors
S-Video connector
Video connector
Component video
connectors
Video connector
Video inputs Video outputs
ZONE2
NOTE
• HDMI signals cannot be converted into analog signals.
• 1080p component input video signals cannot be output to anything other than component video
connectors.
• 480p/576p, 1080i and 720p component video input signals cannot be converted into S-Video or Video
format.
• When using the component video output connectors for connection to the ZONE2 monitor, the ZONE2’s
on-screen display is not displayed.
• When a non-standard video signal from a game machine or some other source is input, the video
conversion function might not operate.
• When not using this function, connect a monitor output with the same type of connector as the video
input connector.
• The resolution of the HDMI input-compatible monitor connected to the AVR-4308CI can be checked at
GUI menu “Information” – “HDMI Information” – “Monitor1” or “Monitor2” (vpage 46).
