For buttons not explained here, see the page indicated in parentheses ( ).
w e
t o i u y
q r
Q3 Q2 Q1 Q0
q Power operation button
(ON/STANDBY) ··········································· (47)
w Power indicator ··········································· (47)
e Power switch (hON jOFF) ····················· (47)
r QUICK SELECT buttons / indicators ········· (59)
t MASTER VOLUME control knob ················ (47)
y Master volume indicator
u Display
i Remote control sensor ································· (3)
o SOURCE SELECT knob······························· (37)
Q0 SOURCE button ·········································· (37)
Q1 TUNING PRESET button ···························· (48)
Q2 ZONE 2/3/4 / REC SELECT button ······ (58, 73)
Q3 VIDEO SELECT button ······························· (39)
Q4 Headphones jack (PHONES) ······················ (47)
Q5 ZONE2 ON/OFF button ······························ (73)
Q6 ZONE3 ON/OFF button ······························ (73)
Q7 ZONE4 ON/OFF button ······························ (73)
Q8 MENU button ·············································· (23)
Q9 Cursor buttons (uio p) ·························· (23)
W0 CH SEL / ENTER button ······················· (23, 59)
W1 RETURN button ·········································· (23)
W2 V.AUX INPUT connectors ··························· (17)
W3 SETUP MIC jack ·········································· (25)
W4 ROOM EQ button ········································ (44)
W5 DIMMER button ·········································· (36)
t
u Q3 Q7 Q8 i Q0
o Q5 Q1
Q2 Q4 Q6 y
w q e r
q Input signal indicators
w Input signal channel indicators
These light when digital signals are input.
e Information display
The input source name, surround mode, setting
values and other information are displayed here.
r Output signal channel indicators
t Surround speaker indicators
These light according to the settings of the
surround A and B speakers.
y Monitor output indicators
These light according to the HDMI monitor
output setting. When set to “Auto (Dual)”, the
indicators light according to the connection
status.
u Master volume indicator
i AUDYSSEY MULTEQ XT indicator
This lights when the room equalizer is selected.
o Recording output source indicator
This lights when the REC OUT mode is
selected.
Q0 NIGHT indicator
This lights when the night mode is selected.
Q1 Multi zone indicators
These light when the power for the respective
zone is turned on.
Q2 RESTORER indicator
This lights when the RESTORER mode is
selected.
Q3 ADVANCED AL24 indicator
This lights when Advanced AL24 Processing is
activated (vpage 76).
Q4 D.LINK indicator
This lights when playing using DENON LINK
connections.
Q5 Input mode indicators
Q6 HDMI indicator
This lights when playing using HDMI
connections.
Q7 Decoder indicators
These light when the respective decoders are
operating.
Q8 Tuner reception mode indicators
These light according to the reception conditions
when the input source is set to “TUNER” or
“HD Radio”.
• AUTO
This lights when in the auto tuning mode.
• STEREO
In the FM mode, this lights when receiving
analog stereo broadcasts.
• TUNED
This lights when the broadcast is properly tuned
in.

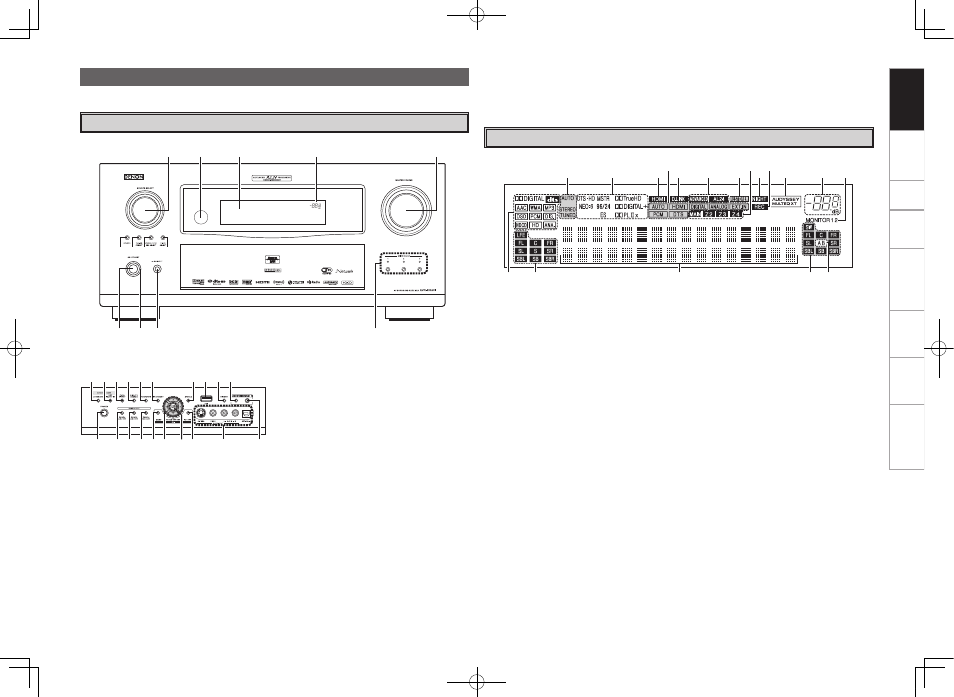

Part Names and Functions
Front Panel
Display
W2 W3
W4 W7 E2 W5 W6 E3 E0 E1 W8 W9
Q4 Q5 Q6 Q7 Q8 W1 W0 Q9
G With the door openH
E0 DIRECT/STEREO button····························· (42)
E1 PURE DIRECT button ·································· (42)
E2 DSP SIMULATION button ·························· (42)
E3 STANDARD button ····································· (41)
W6 USB port ······················································ (18)
W7 STATUS button ··········································· (46)
W8 INPUT MODE button ·································· (39)
W9 RESTORER button ······································ (44)
