8

DR

®

STUMP GRINDER

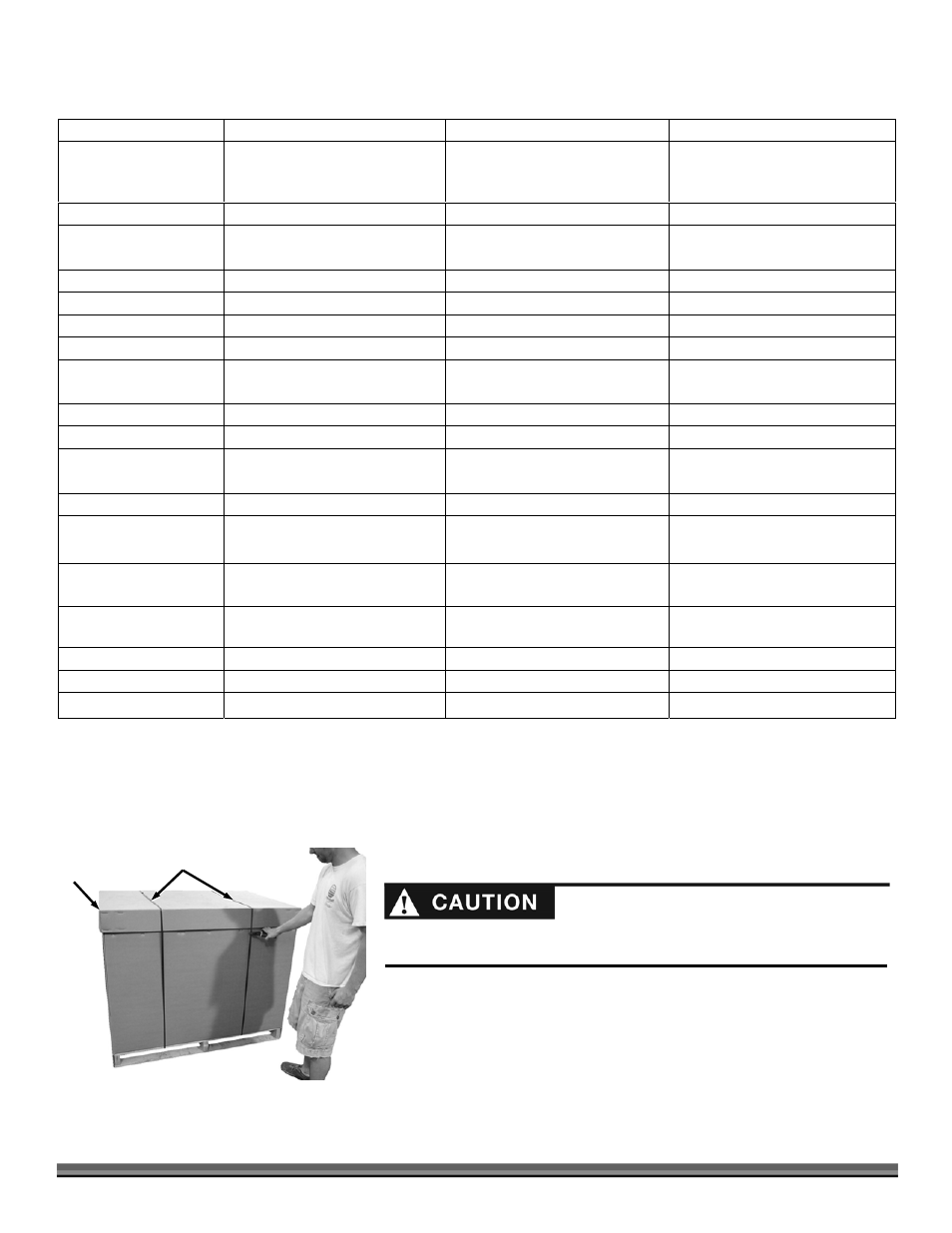

Specifications

Unpacking the DR STUMP GRINDER

Tools and supplies Needed:

Wire Cutters

Utility Knife

Needle Nose Pliers

Safety Glasses

1.

Cut the two Straps securing the Box Cover and remove the Cover (Figure 2).

Engine

6HP Subaru Manual-Start

9HP Subaru Manual-Start

9HP Subaru Electric-Start

Please refer to the Engine
Owner’s Manual for Engine-
specifications.

Please refer to the Engine
Owner’s Manual for Engine-
specifications.

Please refer to the Engine
Owner’s Manual for Engine-
specifications.

Tire Size

14.5" Pneumatic

14.5" Pneumatic

14.5" Pneumatic

Handle Bars

Height adjustable to 32", 36.5"
and 40" (w/tools)

Height adjustable to 32", 36.5"
and 40" (w/tools)

Height adjustable to 32", 36.5"
and 40" (w/tools)

Brake

Band w/ locking feature

Band w/ locking feature

Band w/ locking feature

Diameter

4"

4"

4"

Clutch

Centrifugal

Centrifugal

Centrifugal

Engagement speed

1900 RPMs

1900 RPMs

1900 RPMs

Frame

Welded 12 ga steel
construction

Welded 12 ga. steel
construction

Welded 12 ga. steel
construction

Belt

V-Belt

V-Belt

V-Belt

Size

AP47: 49.3" OD, 47.3" ID

BP47: 49.8" OD, 47.3" ID

BP47: 49.8" OD, 47.3" ID

Construction

Wrapped for abrasion
resistance

Wrapped for abrasion
resistance

Wrapped for abrasion
resistance

Cutting Head

Rotary 9 Tooth

Rotary 9 Tooth

Rotary 9 Tooth

Cutting Head Size

(w/Teeth)

1.3" Wide (kerf) X 10.5"
Diameter

1.3" Wide (kerf) X 10.5"
Diameter

1.3" Wide (kerf) X 10.5"
Diameter

Cutting Teeth

Replaceable Tungsten Carbide
Tipped (three position)

Replaceable Tungsten Carbide
Tipped (three position)

Replaceable Tungsten Carbide
Tipped (three position)

Machine Dimensions

28" W x 51" L x 36" H* -
*center Handlebar position

28" W x 51" L x 36" H* -
*center Handlebar position

28" W x 51" L x 36" H* - *center
Handlebar position

Operating Weight

127 lbs

139 lbs

160 lbs

Shipping Weight

192 lbs.

204 lbs.

225 lbs.

Shipping Dimensions

54.75" L x 35.5" W x 45.25" H

54.75" L x 35.5" W x 45.25" H

54.75" L x 35.5" W x 45.25" H

The Straps and Cable Ties may be under tension. Wear Safety Glasses when
cutting the Straps and Cable Ties to protect your eyes.

Box
Cover

Figure 2

Straps
