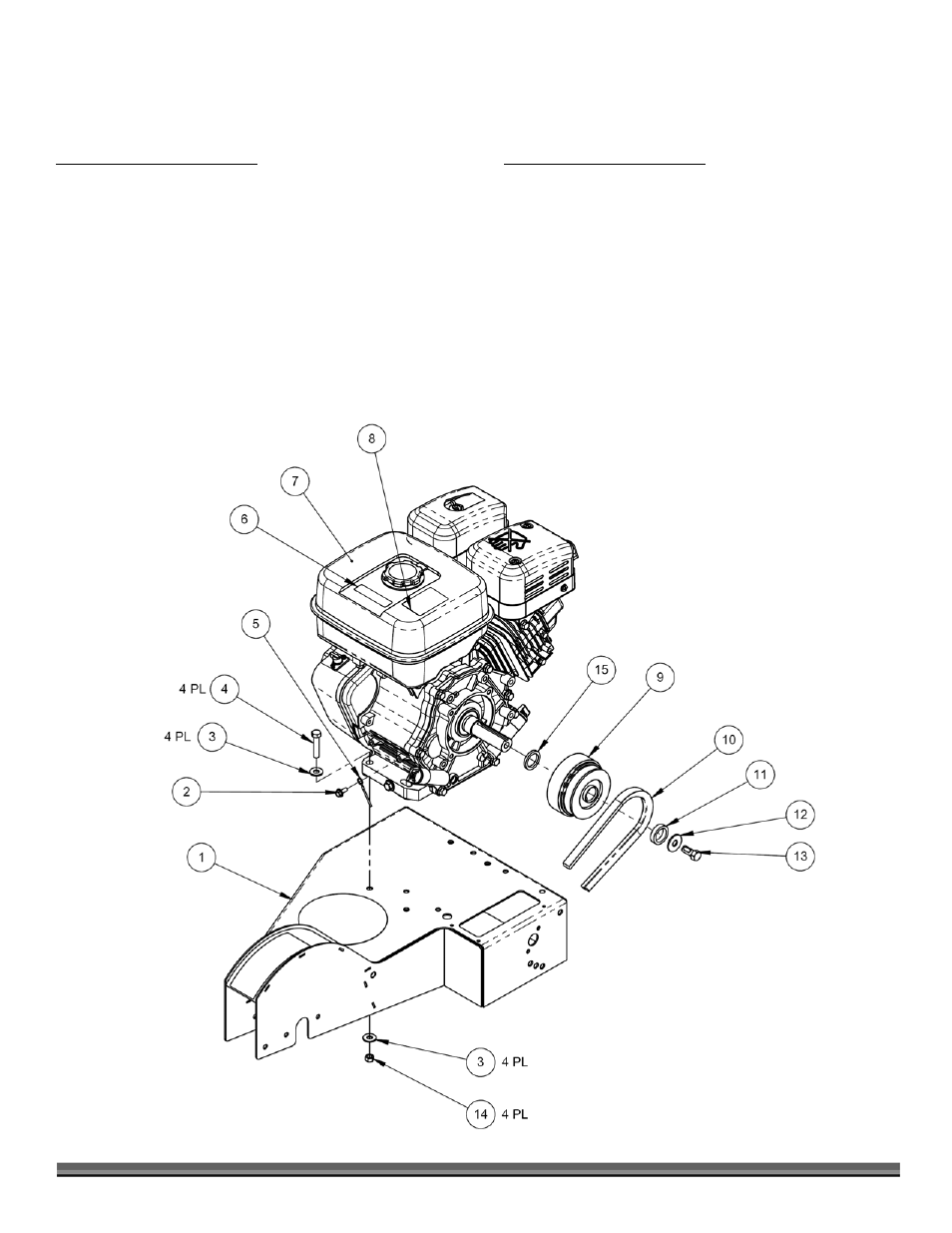

Parts List – DRIVE ASSEMBLY (9HP specific parts)

NOTE: Part numbers listed are available through DR Power Equipment.

Ref# Part#

Description

01 271721 Frame,

w/Labels

02

265361

Bolt, Serrated Flange, M6-1x16

03

112411

Washer, Flat, 5/16", Uss

04

123341

Bolt, Hhcs, 3/8-16 x 1-3/4", Gr 5, Zp

05

264851

Wire Harness, Manual Start

286901 Wire

Harness, Electric Start

06

127811

Label, Warning Add Oil

07

271331

Engine w/Labels, Subaru, 9HP

287031

Engine W/ Label, 13.74 GTQ, Subaru E/S

08

188871

Label, Hot Surface, R/C

Ref# Part#

Description

09

265331

Clutch, Centrifugal, 1" Bore

10

265631

Belt, Stump Grinder 9HP

11

271401

Spacer, 1" ID,1.375" OD, .313 Th

12 271641 Washer,

.47"Id, 1.4"Od, .15" Th

13

229111

Bolt, Hhcs, 7/16-20 X 1", Gr 8, Locking
Patch

14

110751

Nut Nylon Lock 3/8-16

15

265681

Shim, 1" ID, 1.375" OD x .16 Th
