2.2.1 Mounting Matrix-1000™
Using the Matrix-1000™ mounting bracket you can obtain vertical shift and rotation of
the reader as shown in the diagram below:

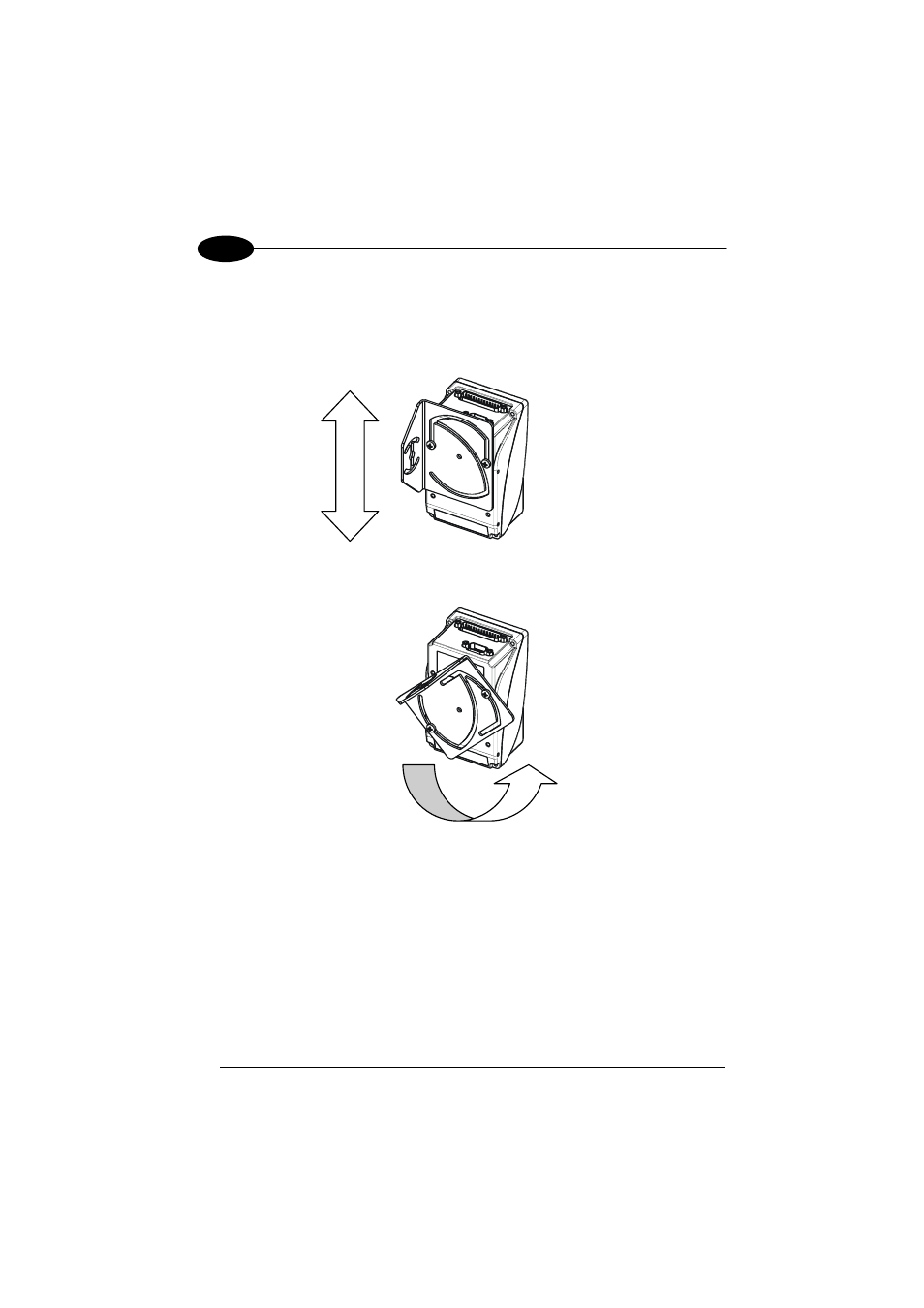

Figure 9 - Positioning with Mounting Brackets
