Setup Structure

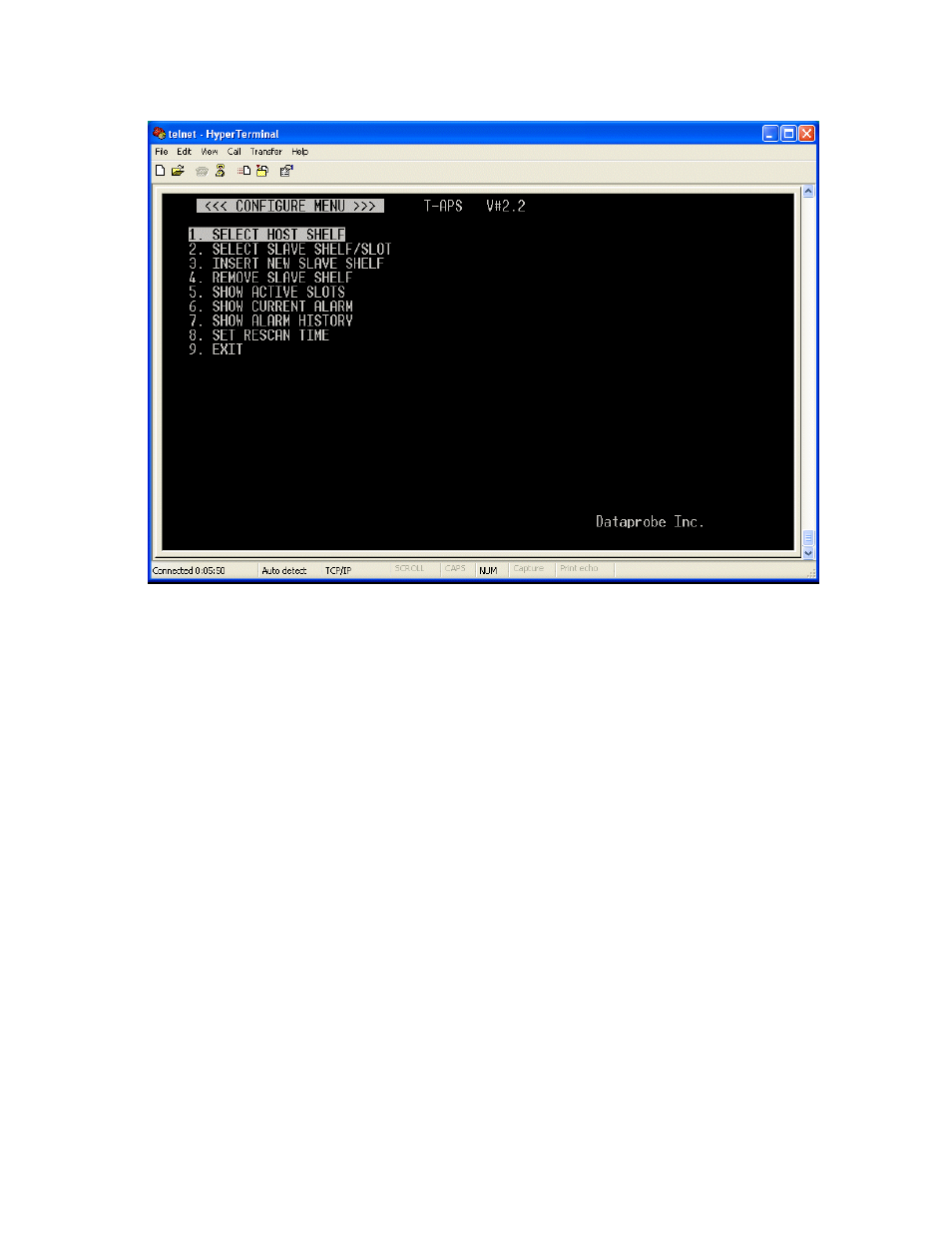

Configuration Menu

Select Host Shelf Menu
Selects the Master Host Shelf Nest for Configuration and Setup

Select Slave Shelf/Slot

For stacking multiple T-APS-R T1/E1 protection switch units, Select Number range 2~8, and
Slot Number 1~15. Example: “2, 15” means Shelf 2 Slot 15.

Insert New Slave Shelf

To stack multiple T-APS-R T1/E1 protection switch units, Insert new slave shelf address
range from 2~8 as slave shelf.

Remove Slave Shelf

For stacking multiple T-APS-R T1/E1 protection switch units, Remove slave address range
from 2~8.

Show Active Slave Shelf

Display and Show Active Slave Shelf.

Show Current Alarm

Show Current Alarm status.

Show Alarm History

1. Show Alarm History.
2. Clear All Alarm History

Set Rescan Time

Master T-APS-R will use the set rescan time to scan its slave units if the slave units had been
removed or replaced, the scan result will be displayed in Show Active Slave Shelf. Default
setting is 5 Minutes.
