2 Introduction
1.2 System Overview
The All Sport CG is an interface that receives footage from a video camera and overlays
game-in-progress (GIP) data from an All Sport controller onto the video footage. It then sends
the footage combined with the data to a video recording device. The result is game video
with scoring and timing information always shown with the footage (Figure 2).
The connection between the All Sport controller and the All Sport CG can be either wire or
radio. The radio option allows for more flexibility and fewer physical connections (an All
Sport CG with the radio option can still use a wire connection as a backup if desired).
System Requirements
The All Sport CG system requires the following additional components (sold separately):
• Video camera
• Recording device, such as a VCR, DVD recorder, or video capture card
• All Sport 3000, 5000, or 5500 control console (optional, but recommended)

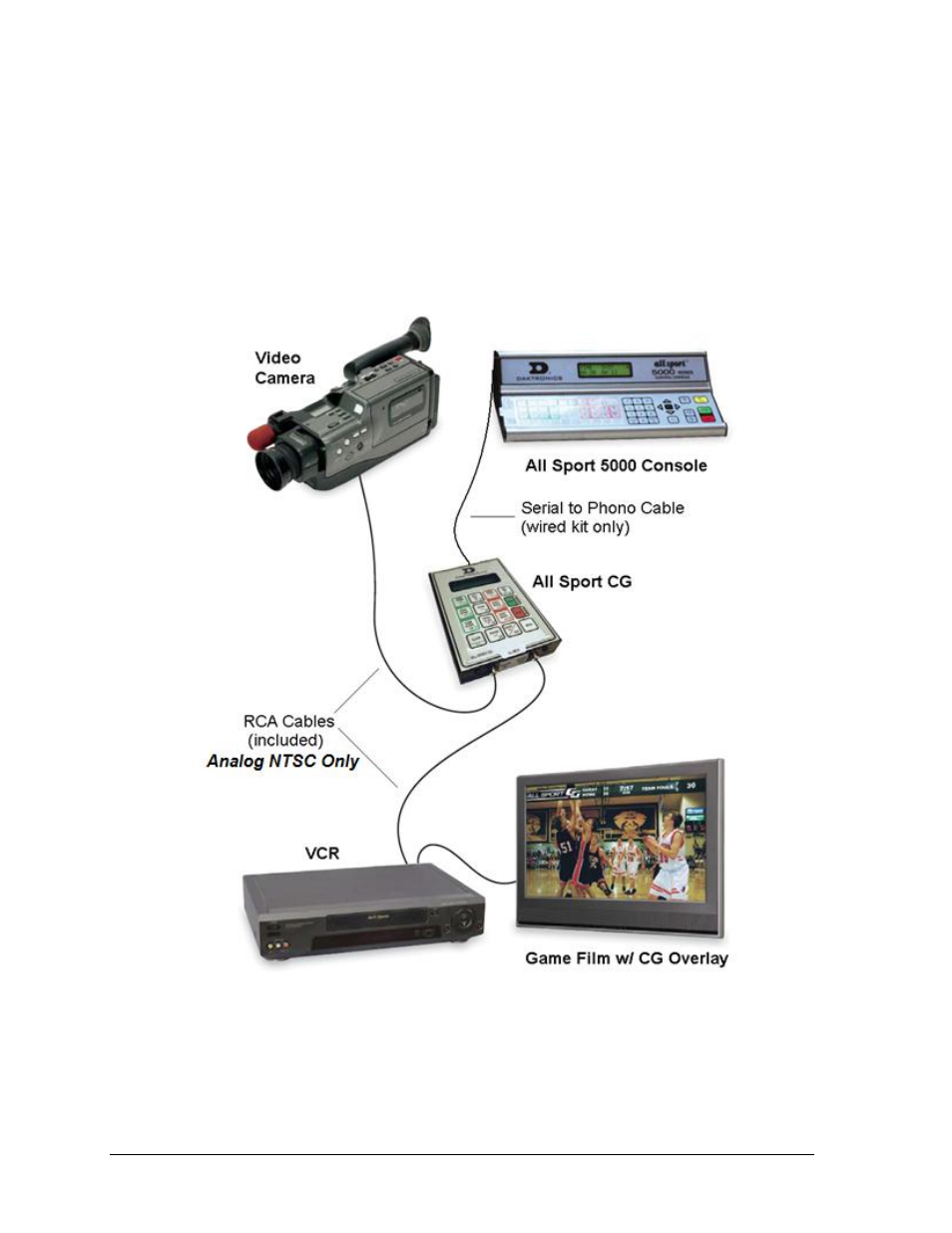

Figure 2: All Sport CG Typical System Layout
