Daktronics ST-2000 Tuff Sport & ColorSmart LED Scorer’s Table - Manual (Page 43)

THE CONCEPTS EXPRESSED AND DETAILS SHOWN ON THIS
DRAWING ARE CONFIDENTIAL AND PROPRIETARY. DO NOT
REPRODUCE BY ANY MEANS WITHOUT THE EXPRESSED
WRITTEN CONSENT OF DAKTRONICS, INC.
COPYRIGHT 2012 DAKTRONICS, INC.
DAKTRONICS, INC.
AV
DRAWN: DATE:
SHEET JOB NO: REV
SCORES TABLES
RADIO RECIEVER INSTALLATION FOR SCORES TABLES
JVANAAR 25 OCT 12
P 1313 E 10 A
1/35
JVANAAR
1117167
00
1. POSITION OF ANTENNA CAN BE PLACED INTO ANY
OF THE TWO HOLES SHOWN ABOVE. PLACE THE
ANTENNA WITHIN LINE OF SIGHT OF THE ALLSPORT
CONSOLE
IF THE ALLSPORT CONSOLE IS WITHIN 12FT OF
THE SCOREBOARD THEN THE ALLSPORT CONSOLE
NEEDS TO BE HARD WIRED.

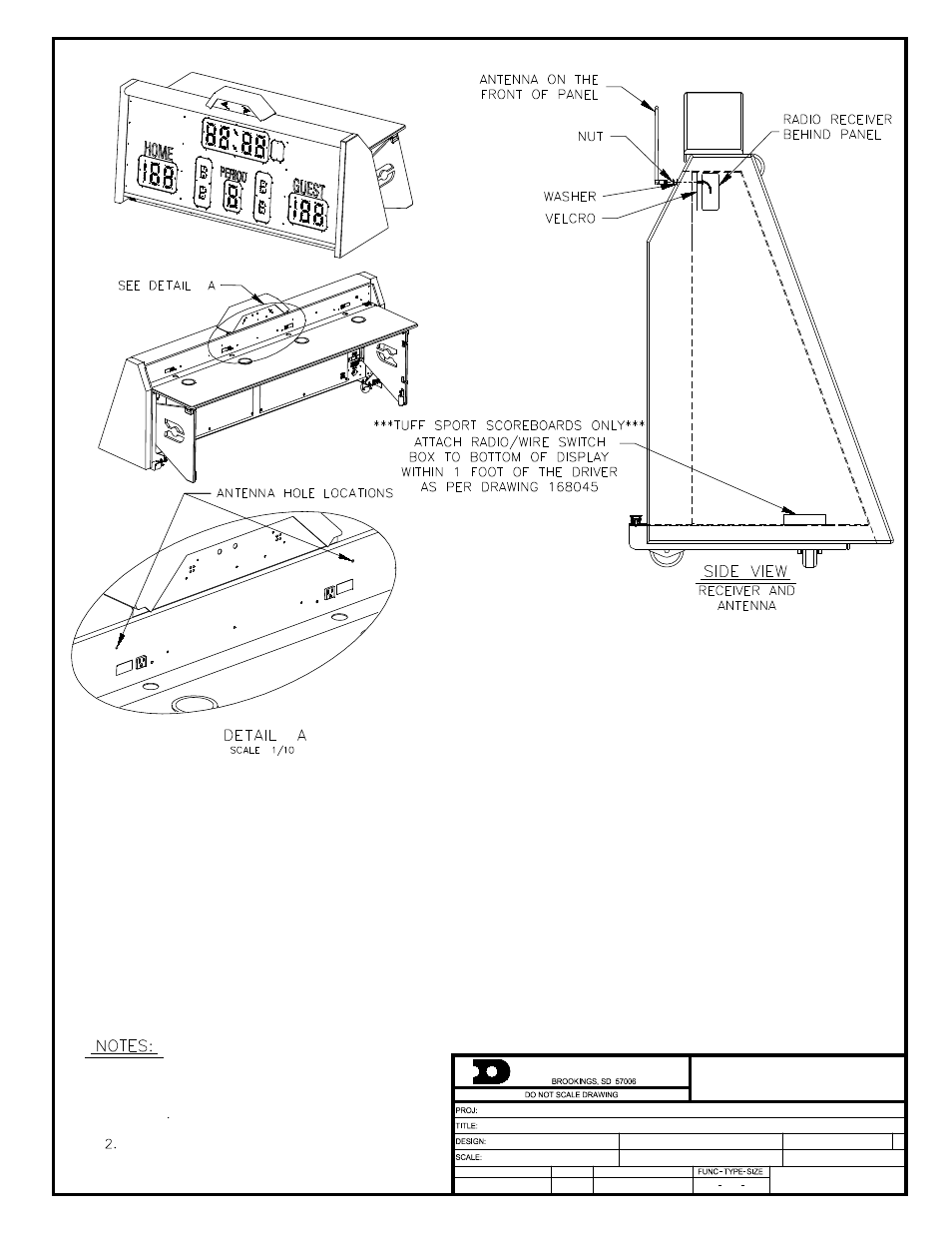

RADIO INSTALLATION
1. SET THE CHANNEL NUMBER ON THE RECEIVER AS SHOWN ON DRAWING 1109105.
2. POSITION THE RECEIVER INSIDE THE SCOREBOARD, ALLOWING THE ANTENNA CONNECTOR TO PROTRUDE THROUGH THE
HOLE. INSTALL THE ANTENNA. REMOVE THE BACKING FROM THE ADHESIVE ON THE VELCRO STRIPS AND STICK THE
RECEIVER ONTO THE BACK SIDE OF THE PANEL.
PRODUCT TYPE:
COLOR SMART TABLES
-REFER TO DRAWING 1109105. THE RADIO CONNECTS DIRECTLY TO DRIVER HARNESS AS SHOWN IN COLOR SMART DETAIL
ON DRAWING 1109105. THE COLOR SMART DRIVER CAN AUTO SWITCH BETWEEN THE WIRED SIGNAL OR RADIO SIGNAL.
TUFF SPORT TABLES
-REFER TO DRAWING 168045 IF BOTH THE RADIO AND HARD WIRE CONNECTIONS ARE NEEDED USING THE RADIO/WIRE KIT.
-REFER TO DRAWING 1109105 IF ONLY THE RADIO CONNECTIONS ARE NEEDED.
