Display Specifications & Setup 5

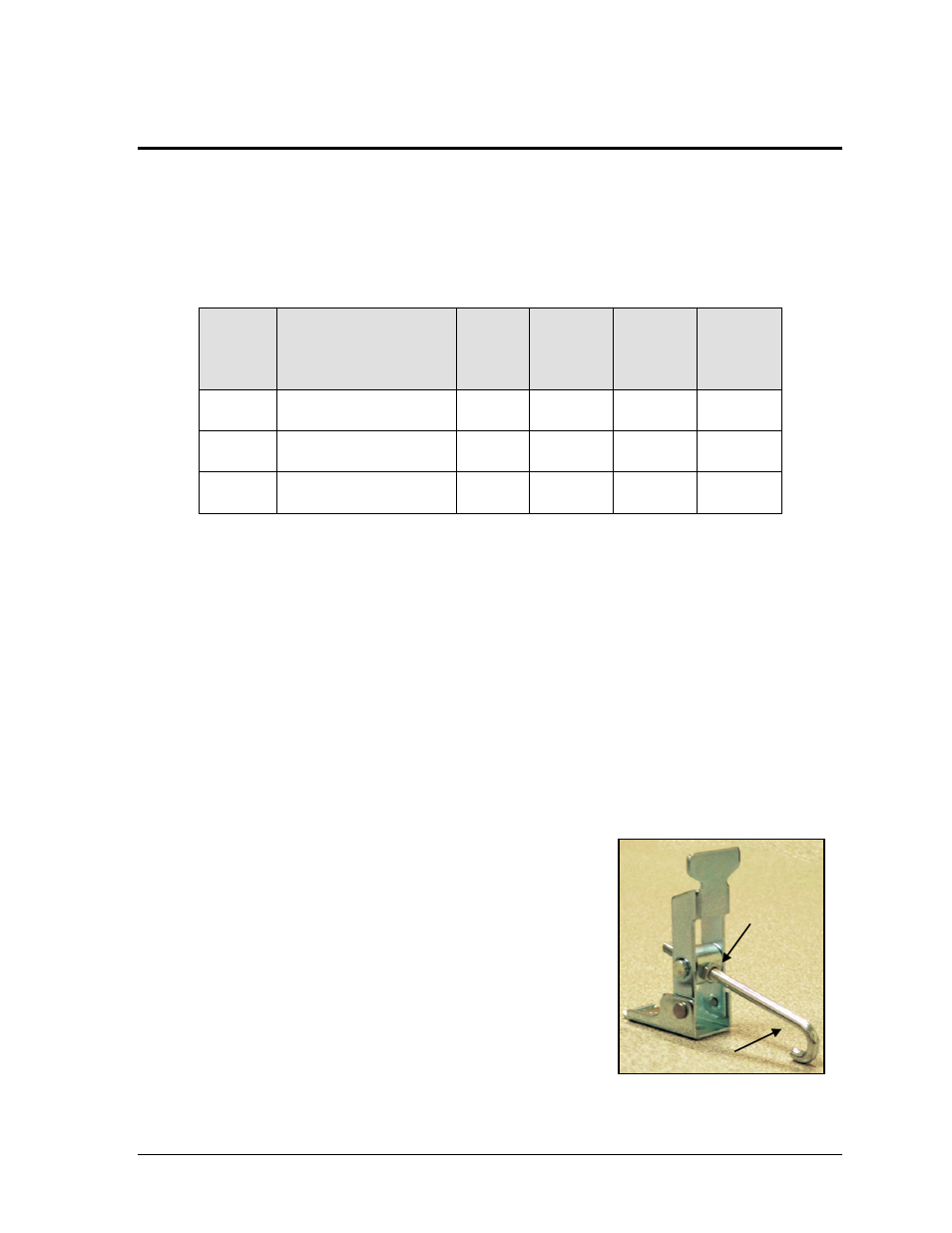

Figure 4: Adjusting Latch Tension
Loosen Nut
Turn Hook
Section 2: Display Specifications & Setup
2.1 Specifications
The table below shows all of the mechanical specifications, circuit specifications, and
maximum power requirements for each model in this manual.
Notes:
1. Power shown includes max load placed on table including convenience outlets.
Refer to Drawing A-210619 for details.
2. Table counter top capacity is rated at 150 lb max.
2.2 Setup
To set up a scorer‟s table:
1. Move the scorer‟s table to the desired location.
If more than one scorer‟s table is to be used as part of a single display face, line the tables
up side by side and use the three metal latches (one above the counter top, one next to the
rear castors, and one on the lower-front of the frame) to link the tables together.
The tension of the latches used to connect multiple
scorer‟s tables is not set at the factory. When engaged,
the latches should create a snug fit. If there is a
noticeable gap between tables, or it is difficult to clasp
the latches shut, the tension can be adjusted as follows:
a. Use a 5/16" wrench to loosen the nut that is
holding the metal hook in place.
b. Turn the metal hook clockwise to give the latch a
tighter fit, or turn the metal hook counterclockwise
to give the latch a looser fit.
c. Make sure the metal hook is pointing downward
and then tighten the nut.
Model
Dimensions:
Height, Width
(including padding),
& Depth
Weight Watts Volts Amps
ST-2000 H 3'0" x W 8'5" x D 3'4"
(914mm, 2565mm, 1016mm)
235 lb
(107 kg)
1440 W 120 VAC 12 A
ST-2001 H 3'0" x W 8'5" x D 3'4"
(914mm, 2565mm, 1016mm)
235 lb
(107 kg)
1440 W 120 VAC 12 A
ST-3001 H 3'0" x W 8'5" x D 3'4"
(914mm, 2565mm, 1016mm)
235 lb
(107 kg)
1440 W 120 VAC 12 A
