Daktronics ST-2000 Tuff Sport & ColorSmart LED Scorer’s Table - Manual (Page 42)

THE CONCEPTS EXPRESSED AND DETAILS SHOWN ON THIS
DRAWING ARE CONFIDENTIAL AND PROPRIETARY. DO NOT
REPRODUCE BY ANY MEANS WITHOUT THE EXPRESSED
WRITTEN CONSENT OF DAKTRONICS, INC.
COPYRIGHT 2012 DAKTRONICS, INC.
DAKTRONICS, INC.
AV
DRAWN: DATE:
SHEET JOB NO: REV
ALL SPORT RADIO

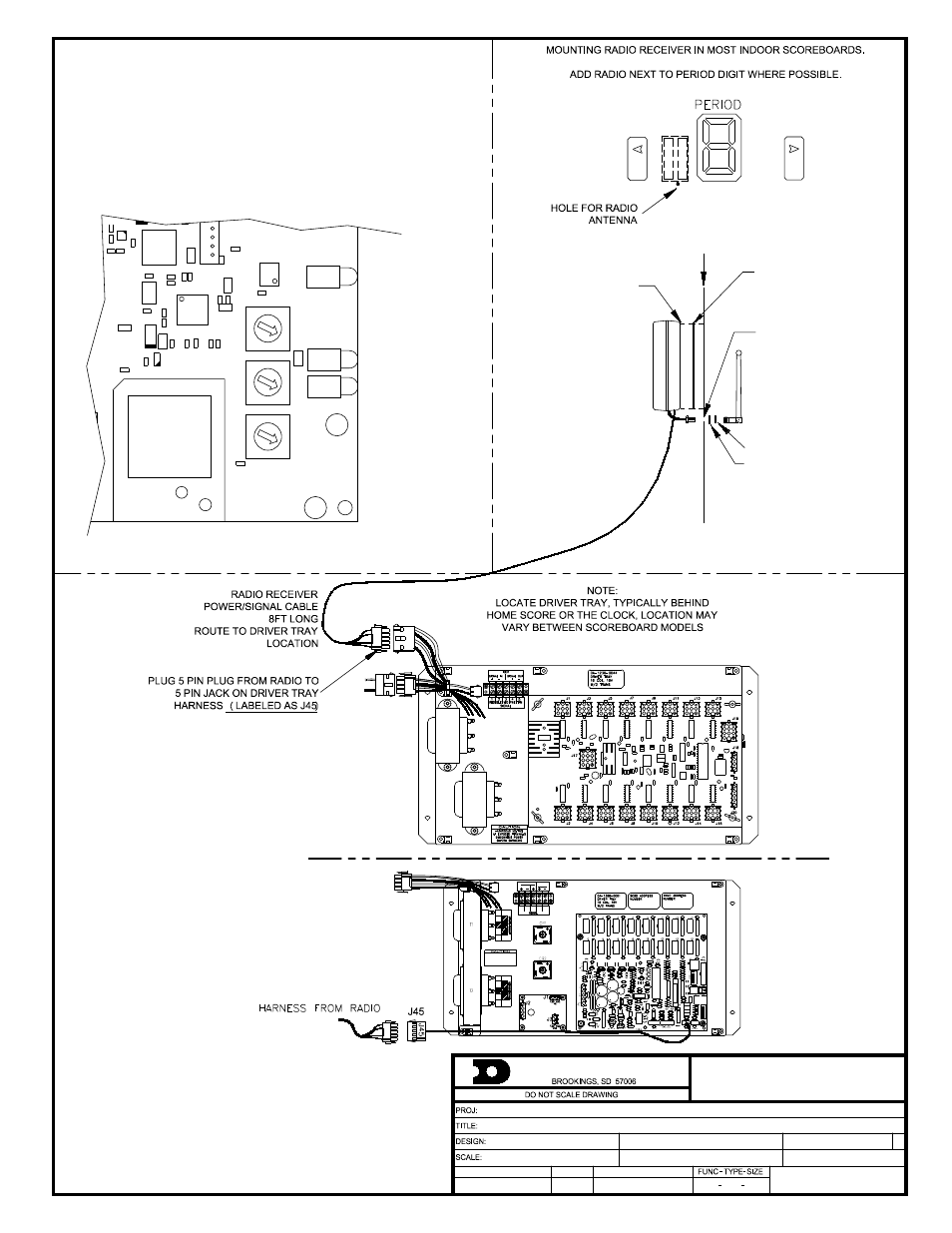

INSTALLATION DIAGRAM; INDOOR SCBD GEN VI RADIO RECEIVER
MMILLER 07 AUG 12
P 1110 F 01 A
NONE
MMILLER
1109105
00
FUNC
CHAN
BCAST
0
1
2 3 4 5 6
7
8
0
1
2
3 4 5 6
7
8
0
1
2 3 4 5 6
7
8
- RADIO SETTING FROM FACTORY IS F=1, B=1, C=1. IF THIS SETTING IS
FINE FOR YOUR FACILITY LAYOUT, INSTALL RADIO INTO DISPLAY.
OR
OPEN RADIO CASE BY REMOVING 4 PHILIPS HEAD SCREWS.
ALWAYS LEAVE FUNCTION = 1, BUT CHANGE THE CHANNEL AND BCAST
DIALS AS NEEDED. USE SMALL FLAT HEAD SCREW DRIVER.
GREEN - POWER LED
RED - DATA LED
AMBER - STATUS LED
9/32" HOLE DRILLED INTO
SCOREBOARD PANEL.
EXTERNAL ANTENNA
ON OUTSIDE FACE
OF SCOREBOARD
A-1654 OR A-3173
FACE SHEET
USE THE 2 PIECES OF
VELCRO, REMOVE
BACKING AND APPLY
PRE ATTACHED
VELCRO
RADIO RECEIVER
NUT
TOOTH LOCK WASHER
B B
CONNECTOR
LABELED "J45"
RADIO PREPARATION
PT CUR. LOOP
SIGNAL IN SIGNAL OUT
TAN 5 VIO 3 4 BLK RED 1 2 PNK
7
WHT 6 BLU
2
1
8
9 PNK 4
3 ORG
BRN TAN
HAZARDOUS VOLTAGE
DISCONNECT POWER BEFORE SERVICING
AT EXPOSED TERMINALS
5 10
6 1
7
8
ORG
3
2
BLU WHT
BRN 10
PNK
TAN 5
4 9
TUFF SPORT &
COLOR SMART
DRIVER DETAIL
TUFF SPORT
DRIVER TRAY
TUFF SPORT
DRIVER TRAY
COLOR SMART
DRIVER TRAY
COLOR SMART
DRIVER TRAY
