Comtech EF Data CSAT-6070 - Manual (Page 53)

5 to 25 Watt Model C-Band Transceiver Revision 0
Installation MN/CSAT6070.IOM

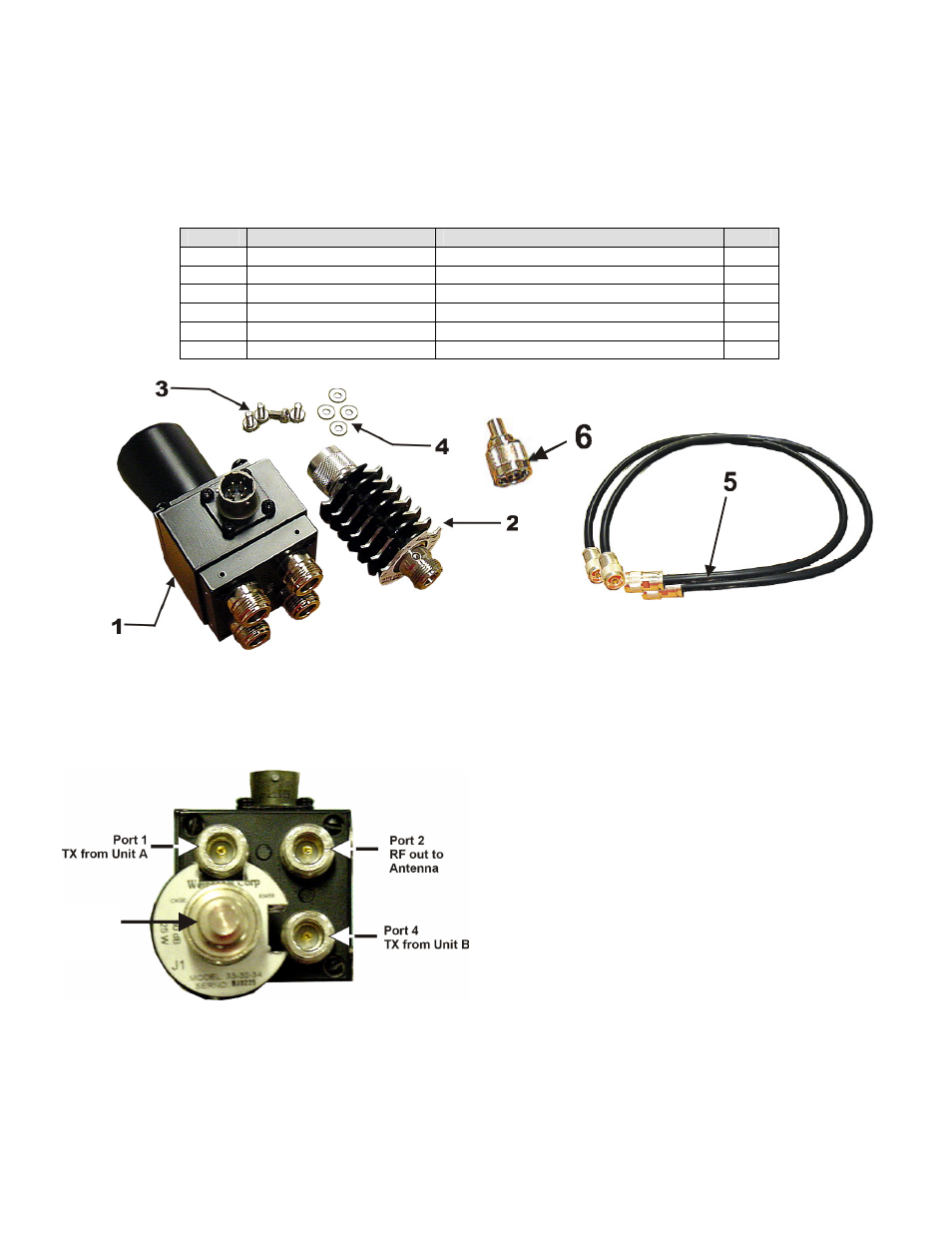

Table 2-12 TX/Remote Switch Assembly, AS/0503
Item Part No. Nomenclature QTY
1 SW/COAX-N-F-Sealed Switch COAX N-FE 1
2 RF/A8430N RF-ATTEN, DC, 30 dB 1
3 HW/M4X.07X8MMPHMS Screw, Panhead 4
4 HW/M4LOCK Washer, Lock 4
5 CA/RF0097 Cable, Output RF 2
6 CN/CXNPLUGCAP Plug Cap, Non-shorting 1
Figure 2-16. TX/Remote Switch Assembly, AS/0503
2.5.2 A
SSEMBLE
TX/R
EMOTE
S
WITCH
, AS/0503
Note: Observe port locations as shown in
Figure 2-17. Refer to Figure 2-16 for parts
reference
Port 3
Plug
1. Connect attenuator (2) to switch (1) Port 3.
2. Ensure that machined grooves of attenuator
allows for the future connection of the RF
cables.
3. Connect the plug termination, (6) to the
attenuator (2).
Figure 2-17. Connections for the TX/Remote
Switch Ports
(Plug Termination and Attenuator Installed)
2–19
