Errata G
Comtech EF Data Documentation Update
Subject: Changes to Section 2.5.5, Assemble LNA Switch Kit
Date: September 15, 2003
Original Document
Part Number/Rev: MN/CSAT607025.IOM Rev 0
Errata
Part Number: MN/C607025.EG0
This information will be incorporated into the next revision.
Change Specifics:
2.5.5 LNA Installation
1. Install gaskets on each port of the switch .
2. Position Low Noise Amplifiers (LNAs) on Port 1 and Port 3 of switch .
3. Secure each LNA with 10 bolts, lock washers and flat washers.
4. Position adapter, with termination, on Port 2 and secure with 10 bolts, lock washers,
and flat washers.
5. Position filter on Port 4 of switch and secure
with four bolts, lock washers, and flat
washers, two bolts at each end.
6. Set assembly aside for later installation.

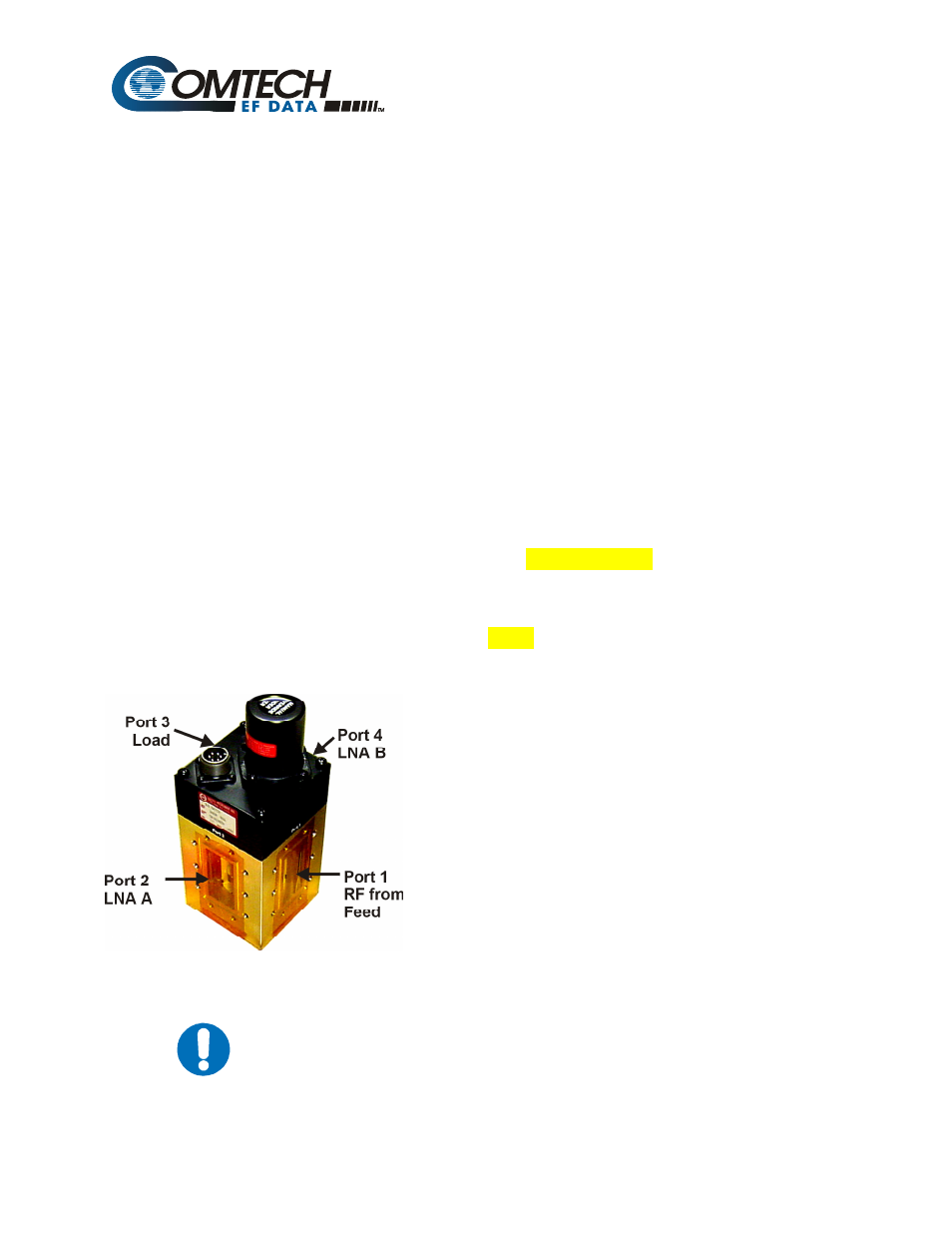

Figure 2-23. Switch Port Locations
IMPORTANT If using a transmit reject filter, ensure that the OUTPUT flange of the filter is against
switch.
