5 to 25 Watt Model C-Band Transceiver Revision 0
Installation MN/CSAT6070.IOM
15. Mount the unit as follows:
16. Loosely install four bolts (2, Figure 2-2), four flat washers (4), and four split washers
(6) into bolts hole located on the rear side of the unit.
17. Position unit against the bracket and hook the bolts into the key slots.
18. Tighten bolts to secure.

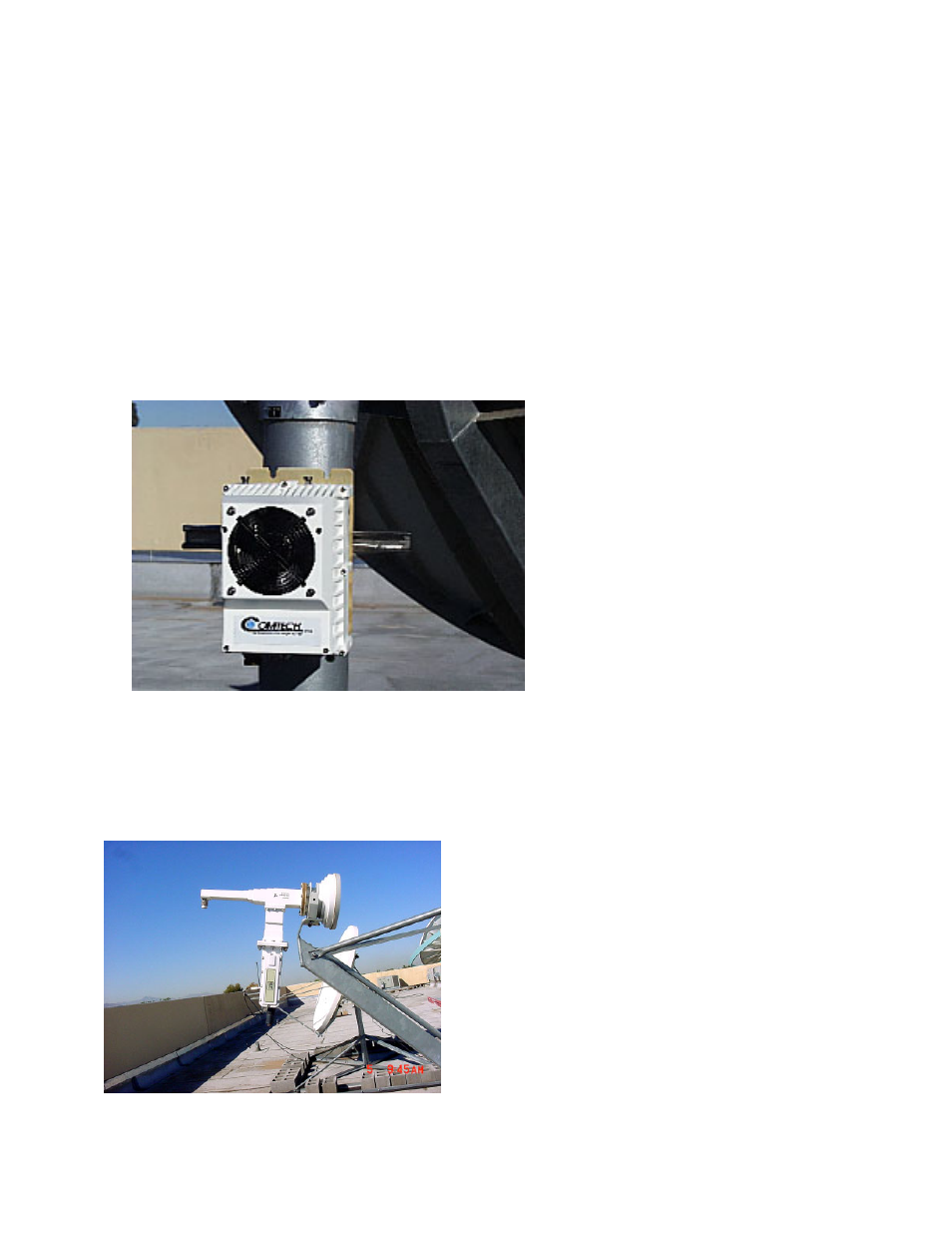

Figure 2-8. Mounted CSAT Unit
2.4.3 LNA I
NSTALLATION
The LNA can be mounted at three different options (Customer Select):
• Spar Mount, 1 X 2 Antenna, Mounting Kit P/N,
AS/0422
• Spar Mount, 1.75 X 4 Antenna, Mounting Kit,
P/N AS/0501
• Feed Horn Mounting Kit, P/N AS/0502
2–9
