7.4 Hub-Spoke Configuration
Remote Site 1
Internet
WAN
LAN
Hub Site
1
M
bp
s
1 M
b
p
s
1 M
bp
s
1 M
bp
s
1
M
bp
s
1
Mb
ps
8
M
bp
s
5
M
bp
s
2
M
bp
s
8 M
bp
s
5 M
bp
s
2 M
b
p
s
WAN
LAN
Remote Site 3
Remote Site 2
WAN
LAN

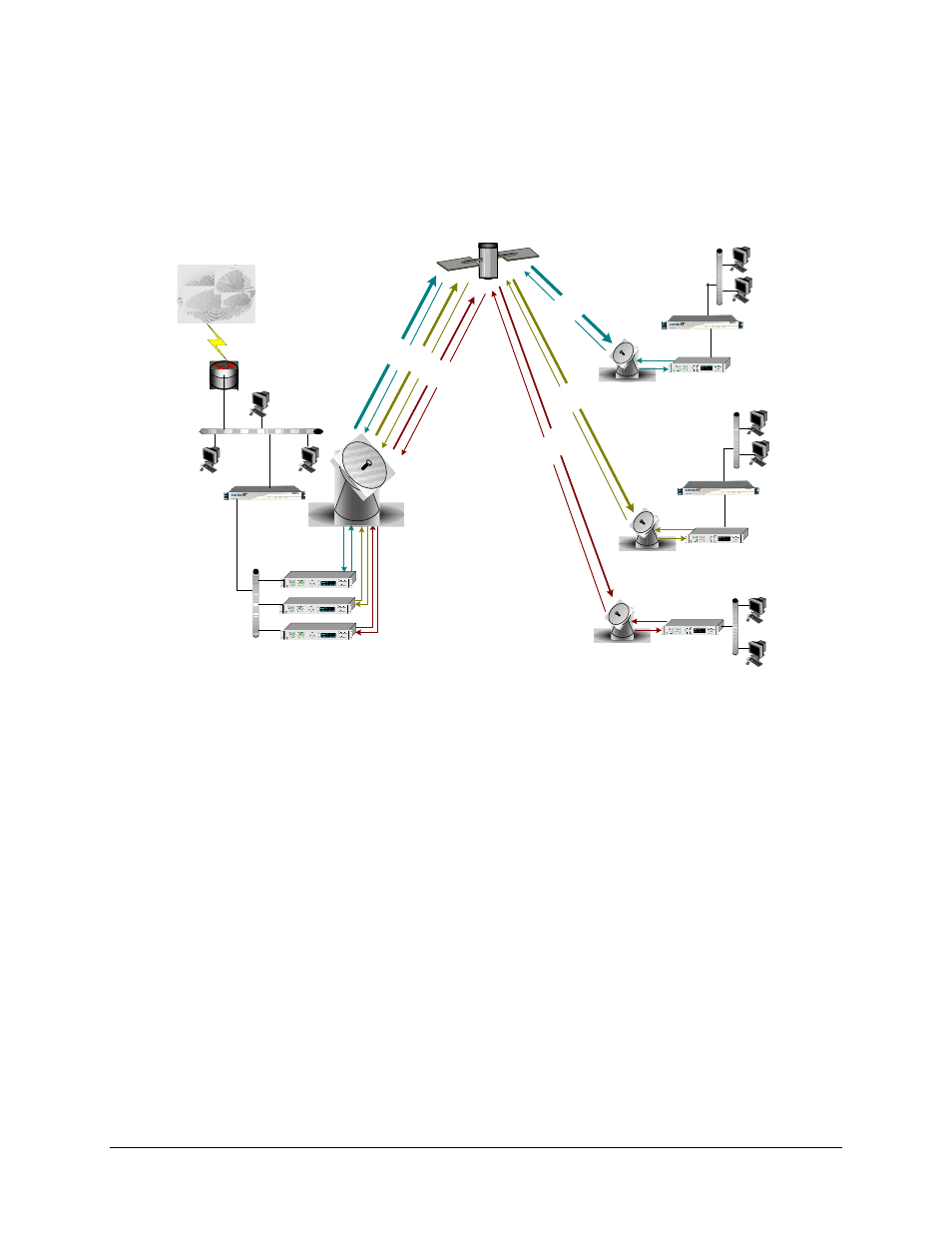

The Hub-Spoke differs from the Point-to-Multipoint configuration in that there are separate
satellite links between the Hub and each Remote site, but a single turboIP is still used at the Hub.
Also note that there is no turboIP at Remote Site 3, this is to illustrate that turboIPs’ can be
deployed at Remote Sites at a future date and still be compatible with the Hub. Sites without a
turboIP would only get partial benefit for turboIP TCP acceleration.
