ADSL Router User Manaul
2
LED Color Status Description
Unlit Power off or initial self-test of the unit is OK.
Blinking When software downloading or updating operation
parameters located in FLASH memory is in progress.
DIAG Green
Solid Initial self-test failure or programming FLASH memory
failure.
Unlit Power off. PWR Green
Solid Power on.
Note: The USB LED is useful for the model with USB interface only.

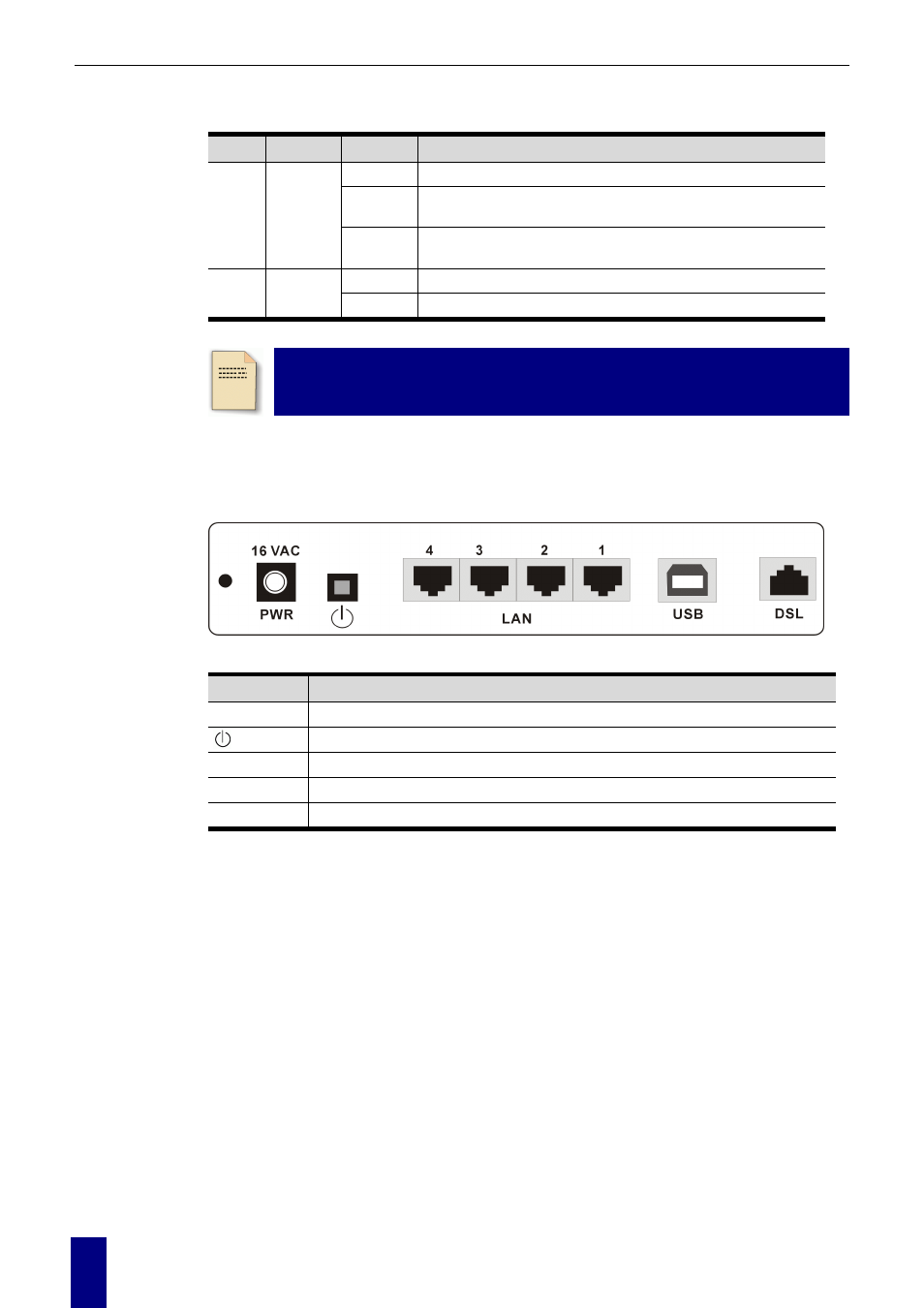

Rear Panel
The following figures illustrate the rear panel of your ADSL Router (with USB interface and without
USB interface).
Connector Description
16VAC
16VAC Power connector
Power switch
LAN 1- 4
Ethernet RJ-45 connector
USB USB connector (for the model with USB interface only)
DSL
RJ-11 connector
