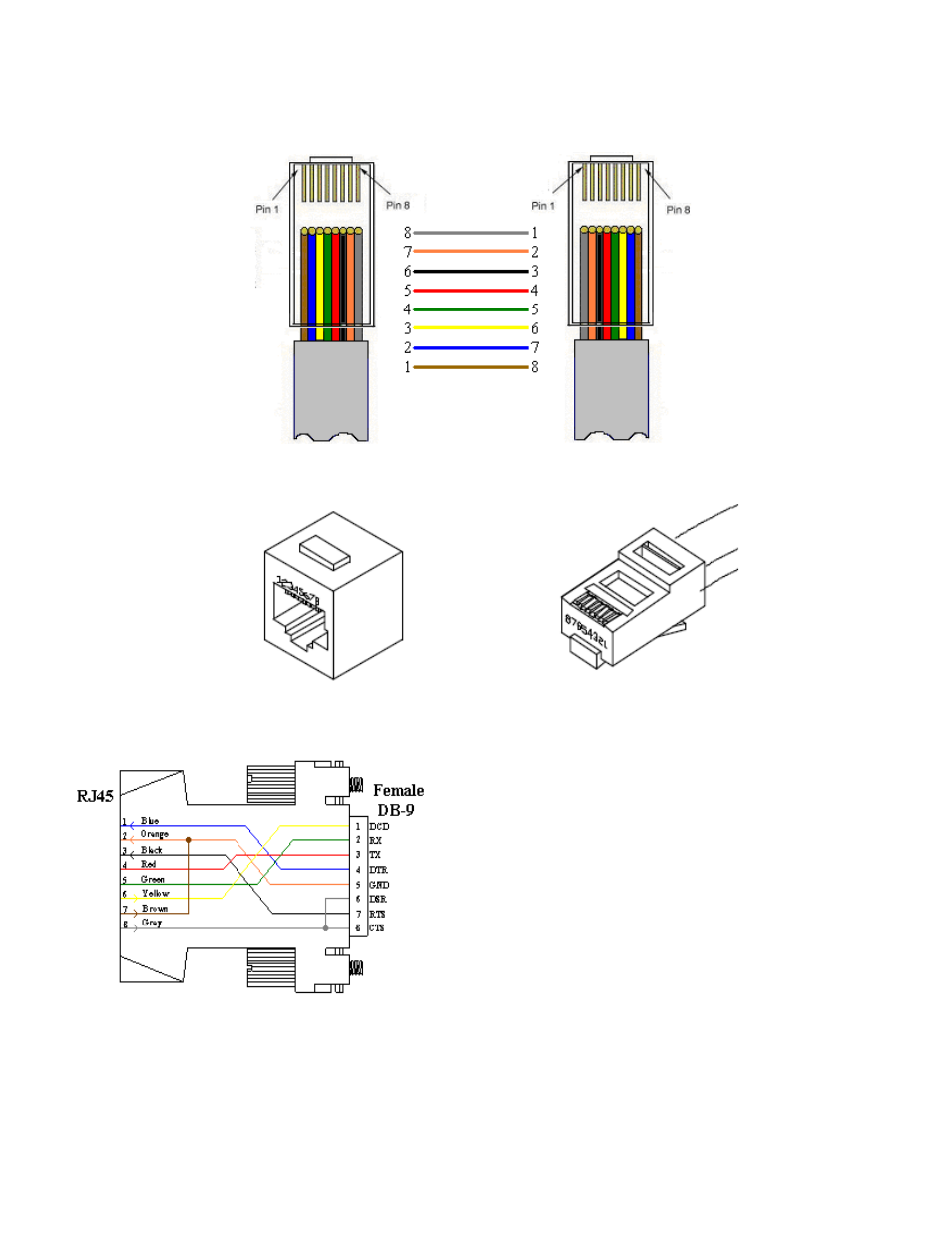

RJ08X007 Standard Rollover Cable – RJ45 to RJ45

Serial 2: RJ08X007 Pin out

Serial 3: RJ45 Receptacle & Plug

Adapters

Serial 4: 9FRJ45PC-1 Adapter Pin Out

(Use with RJ08X007 Cable and B/C switch in “B”)
