SPBD-155E4J1RD

DELTA ELECTRONICS, INC.

1 Revision:

S1

04/11/2007

www.deltaww.com

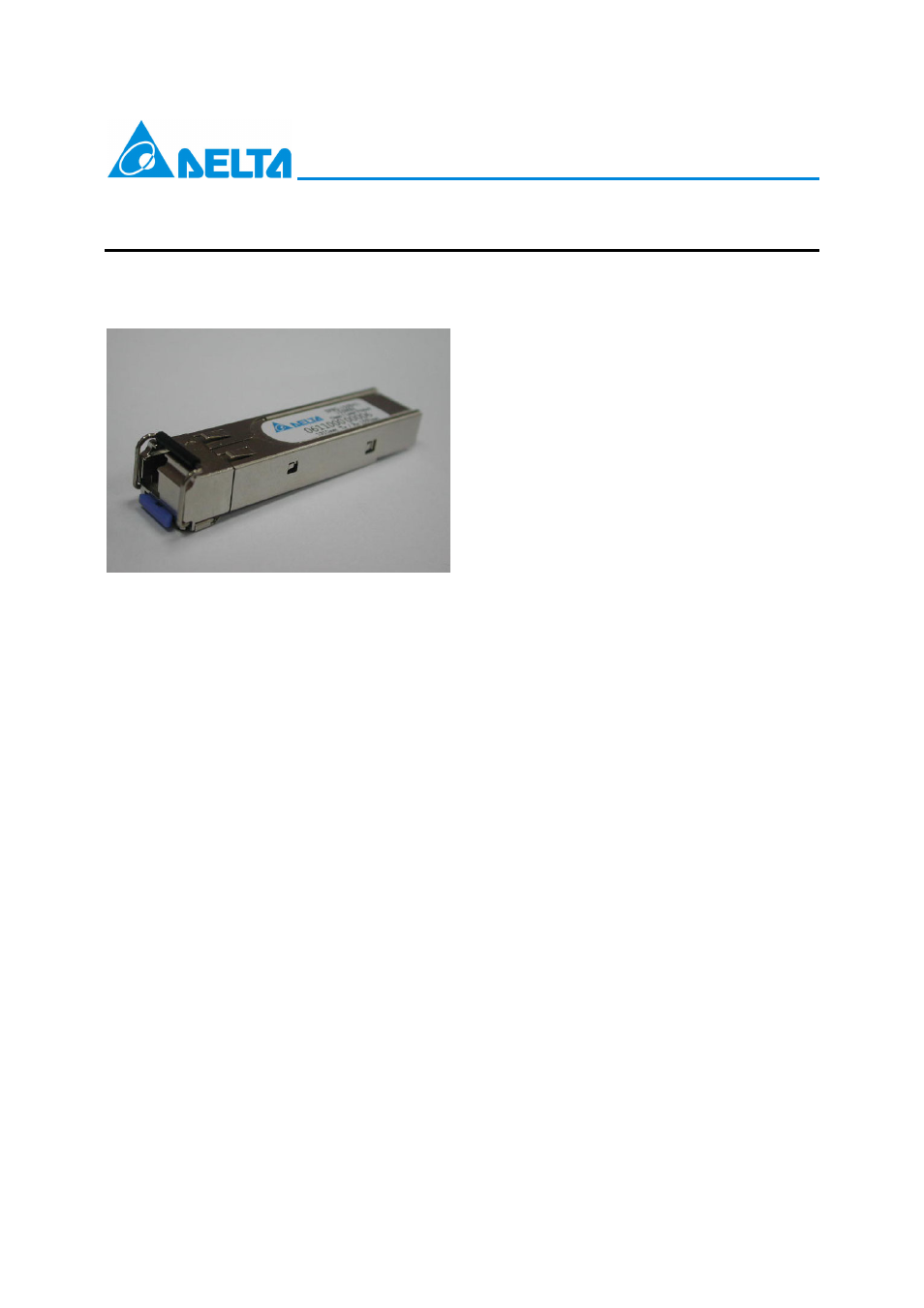

Intelligent SFP Bi-Directional Transceiver Module
for Fast Ethernet, ATM, SONET OC-3/SDH STM-1

FEATURES

RoHS compliant

Digital Diagnostic SFF-8472, Rev. 9.5 MSA
compliant

Simplex LC connector with 1310nm
Transmitter and 1550nm Receiver

Single + 3.3V power supply and TTL logic
interface

Bellcore GR-468 compliant

Laser class 1 product which comply with the
requirements of IEC 60825-1 and IEC 60825-2

Description

The SPBD-155xxxxx series are hot pluggable

3.3V Small-Form-Factor (SFP) Bi-Directional
transceiver module designed expressly for
high-speed communication applications that
require rates of up to 155Mbit/sec. It is compliant
with the Fast Ethernet, ATM, SONET OC-3/SDH
STM-1 standards, as well as the SFP Multisource
Agreement (MSA).


The SPBD-155xxxxx transceivers provide with

the LC receptacle that is compatible with the
industry standard LC connector. The transceiver is
also compatible with industry standard RFT
connector and cage. It also includes a LOS (Loss
Of Signal) circuit that provides a TTL logic-high
output when an unusable optical signal level is
detected.


The module includes 1310nm un-cool FP laser,

InGaAs PIN, Preamplifer and WDM filter in a
high-integrated optical assembly for high-density
system application. The SFP Bi-Directional
transceiver can upgrade transmission capacity very
convenient without installing new fibers.

Application

TTC TS-1000

ITU-T G.985

IEEE 802.3ah 100BASE-BX/ Fast Ethernet

SONET OC-3/SDH STM-1

FTTx WDM Broadband Access

Switch to switch/backbone interface

Performance

SPBD-155E4J1RD data link up to 15km in
9/125um single mode fiber.
