348
Practical hints
Fuses
5

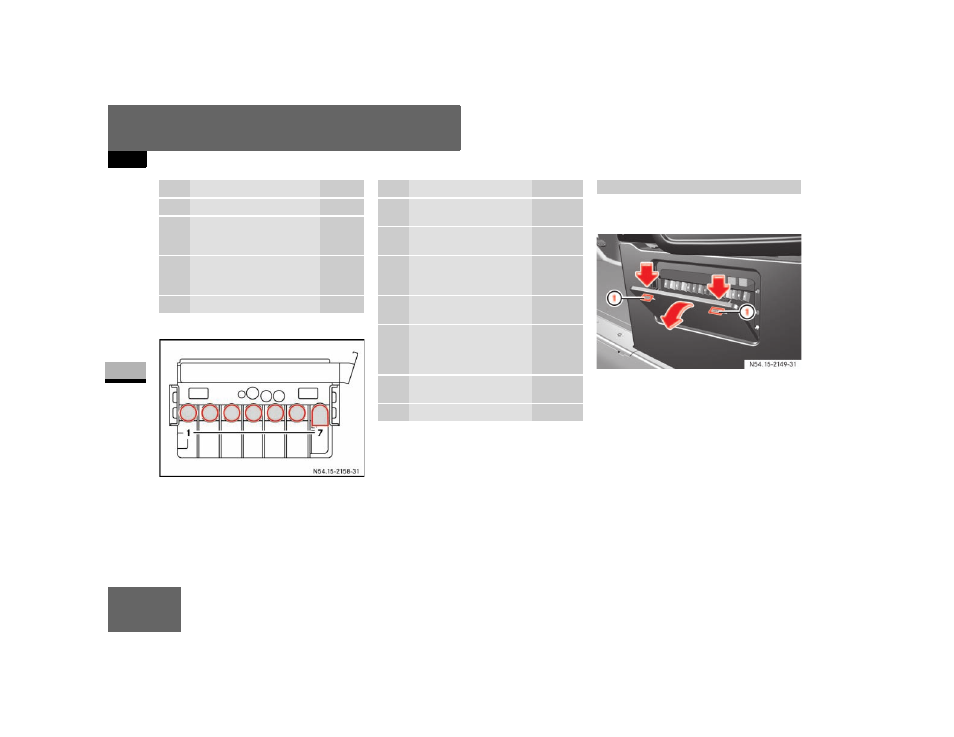

Preliminary fuse box in the battery recess in
the driver’s footwell F59
The fuse box is located in the base of the
driver’s seat on the outboard side.
1 Latching springs
̈ To open: adjust the seat to its highest
position ( ୴ page 69).
̈ Press both latching springs 1 down
and remove the cover.
̈ To close: attach the cover at the bot-
tom and fold it closed.
The cover must engage.
No. Consumer Amp.
15 Non MB-body electrics 10 A
16 Heating, rear heating/
Tempmatic (air-conditioning
system), front/CD-player*
10 A
17 Motion detector*/con-
venience interior lighting*/
satellite radio*
10 A
18 Air conditioning in the rear* 7.5 A
No. Consumer Amp.
1 Pre-glow relay/secondary
air pump
80/40 A
2 Engine fan air-conditio-
ning system
80 A
3 Signal acquisition and ac-
tuation module SAM/fuse
and relay block SRB
80 A
4 Auxiliary battery* in the
engine compartment
150 A
5 Terminal 30 fuse boxes, si-
gnal acquisition and actu-
ation module SAM/fuse
and relay block SRB
150 A
6 Connecting point in
driver’s seat base
Brücke
7 Heater booster (PTC) 150 A
Fuse box in the driver’s seat
N54.15-2149-31
