Operation
Travis Industries 9 3 5 0 8 1 0 2 0 9 1 0 0 2
Safety Notice
Read this entire manual (especially the ÒSafety PrecautionsÓ on pages 2 and 3)
before using this stove. Failure to follow the instructions may result in property
damage, bodily injury, or even death.

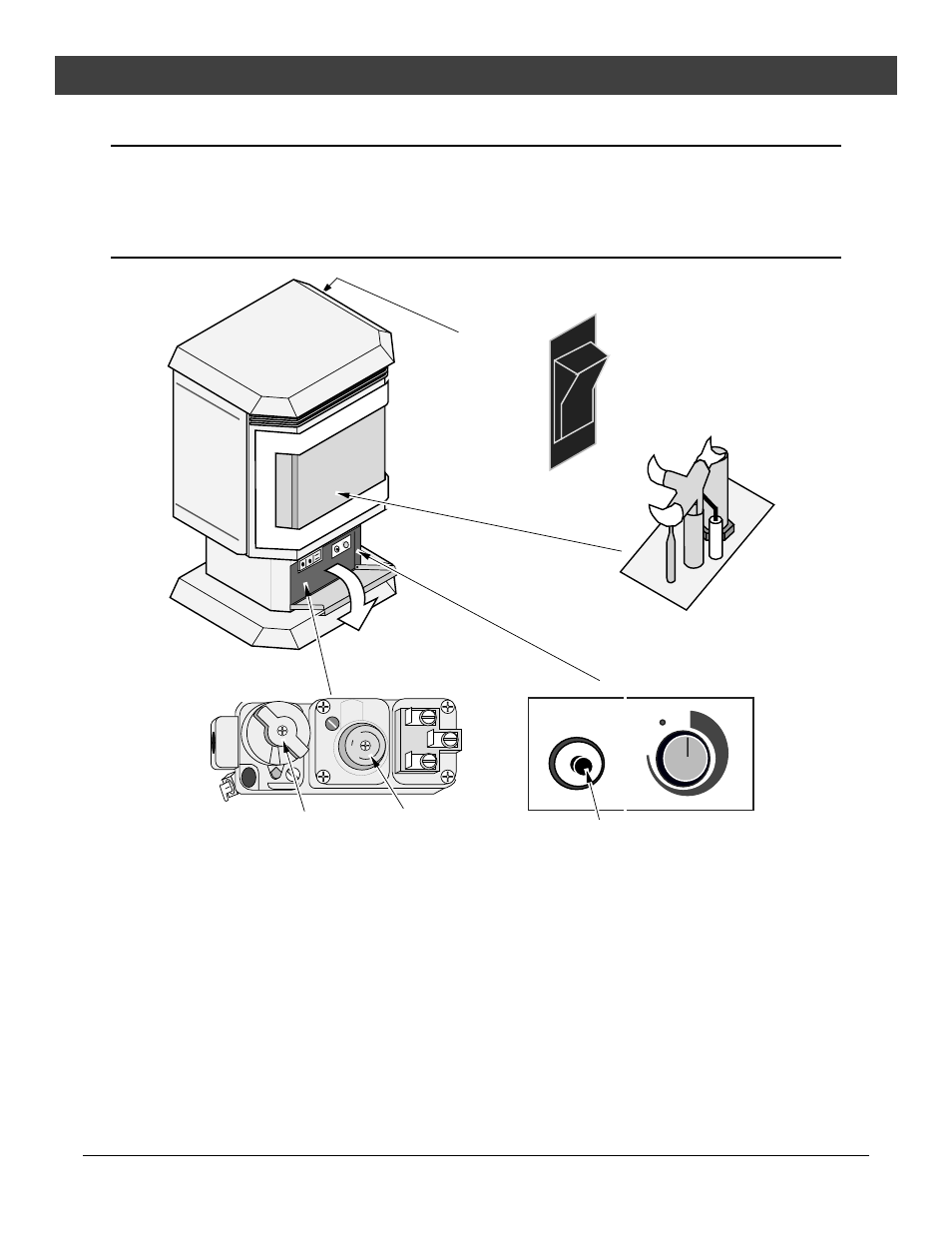

Location of Controls
Swing the control cover
down to access the gas control
valve, igniter, and blower control.
Gas
Control
Valve
PILOT ADJ
VENT
T O L PI
ON
OFF HI
LO
Gas Control
Knob
Flame Adjust
Knob
ON/OFF
Switch
The on/off switch is
located on the
back of the heater.
The Pilot Flame
can be found below
the back log.
O
F
ON
F
Optional Blower
Control
BLOWER
LO
OFF
HI
PILOT
IGNITER
Pilot Igniter
On/Off Switch This control is used to turn the main burner on and off.
Gas Control Knob This knob is used to control gas to the heater and for starting the pilot.
There are three positions, ON, OFF, & PILOT. The pointer directly below
the knob indicates the position this knob is in.
Flame Adjust Knob This knob controls the flame height from low (ÒLOÓ) to high (ÒHIÓ). The
pointer to the upper left of the knob points to the position this knob is in.
Pilot Igniter The pilot igniter is used only to start the pilot. When pressed, it sends an
electrical charge to the pilot assembly. This creates a blue spark directly
next to the pilot, igniting the pilot flame.
Blower Knob This knob controls the speed of the internal convection blower that
pushes the heated air into the room.
? If using a remote control or thermostat, the On/Off Switch must be left ÒONÓ. Turning the On/Off
Switch ÒOFFÓ will keep the heater off always.
