USB-Link 2
9 Technical Guide

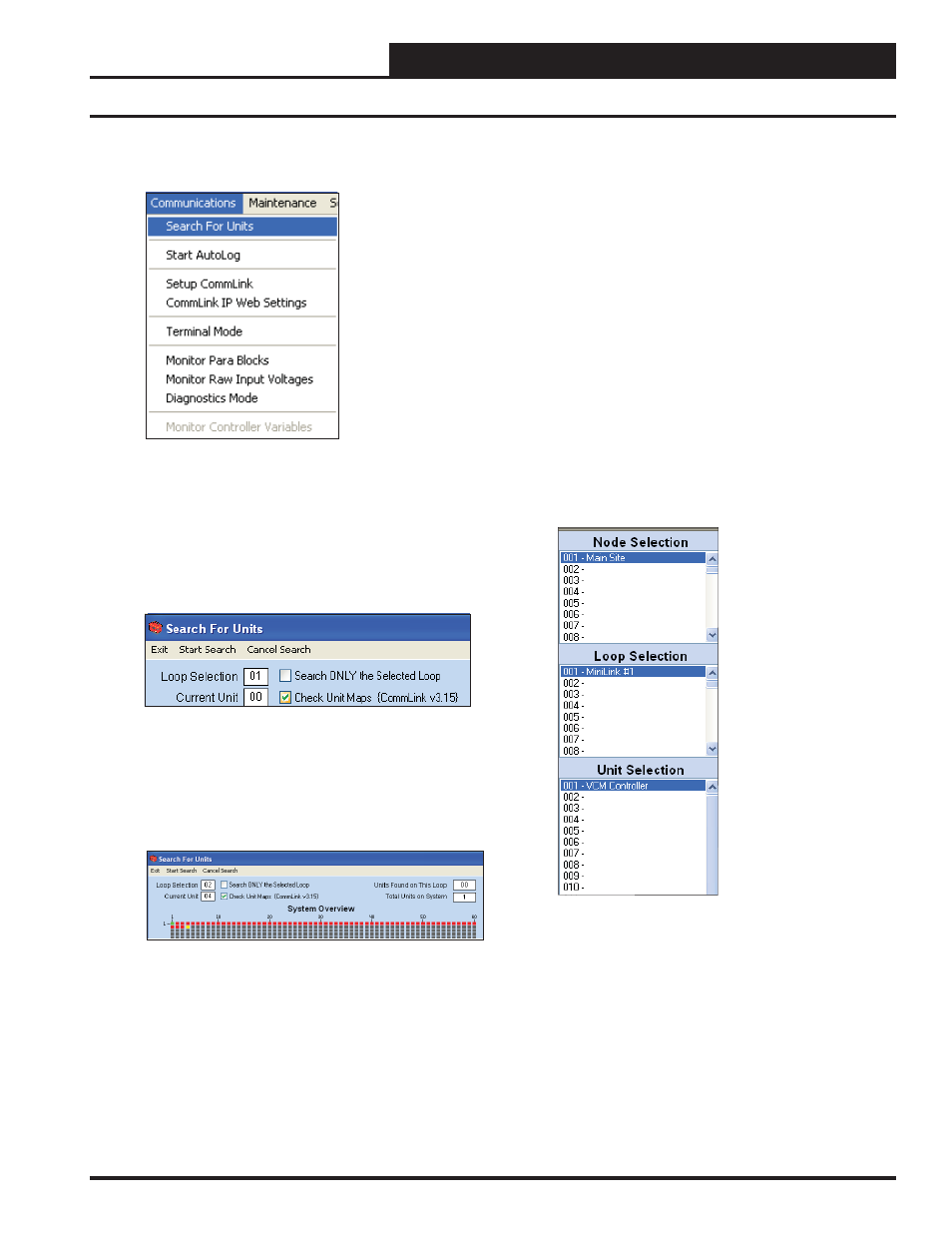

12. From the menu on the main toolbar,
select .
13. The Search For Units Window will appear. If you haven’t
performed a previous search, the Loop Selection fi eld
will read 01 and the Current Unit will read 00. You can
perform a selective search by entering the loop number
you would like to search and checking Search ONLY the
Selected Loop. The Check Unit Maps box will already be
checked. Do not deselect this box. Deselecting it will cause
the search not to work.
14. Click to initiate an automatic
detection of all installed controllers on your system.
15. If everything is working correctly, Units Found on this
Loop should increment. You will also see green boxes
indicating units that have been found.
Prism 2 Setup Instructions
16. If Units Found on this Loop stays at zero, check the
wiring to the USB-Link 2 and the controller and/or read
through these directions again to make sure all steps were
followed. Refer to the Troubleshooting Section in the back
of this guide for further help.
17. To stop a search, click .
18. Once you are done searching for units, close out of the
window or click .
19. A window will pop up that asks, “Do you want to save
the search results?” Click if you wish to save the
results. Click if not.
20. You can now access any installed unit from the Main Prism
2 Screen by selecting a loop from the Loop Selection
Window with a single-click and by selecting the unit from
the Unit Selection Window with a double-click.
