3 j7 - com0 rs232/422/485 front panel port, 4 j901 – front panel vga de-15 female port, 6 pcb planar access ports – Artesyn iVPX7225 RTM Installation and Use (April 2015) User Manual

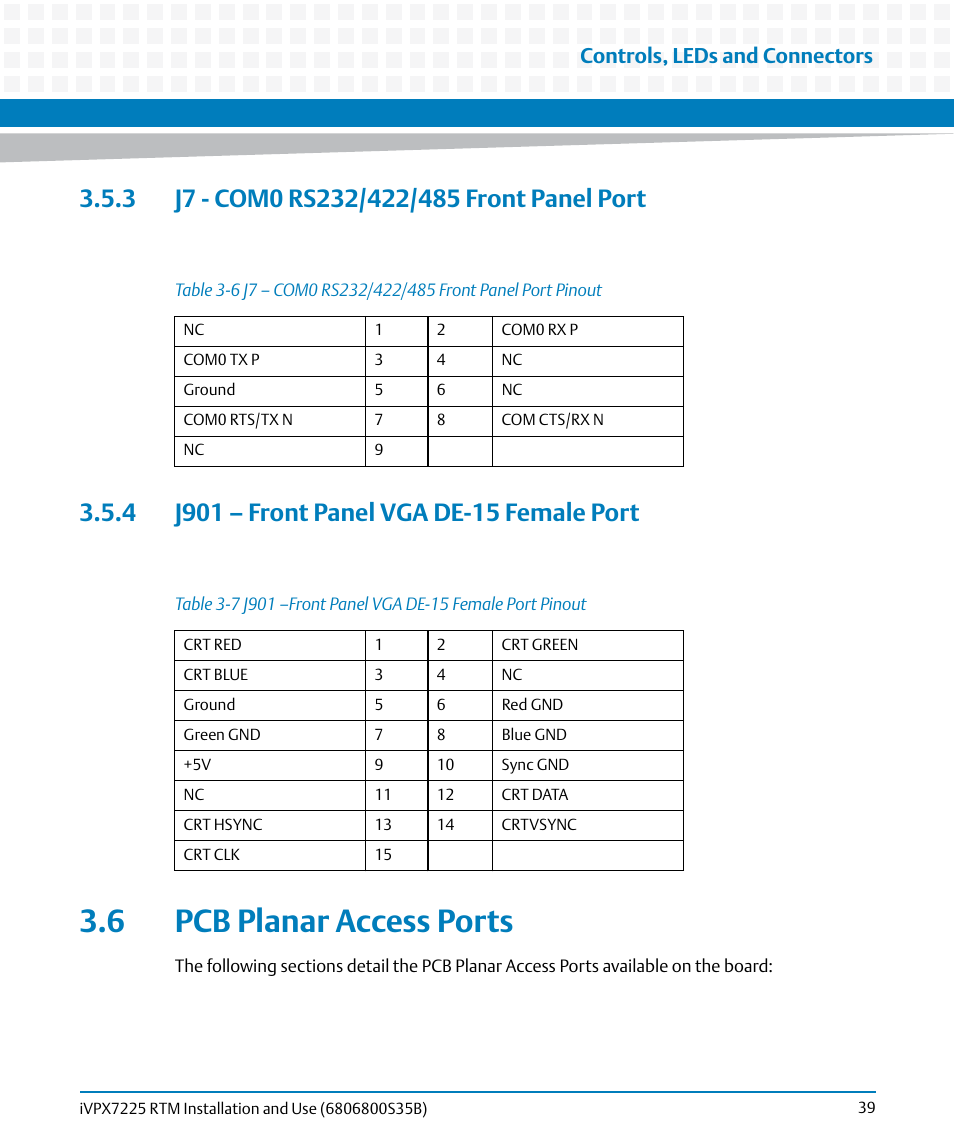

Page 39: Table 3-6, J7 – com0 rs232/422/485 front panel port pinout, Table 3-7, J901 –front panel vga de-15 female port pinout, Controls, leds and connectors
3 j7 - com0 rs232/422/485 front panel port, 4 j901 – front panel vga de-15 female port, 6 pcb planar access ports | Table 3-6, J7 – com0 rs232/422/485 front panel port pinout, Table 3-7, J901 –front panel vga de-15 female port pinout, Controls, leds and connectors | Artesyn iVPX7225 RTM Installation and Use (April 2015) User Manual | Page 39 / 56 See also other documents in the category Artesyn Equipment:
