Page 23: Hardware, Chapter 2
Chapter 2
Centellis 2000 User Card-10GE Installation and Use (6806800H33C)
23
Centellis 2000 User Card-10GE Hardware
2.1
Overview
The Centellis 2000 User Card-10GE is compliant to PICMG 3.0 R3.0 (AdvancedTCA). The shelf
manager and hub board is equipped with two backplane connectors.
To prevent connector damage the alignment pin offers a guide rail to the slot and a coding
mechanism to ensure the installation of the board in the matching slot.

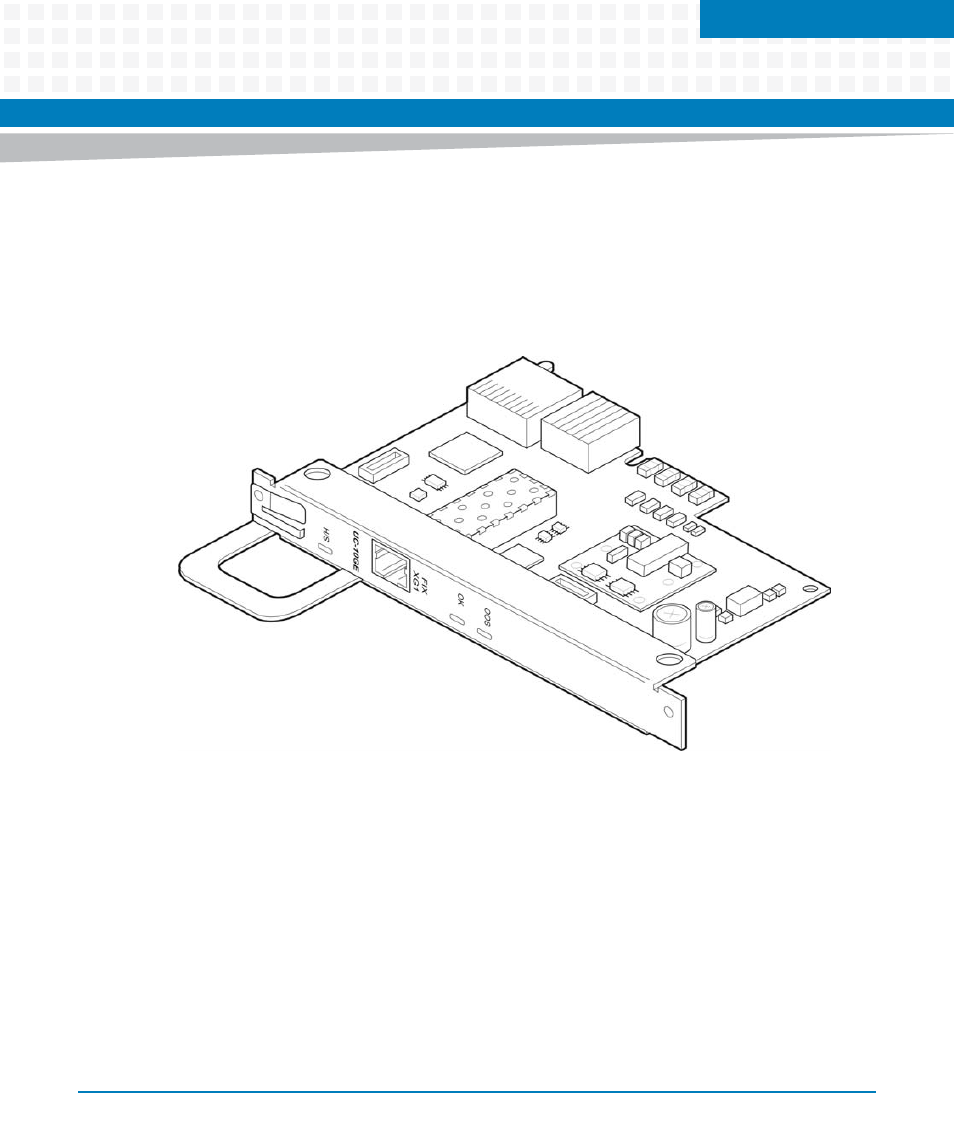

Figure 2-1
Hardware
