UM025801-1112 OCD Driver Installation on Windows Vista Systems
Z51F3221 Development Kit
User Manual
40
Appendix B. OCD Driver Installation on
Windows Vista Systems
The driver programs for the Z8051 On-Chip Debugger are copied to the development PC
during the software and documentation installation. In the following procedure for PCs
running Windows Vista 32- and 64-bit operating systems, ensure that the target side of the
OCD will remain unconnected while you install these drivers.
1. Connect the OCD hardware to the USB port of your PC by connecting the A (male)
end of one of the two USB A (male)-to-Mini-B cables with the development PC’s
USB port. Connect the Mini-B end to the OCD device.
2. After the PC detects the new hardware, it will display the Found New Hardware Wiz-
ard dialog box, shown in Figure 34. Click Locate and install driver software (rec-
ommended) .
3. Depending on your development PC’s User Account Control settings, Windows may
ask for permission to continue the installation. Click Continue .

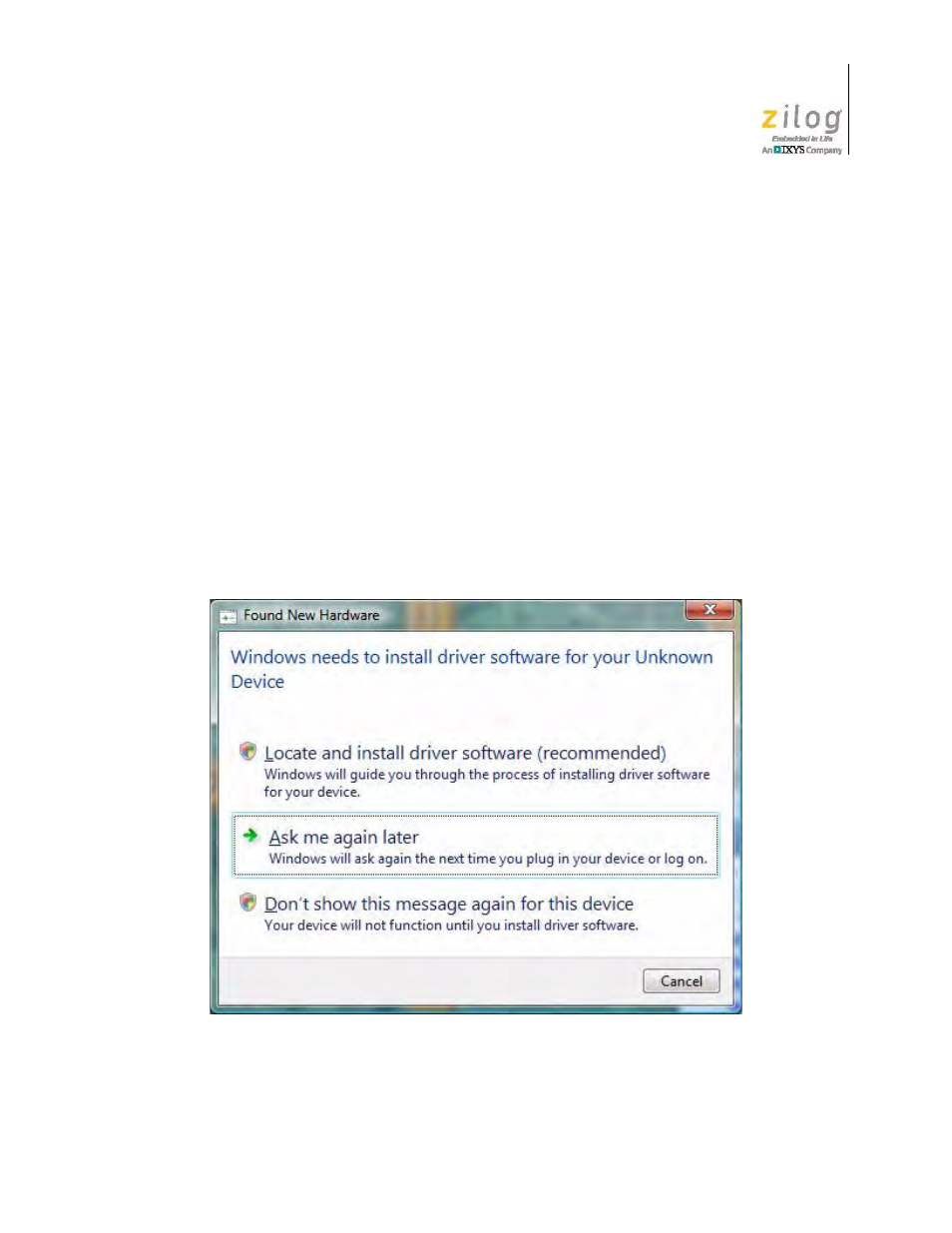

Figure 34. Found New Hardware Dialog, Windows Vista
