Front Panel Control and Connections

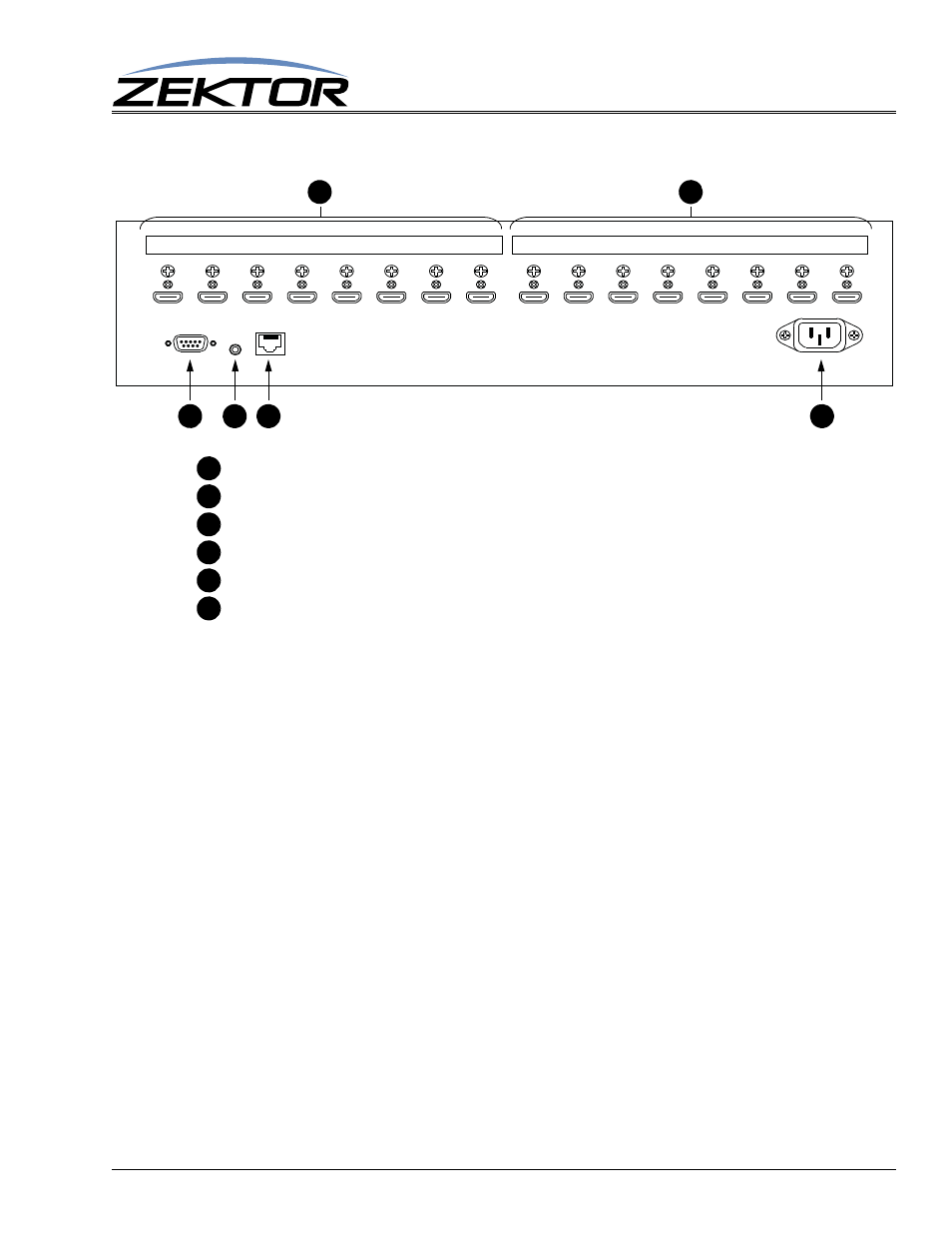

Rear Panel Connections
HDMI inputs.
HDMI outputs.
RS-232 connection.
Hardwired IR jack. Optical isolated, polarity insensitive, 3V to 15V levels.
TCP/IP connection.
Power receptacle.
INPUT-1
INPUT-2
INPUT-3
INPUT-4
INPUT-5
INPUT-6
INPUT-7
INPUT-8
OUTPUT-8
OUTPUT-8
OUTPUT-8
OUTPUT-8
OUTPUT-8
OUTPUT-8
OUTPUT-8
OUTPUT-8
RS-232
WWW.ZEKTOR.COM
SAN DIEGO, CA
MADE IN USA
~110-240V
.45A MAX
50-60 Hz
IR
TCP/IP
