14 ClarityHD8x8 Serial Protocol, Version 1.1, 6/7/13

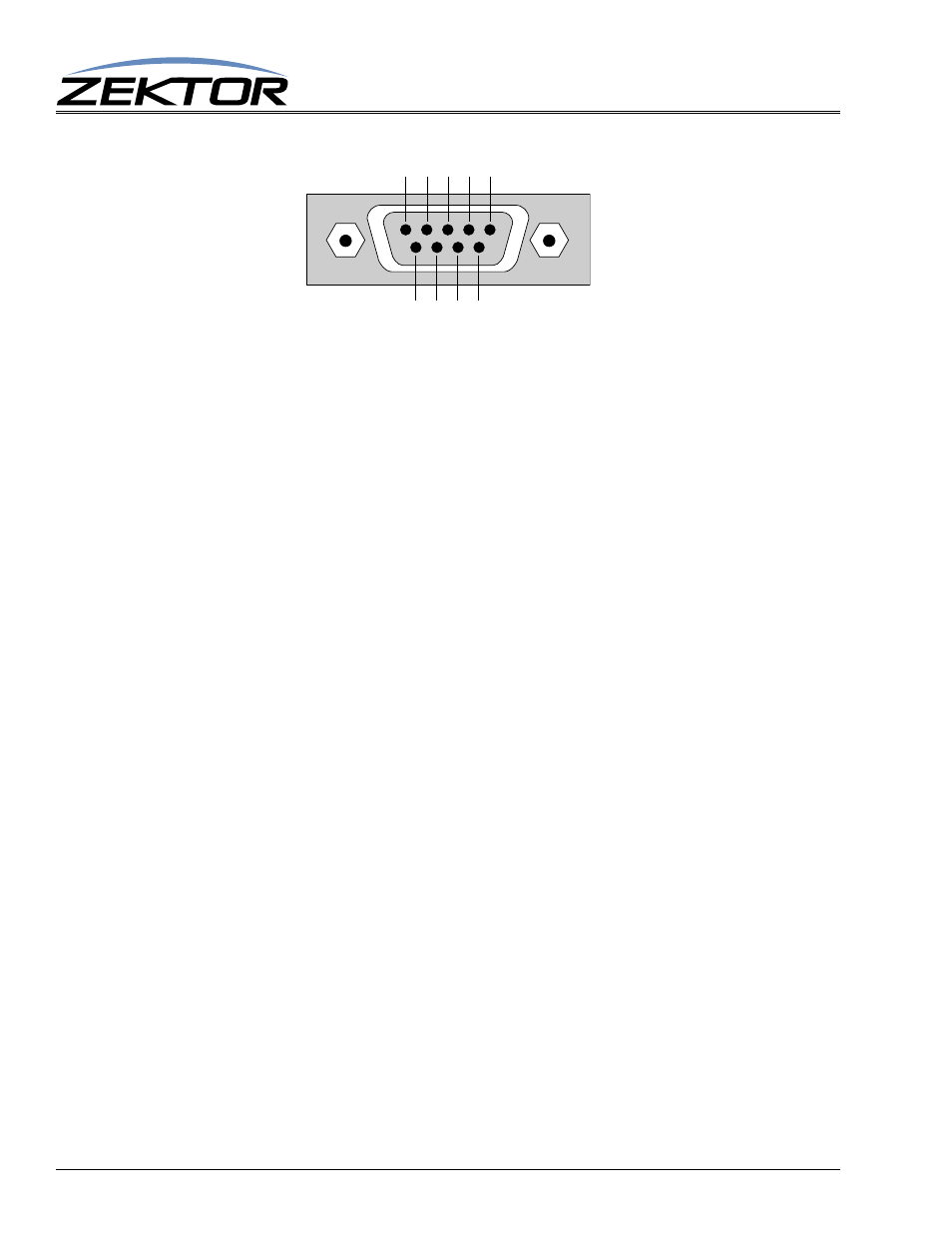

RS-232 / TCP/IP Port Hardware
Pin definitions
1 - No Connect 6 - No Connect
2 - TX 7 - No Connect
3 - RX 8 - No Connect
4 - No Connect 9 - No Connect
5 - GND
Port settings used by the ClarityHD8x8
Baudrate: 19200
Data Bits: 8
Stop Bits: 1
Parity: NONE
Timing information (unless specified otherwise by a command’s description)
Min character to character time: 0ms
Min line to line time: 0ms
Min time between commands: 0ms
Max time to respond to a request: 100ms
