10 ClarityHD8x8 User Guide, Version 1.1, 6/7/13

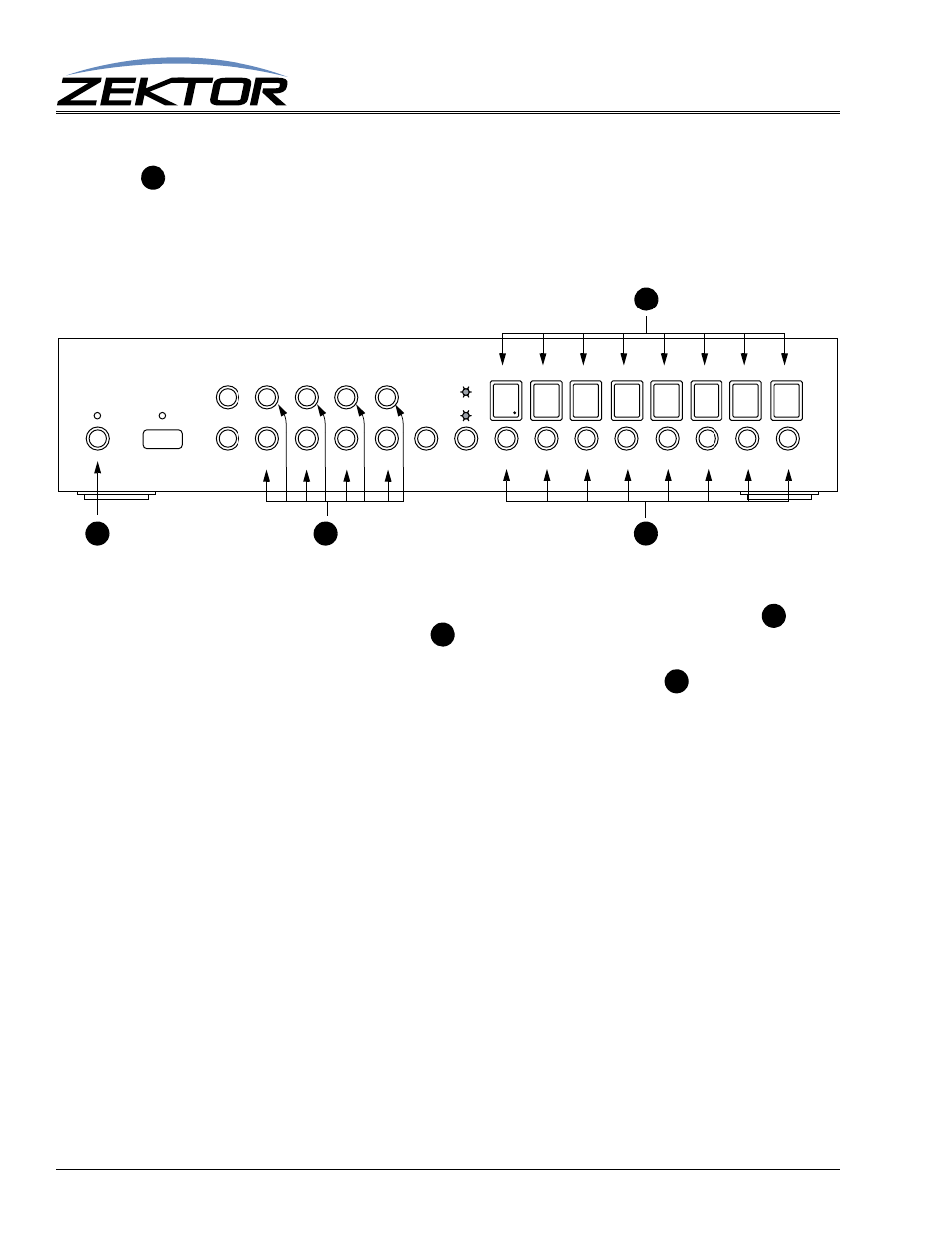

Front Panel Control and Connections
Turning the ClarityHD8x8 on or off
To turn the ClarityHD8x8’s power on, press the POWER toggle button.
To turn off the ClarityHD8x8’s power, press AND HOLD the power button for 2 seconds, and the
ClarityHD8x8 will power down.
Mapping an input to an output zone
To map any input to any zone (output):
1 Select the zone or zones to be mapped by pressing one or more of the zone buttons . When
a zone is selected the zone’s LED will flash and its decimal point will light up. By press-
ing a flashing zone’s button again, you can unselect the zone.
2 Once a zone (or zones) have been selected, pressing an input button , maps the chosen
input to the selected zone(s).
3 The zone LED(s) will stop flashing, but will remain selected, (the decimal point will remain
lit). To remap the currently selected zone(s) to a different input, simply press another input
button.
Audio and video inputs will only change when the proper VID and AUD LED s are lit, see the next section
on audio / video break away for more information.
A
AUDIO VIDEO MATRIX SWITCH
AUD
VID
MEM 1 2 3 4
CLR 5 6 7 8 ENT 1 2 3 4 5 6 7 8
A C
D
B
C
D
B
