VEC-412K Owner's Manual Rapid Battery Charger/Conditioner Kit
22
is programmed by placing jumpers over Headers HD4 and HD5 as shown in
Table 2.
Charge Rate Current HD4 HD5
250 mA 1-2 2-3
500 mA 1-2 1-2
1,000 mA 2-3 1-2
Table 2.

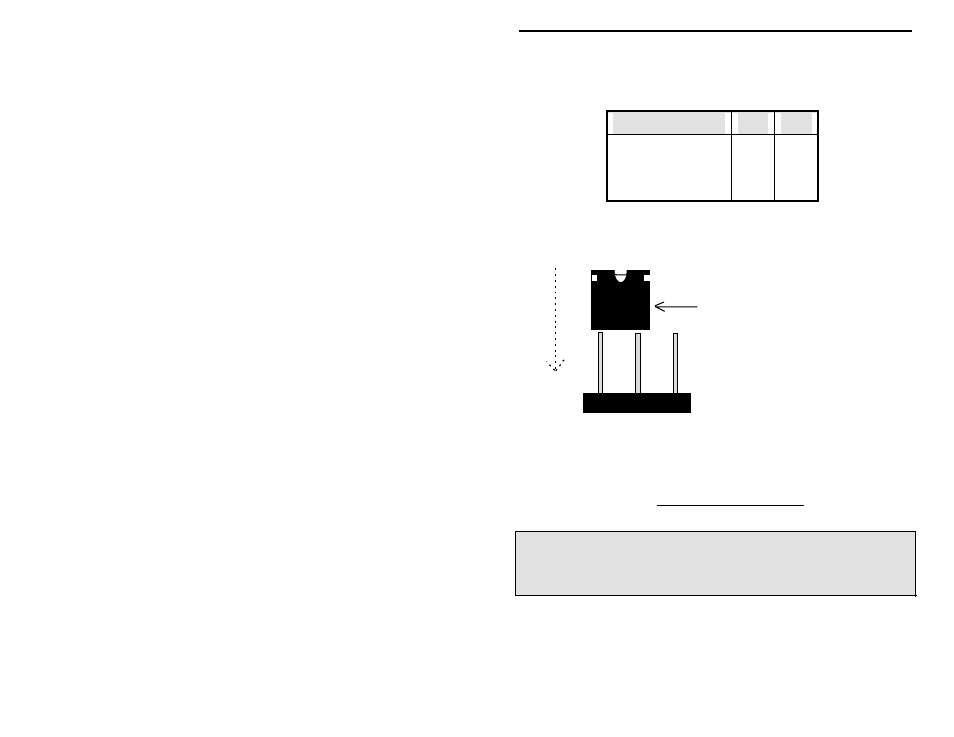

How the shorting clip is placed over jumper pins:
Shorting
block
Charge Rate Current is set with the headers HD4 and HD5 labeled CHARGE
CURRENT.
The Charge Rate Current is determined by the formula:
Icr =
Capacity of Battery ( mAh)
Charge Time ( hours)
WARNING: A too high charge current setting could
cause cells to explode or rupture. Consult
the battery manufacturer for the charging
current specifications of your battery!
Setting the Fast Charge Rate and Time Out: Rechargeable batteries have a
capacity, or C rating, associated with them. This value is defined in a milli-Amp
hour rating, or mAh. The Fast Charge Rate is determined by the capacity C of
the battery and by the time selected to charge the battery. The maximum Fast
