LVM-246W : REAR
●
[Audio in & out] (PHONE JACK)
- Outputs dis-embedded audio signal,
HDMI audio signal or stereo signal from
outside through internal speaker or phone
jack.
●
~ AC IN
- 100 ~ 240V AC 50/60Hz
●
DC 12V IN
- 12V DC
The way to input analog video signal.
When using the product make sure to ground,
whenever possible, before connecting the
input signal cable in order to prevent any
possible damage to the product or connected
devices. The damage may include signal
noise, malfunction of main board or display
panel. And the connected devices such as
camera or video source player may also
be influenced through signal cable. Please
check if the AC power source and the power
extender or power distributor is grounded.
●
[REMOTE] (RJ-45)
- Provides connection to control equipment
for external monitor control.
- Features can be changed in the [REMOTE]
section of OSD menu.
●
[RS422 IN/OUT] (RJ-45)
- Controls the monitor by a protocol provided
by TVLogic or supports TSL protocol.
●
[DVI-I] (DVI-I)
- Signal input terminal for DVI ANALOG or DVI
DIGITAL signal.
●
[HDMI(HDCP)] (HDMI)
- Signal input terminal for HDMI signal.
●
[CVBS1/Y/G/S-Y] (BNC)
- Signal input terminal for COMPOSITE 1,
S-VIDEO Y, COMPONENT Y, RGB G signal.
●
[CVSBS2/Pb/B] (BNC)
- Signal input terminal for COMPOSITE 2, RGB
B, COMPONENT Pb signal.
●
[CVSBS3/Pr/R/S-C] (BNC)
- Signal input terminal for COMPOSITE 3,
S-VIDEO C, COMPONENT Pr, RGB R signal.
●
[SDI-IN A] (BNC)
- Signal input terminal for 3G/HD/SD SDI
signal.
●
[SDI-IN B] (BNC)
- Signal input terminal for 3G/HD/SD SDI
signal.
●
[SDI-OUT] (BNC)
- Signal output terminal for 3G/HD/SD SDI
input signal through SDI-IN.

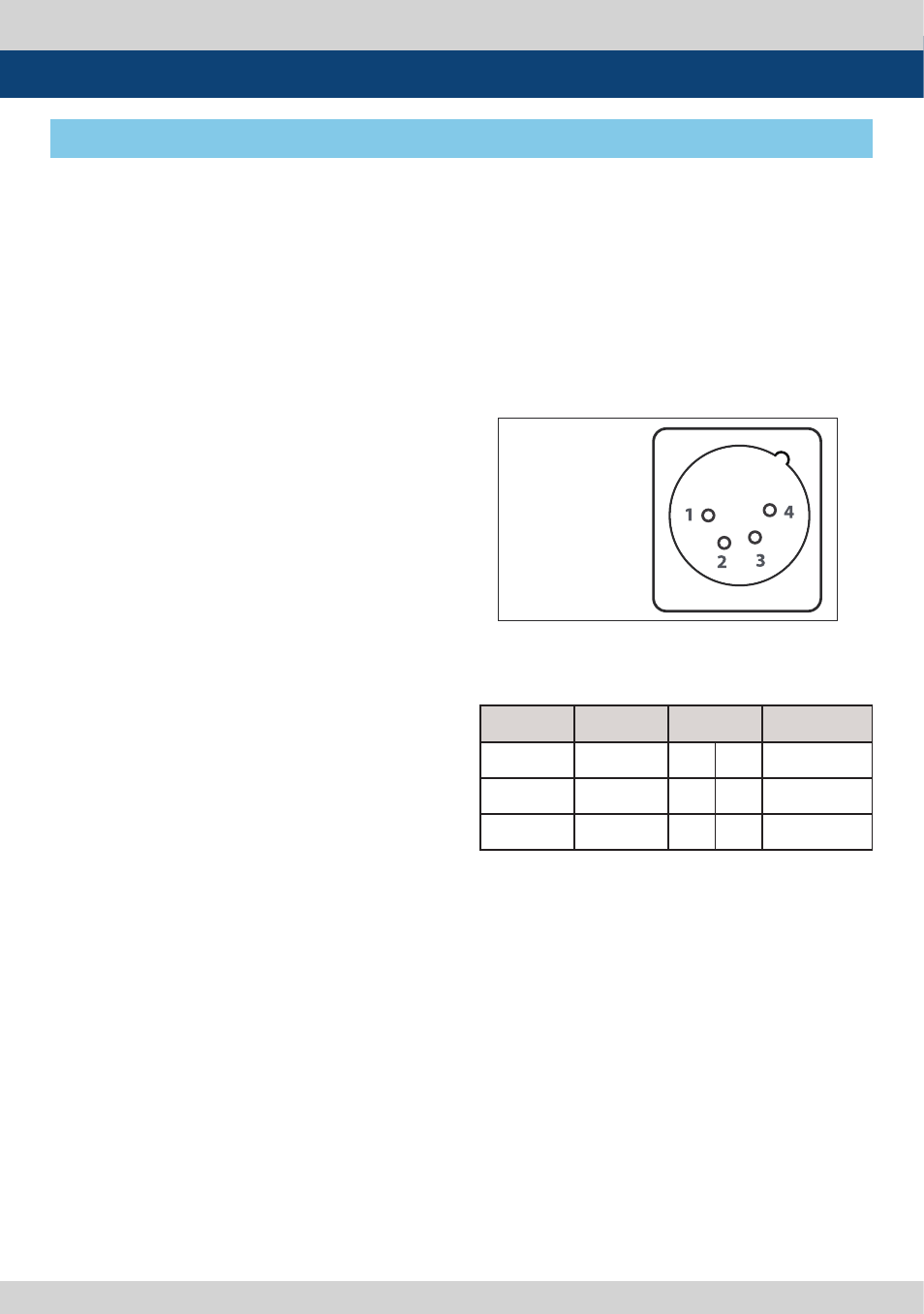

Connector Composite Component S-Video
1 CVBS1 Y G Y
2 CVBS2 Pb B No Con.
3 CVBS3 Pr R C
DC IN socket
1,2 : GND
3,4 : +12V
