Appendices

51

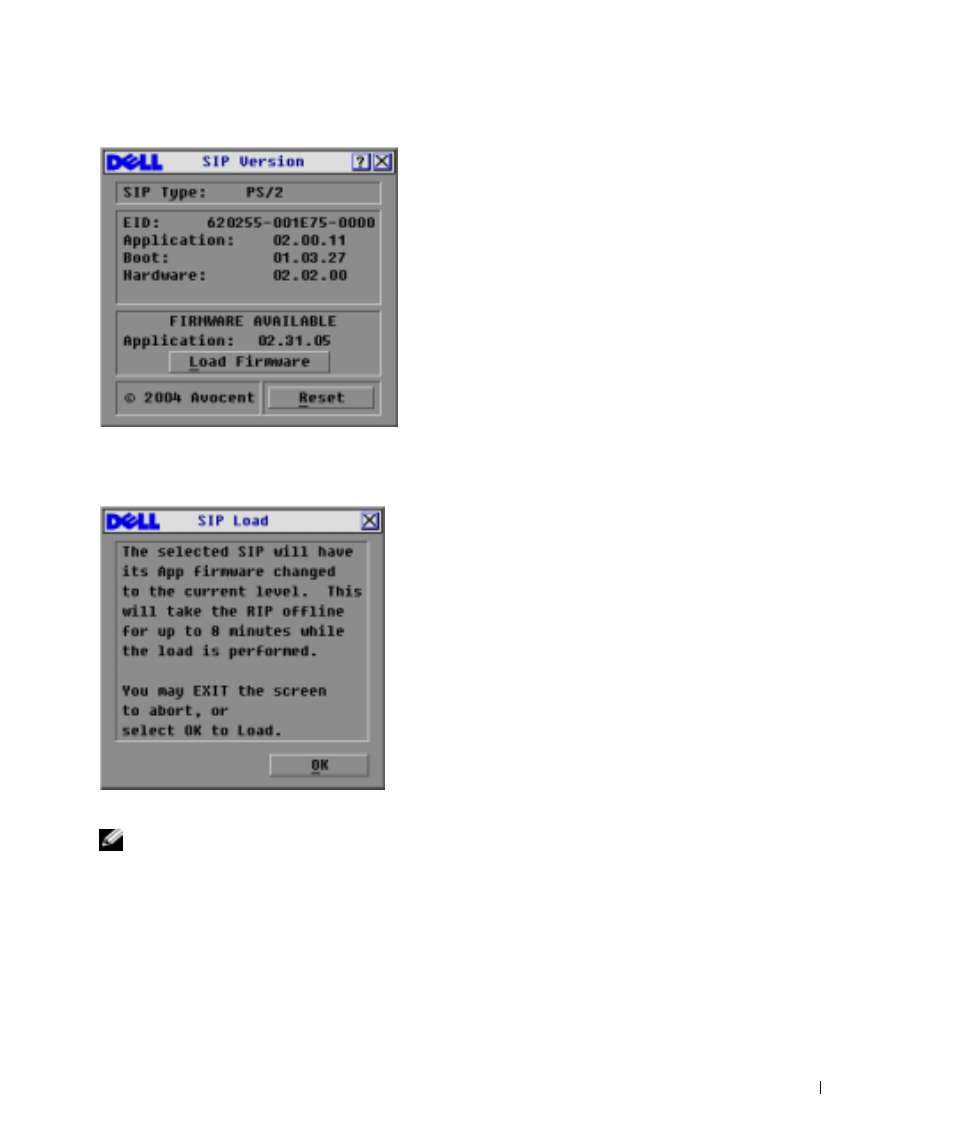

Figure 4-5. SIP Version Dialog Box

5

Click the Load Firmware button. The SIP Load dialog box appears.

Figure 4-6. SIP Load Dialog Box

6

Click OK to initiate the upgrade and return to the SIP Status dialog box.

NOTE:

During an upgrade, the SIP status indicator in the Main dialog box will be yellow. The SIP is

unavailable while an upgrade is in progress. When an upgrade is initiated, any current connection to the

server via the SIP will be terminated.
