36 Basic Operation
w
w
w
.d
el
l.
c
o
m
|
s
upp
ort
.del
l.
com

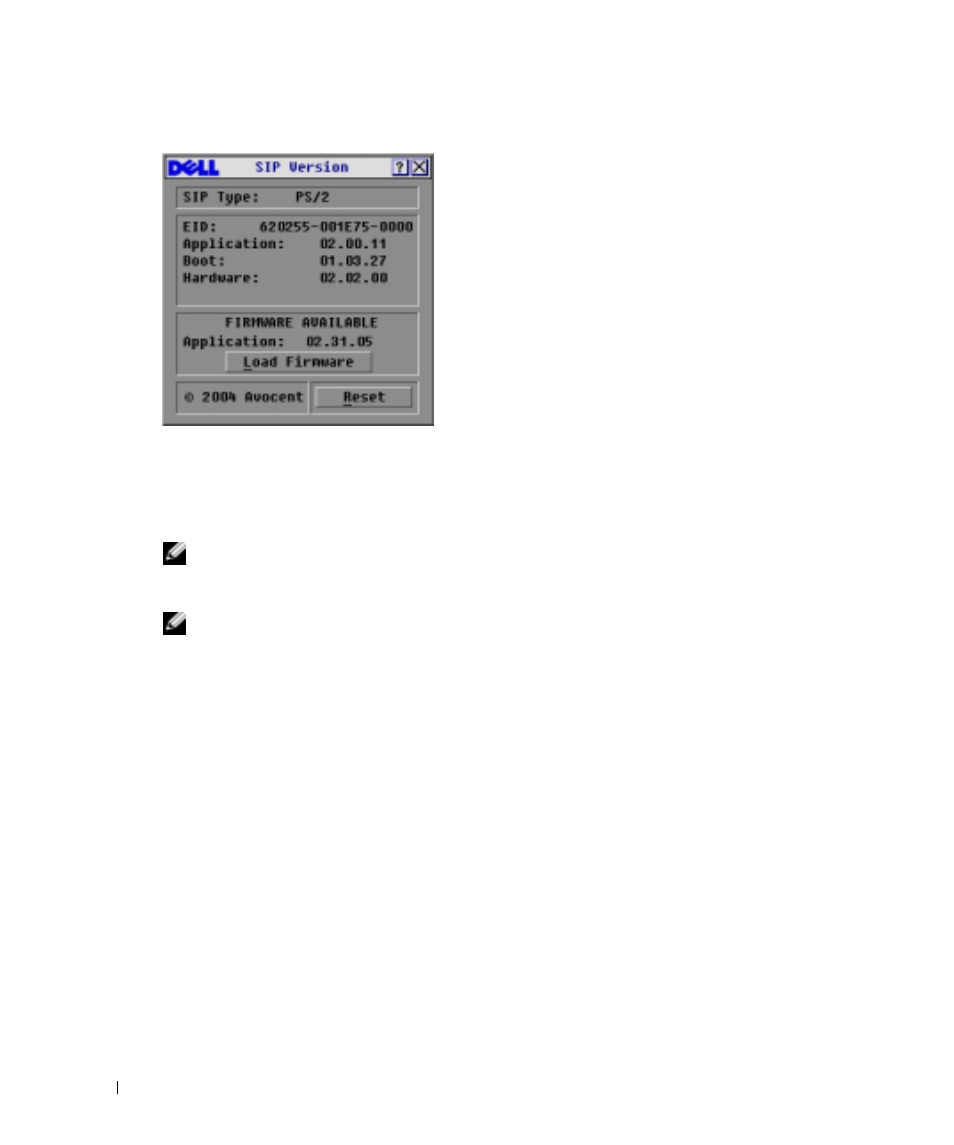

Figure 3-13. SIP Version Dialog Box
5
Click X to close the SIP Version dialog box.
Resetting a SIP
PS/2 SIPs can be reset using the Reset button in the SIP Version dialog box.
NOTE: This procedure is only relevant where your Console Switch system involves a PS/2 SIP attached
to a tiered switch. On these occasions, it may be necessary to reset the SIP when the tiered switch is not
recognized.
NOTE: If a reset is performed when a Console Switch is connected directly to a server and not a tiered
switch, the mouse/keyboard may fail to respond. When this occurs, the target server requires a reboot.
To reset a SIP:
1
Press . The Main dialog box will appear.
2
Click Commands - Display Versions. The Version dialog box appears.
3
Click SIP. The SIP Selection dialog box appears.
4
Select the PS/2 SIP that you wish to view and click Version. The SIP Version dialog box
appears.
