Viewing the status of your switch, Figure 3-1, Main dialog box – Dell Console Switch User Manual
Page 22: Table 3-1, Oscar interface status symbols

22
Basic Operation
w
w
w
.d
el
l.
c
o
m
|
s
upp
ort
.del
l.
com

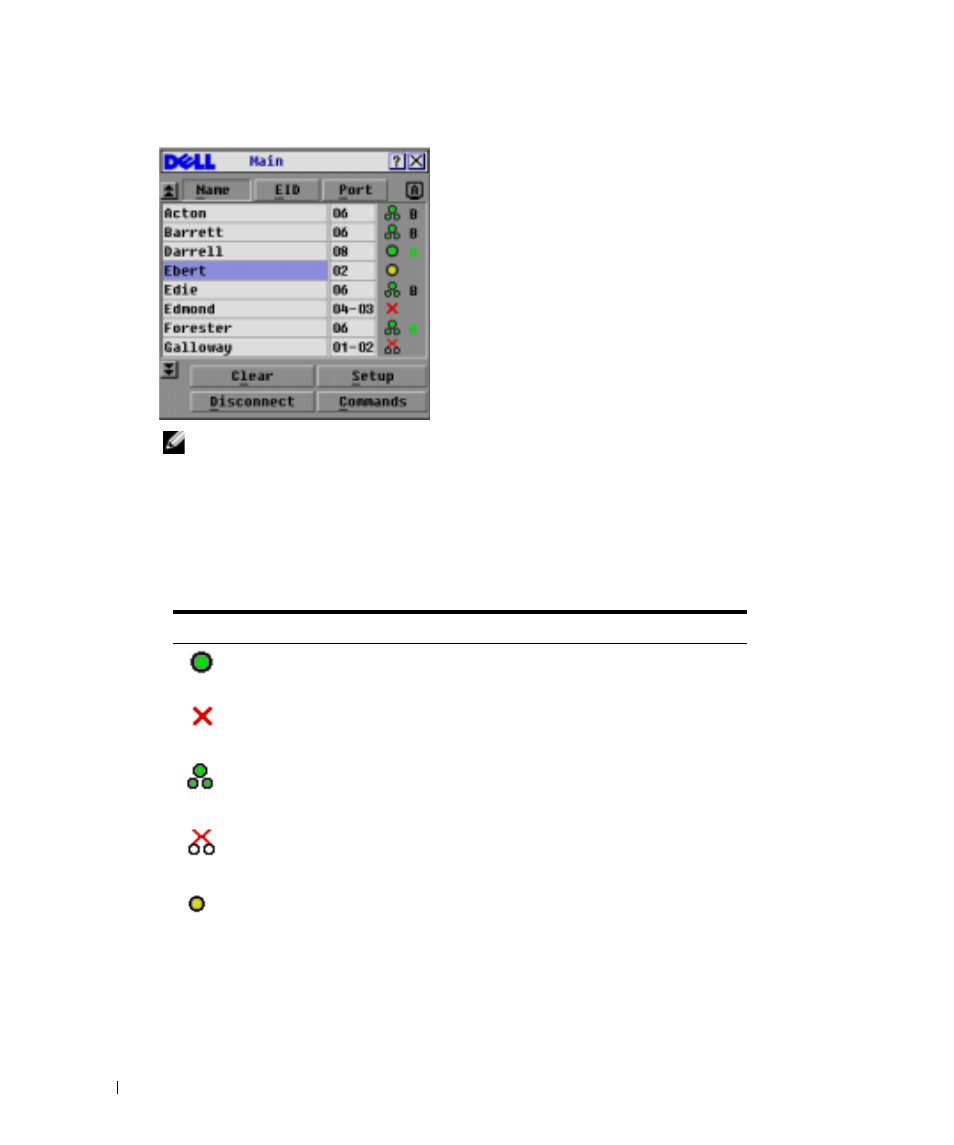

Figure 3-1. Main Dialog Box
NOTE:
You can also press the
can use this key sequence in any place you see
throughout this installer/user’s guide.
Viewing the Status of Your Switch
The status of the servers in your system is indicated in the right columns of the Main dialog box.
The following table describes the status symbols.
Table 3-1. OSCAR Interface Status Symbols
Symbol Description
Server Interface Pod (SIP) is online (green circle).
SIP is offline or is not operating properly.
Connected switch is online.
Connected switch is offline or is not operating properly.
SIP is being upgraded (yellow circle).
