Changing the display behavior, Figure 3-6, Device modify dialog box – Dell Console Switch User Manual
Page 29

Basic Operation
29

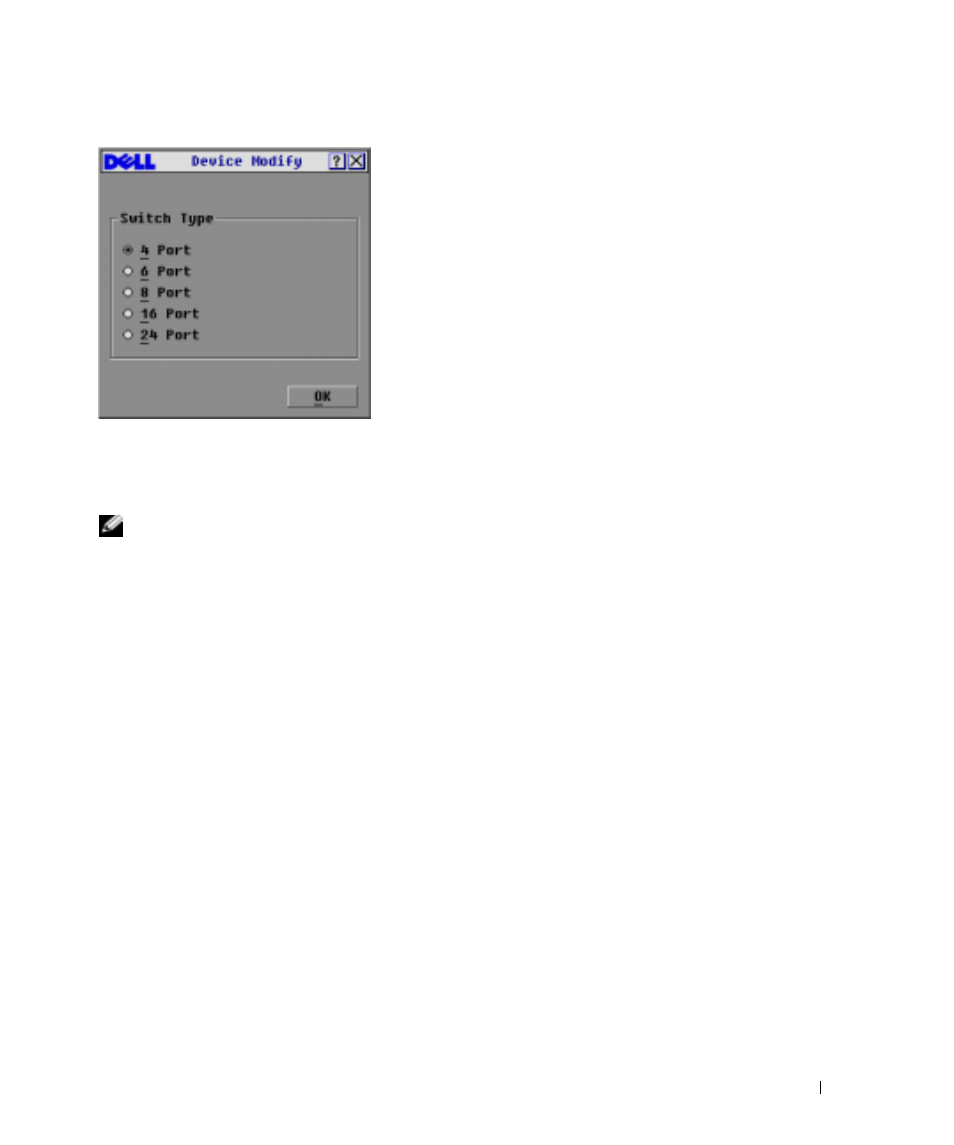

Figure 3-6. Device Modify Dialog Box
3
Choose the number of ports supported by your legacy switch and click OK.
4
Repeat steps 1 to 3 for each port requiring a device type to be assigned.
5
Click OK in the Devices dialog box to save settings.
NOTE:
Changes made in the Device Modify dialog box are not saved until you click OK in the Devices
dialog box.
Changing the Display Behavior
Use the Menu dialog box to change the display order of servers and set a Screen Delay Time for the
OSCAR interface. The display order setting alters how servers will display in several screens including
the
Main, Devices and Broadcast dialog boxes.
To access the Menu dialog box:
1
Press <Print Screen> to launch the OSCAR interface. The Main dialog box appears.
2
Click Setup - Menu in the Main dialog box. The Menu dialog box appears.
