Introduction
4

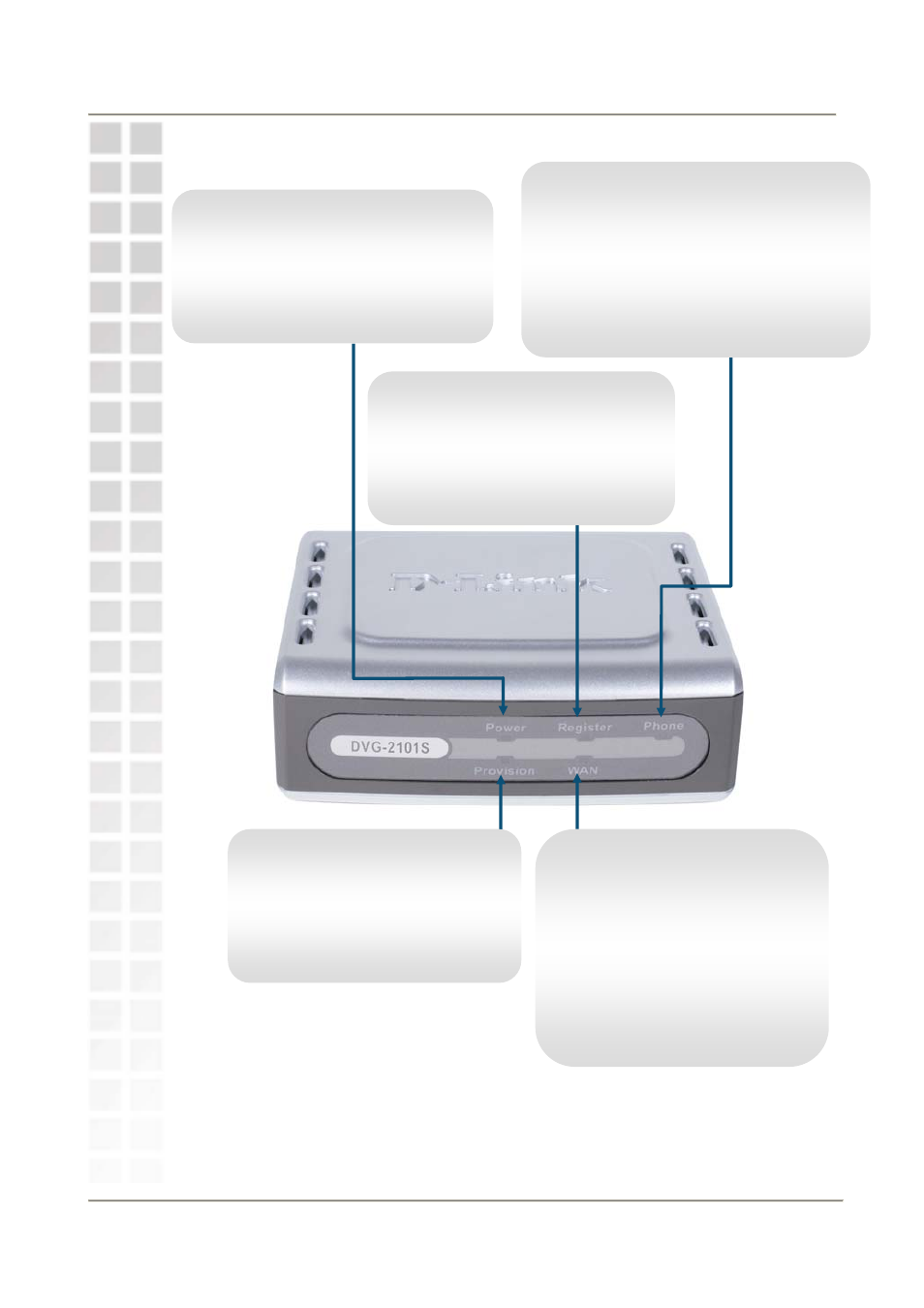

Front Panel
Register LED
This LED will light solid if the
phone account registers
successfully. This LED will flash
during registering and light off if
registering fails.
Power LED
This LED will light solid when the
device finishes a self-test and
booting up. This LED will flash
during device self-test and booting
and light off if the self-test fails.
Provision LED
This LED will light solid if the
device provisions successfully.
This LED will flash during
provisioning and light off if
provisioning fails.
Phone LED
This LED will light solid when the
telephone is off-hook. A fast blinking
LED indicates an incoming call and a
slow blinking LED indicates a
message is waiting. This LED will
light off if the phone connected to the
phone port is on-hook.
WAN LED
This LED will light solid when
a connection is established
and blink to indicate activity. If
this LED does not light up
when a cable is connected,
verify the cable connections
and make sure your devices
are powered on.
