Signamax Unmanaged 10/100 Hardened PoE+ Rack Mount Industrial Switch with 2 Gigabit Ethernet Uplink Ports User Manual
Page 7
Signamax
Hardened PoE Ethernt Switch
User’s Manual
5

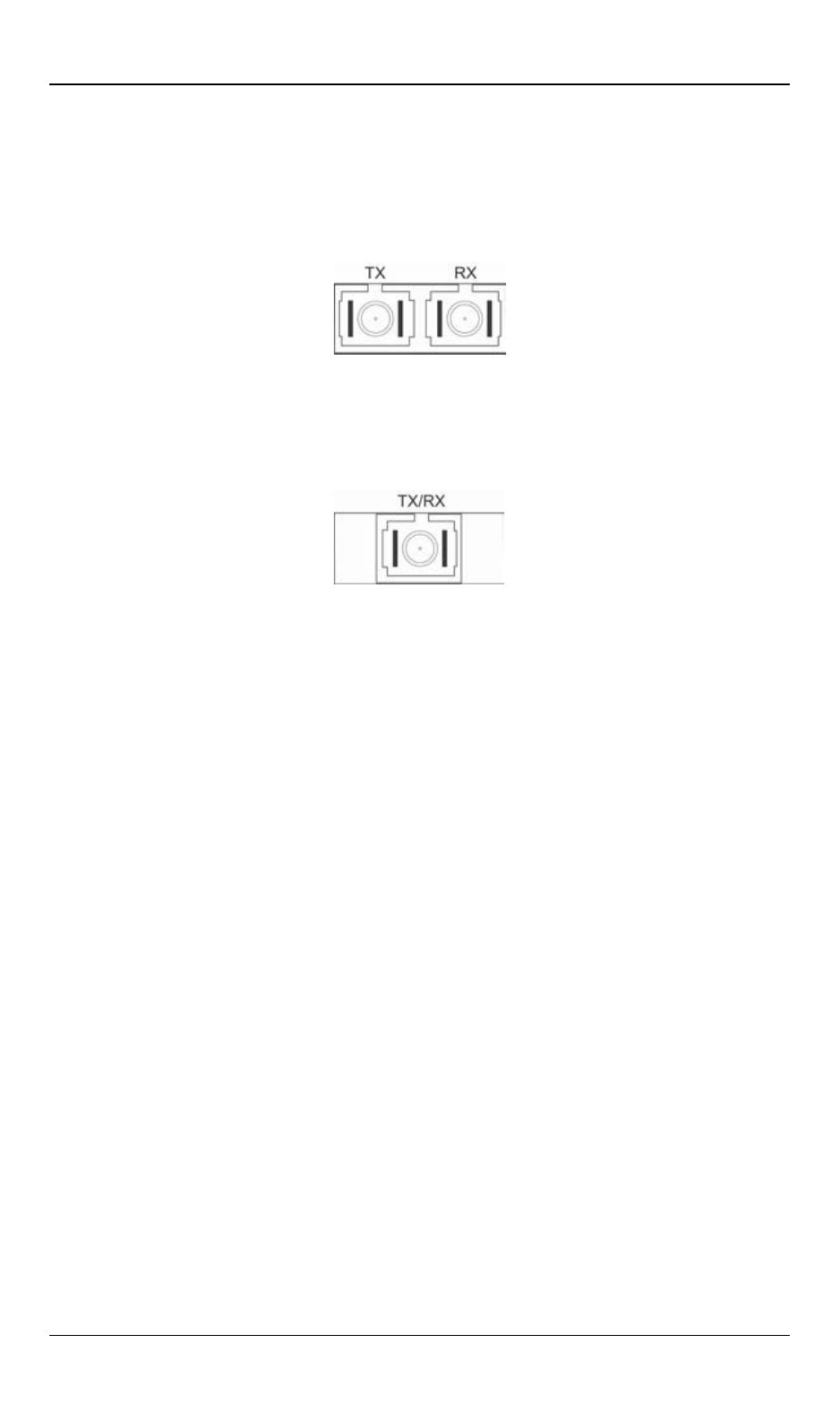

4. The 1000BaseSX/LX Connections
The fiber port pinouts: The Tx (transmit) port of device I is connected to the
Rx (receive) port of device II, and the Rx (receive) port of device I to the Tx
(transmit) port of device II.
5. The WDM 1000BaseBX Connections
The fiber port pinouts: Only one optical fiber is required to transmit and
receive data.
