Hardened PoE Ethernet Switch
2 User’s Manual
Quick Start Guide
This quick start guide describes how to install and use the
Hardened PoE Ethernet Switch. This is the switch of choice
for harsh environments.
Functional Description
• Meets NEMA TS1 & TS2 Environmental requirements: temperature,
shock, and vibration for traffic control equipment.
• Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity
for industrial environment.
• Supports IEEE802.3at Power over Ethernet (PoE) Power Sourcing
Equipment (PSE).
• 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation,
Auto-MDI/MDIX.
• Supports 4096 MAC addresses. Provides 2.25M bits buffer memory.
• Alarms for power failure by relay output.
• Power Supplies: Redundant 47-57VDC Terminal Block power inputs.
• Operating voltage and Max. current consumption: 9A @ 55VDC. Power
consumption: 495W Max.
• -40℉ to 167℉ (-40℃ to 75℃) operating temperature range. Tested for
functional operation @ -40℉ to 185℉ (-40℃ to 85℃).
• Supports Rack Mounting installation.
Physical Description

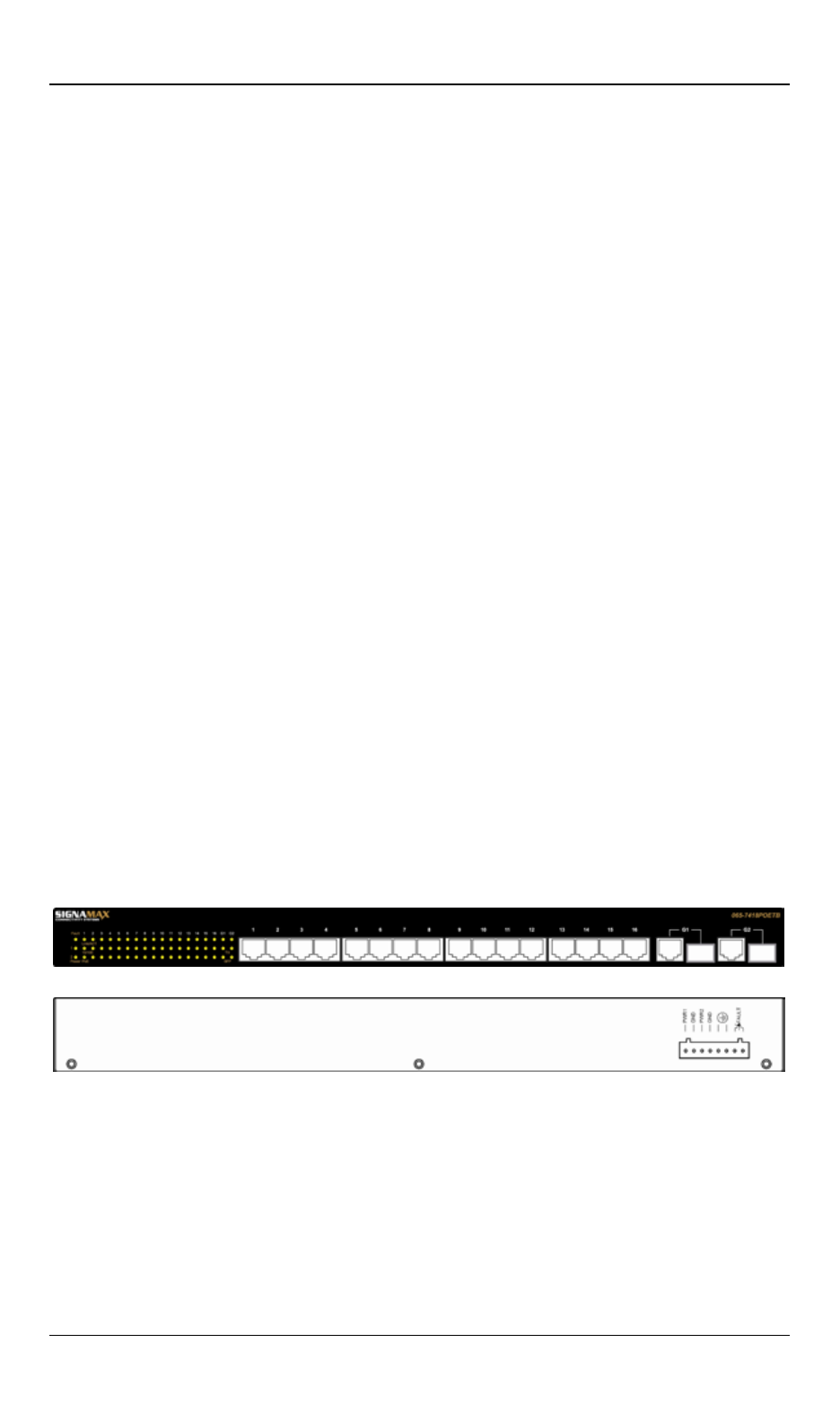

The Port Status LEDs and Power Inputs
