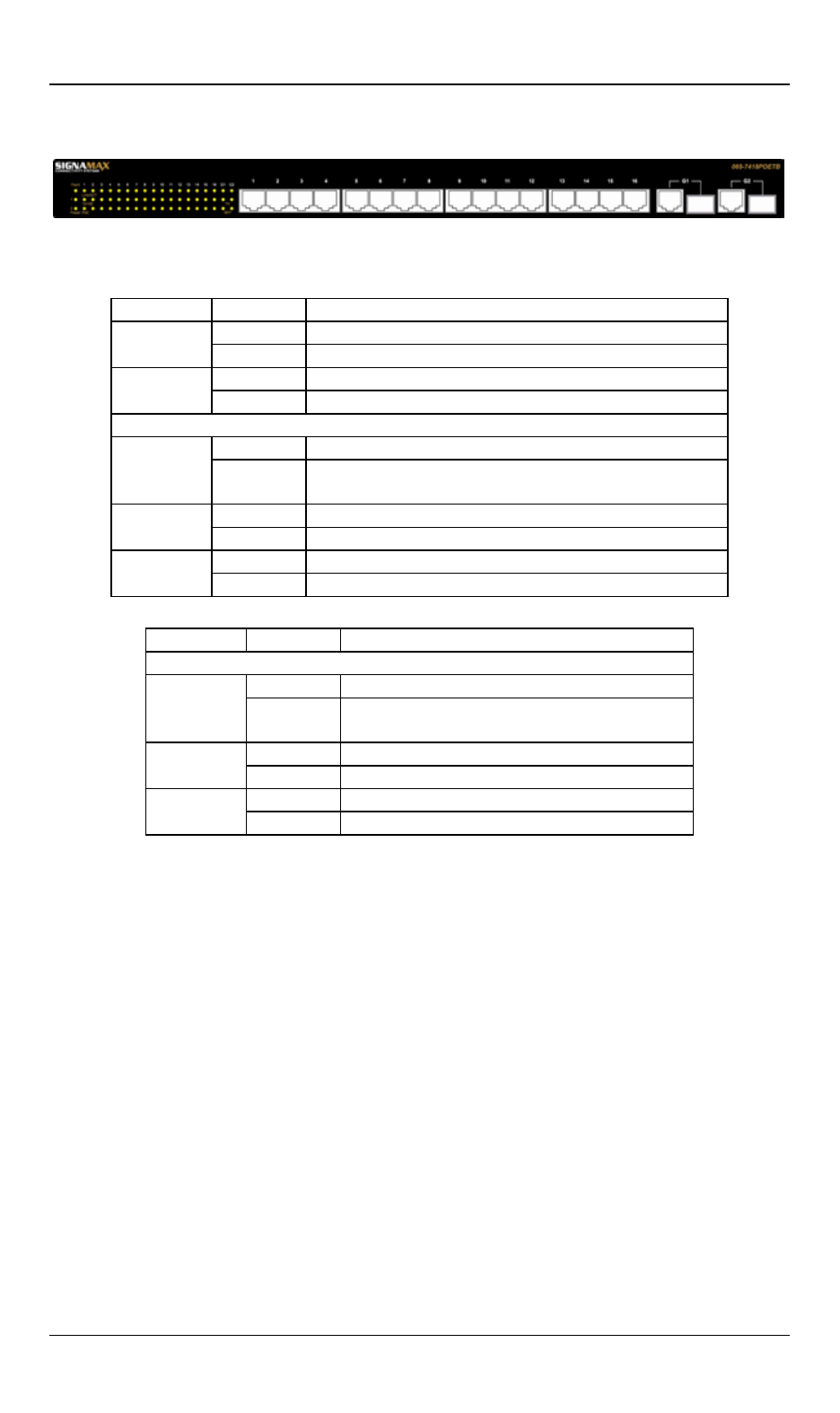

Front Panel Display
Status LEDs
LED
State
Indication
Power1
Power2
Steady
Power on.
Off
Power off.
Fault
Steady
Power redundant system failure occurred.
Off
Power redundant system failure is not occurred.
10/100BaseTX
Link/ACT
Steady
A valid network connection established.
Flashing
Transmitting or receiving data.
ACT stands for ACTIVITY.
10/100
Steady
Valid port connection at 100Mbps.
Off
Valid port connection at 10Mbps.
PoE
Steady
Powered device (PD) is connected.
Off
Powered device (PD) is disconnected.
LED
State
Indication
Gigabit Ethernet
Link/ACT
Steady
A valid network connection established.
Flashing
Transmitting or receiving data.
ACT stands for ACTIVITY.
TX
Steady
A valid TX connection established.
Off
No valid TX connection established.
SFP
Steady
A valid SFP connection established.
Off
No valid SFP connection established.
