Signamax
Hardened PoE Ethernet Switch
4 User’s Manual

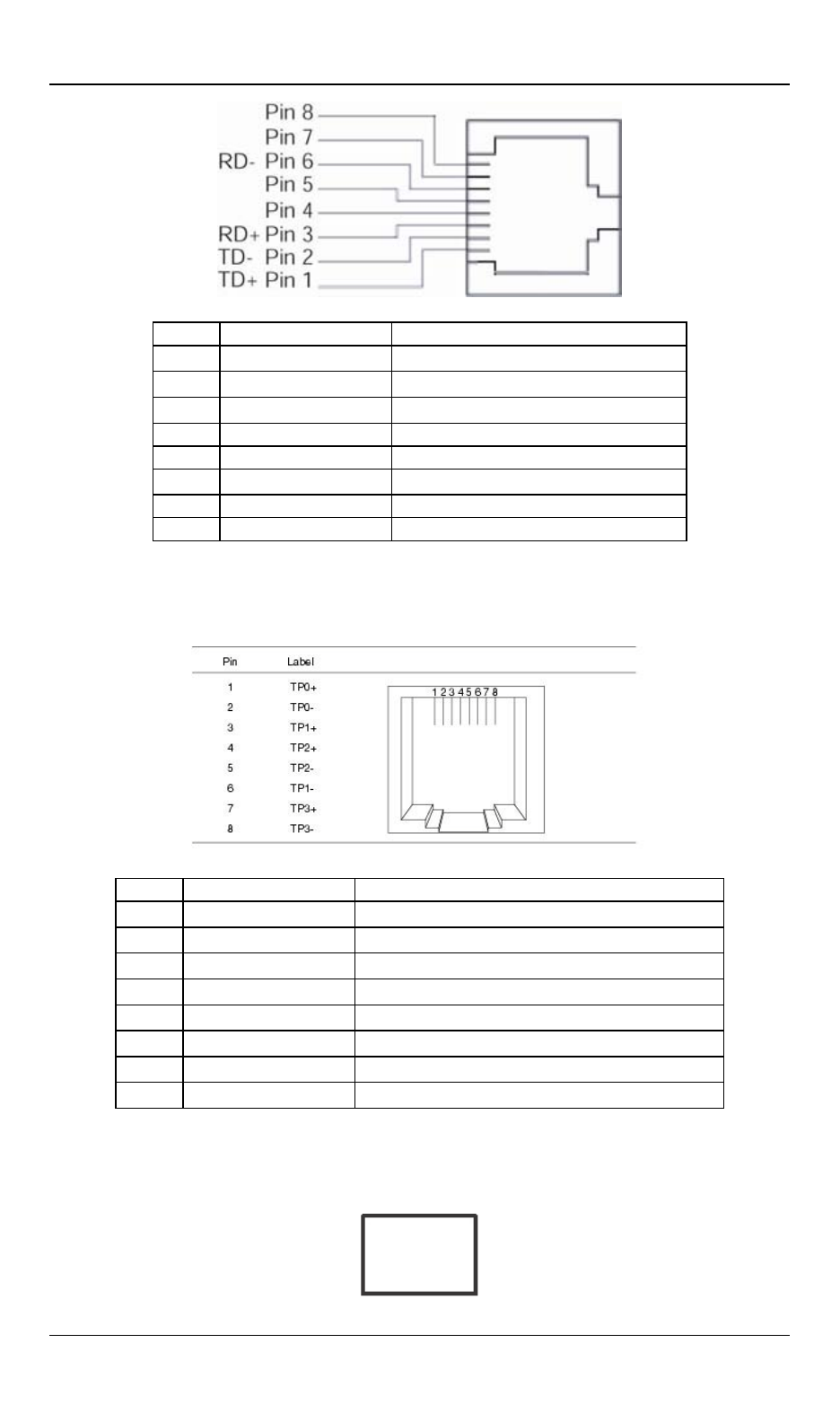

Pin
Signal Name
Signal Definition
1
TD＋
Output Transmit Data ＋
2
TD－
Output Transmit Data －
3
RD＋
Input Receive Data ＋
4
PoE
Positive (VCC+)
5
PoE
Positive (VCC+)
6
RD－
Input Receive Data －
7
PoE
Negative (VCC-)
8
PoE
Negative (VCC-)
2. The 1000BaseT Connections
The following lists the pinouts of 1000BaseT ports.
Pin
Signal Name
Signal Definition
1
TP0＋
Transmit and Receive Data 0 ＋
2
TP0－
Transmit and Receive Data 0 －
3
TP1＋
Transmit and Receive Data 1 ＋
4
TP2＋
Transmit and Receive Data 2 ＋
5
TP2－
Transmit and Receive Data 2 －
6
TP1－
Transmit and Receive Data 1 －
7
TP3＋
Transmit and Receive Data 3 ＋
8
TP3－
Transmit and Receive Data 3 －
3. The SFP Socket Connections
The SFP socket for Gigabit fiber optic expansion.
