Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.

15

NDiS M533 User Manual

Chapter 2: Jumpers and Connectors

1

2

51

52

Pin

Definition

Pin

Definition

1

PCIE_WAKE#

2

+3.3B_MINI

3

NC

4

GND

5

NC

6

D15VS

7

CLKREQ#

8

UIM_PWR

9

GND

10

UIM_DATA

11

MC_PCIE_CLK_N

12

UIM_CLK

13

MC_PCIE_CLK_P

14

UIM_RESET

15

GND

16

UIM_VPP

17

NC

18

GND

19

NC

20

MINICARD1_DIS#

21

GND

22

WLAN_RESET#

23

mPCIE_RX_N

24

+3.3B_MINI

25

mPCIE_RX_P

26

GND

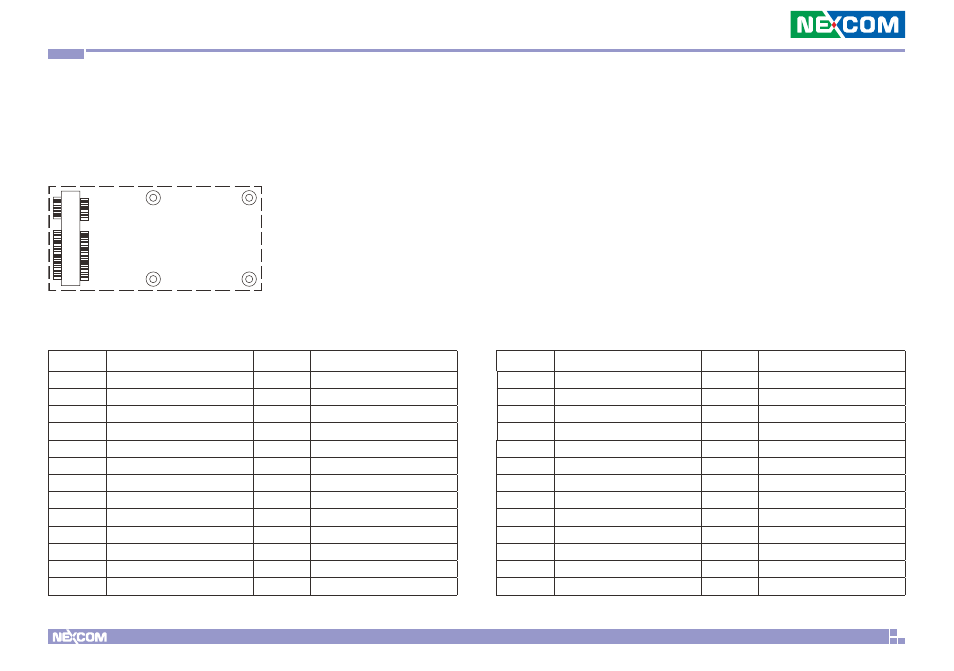

Mini-PCIe Connector

Connector location: CN6

Pin

Definition

Pin

Definition

27

GND

28

D15VS

29

GND

30

SMB_CLK

31

mPCIE_TX_N

32

SMB_DATA

33

mPCIE_TX_P

34

GND

35

GND

36

USB_IN

37

GND

38

USB_IP

39

+3.3B_MINI

40

GND

41

+3.3B_MINI

42

NC

43

GND

44

LED_WLAN#

45

NC

46

NC

47

NC

48

D15VS

49

NC

50

GND

51

PRE-DEC

52

+3.3B_MINI
