Ndib m533 – NEXCOM NDiS M533 User Manual
Page 20
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
6
NDiS M533 User Manual
Chapter 2: Jumpers and Connectors
Locations of the Jumpers and Connectors for NDiB M533
NDiB M533

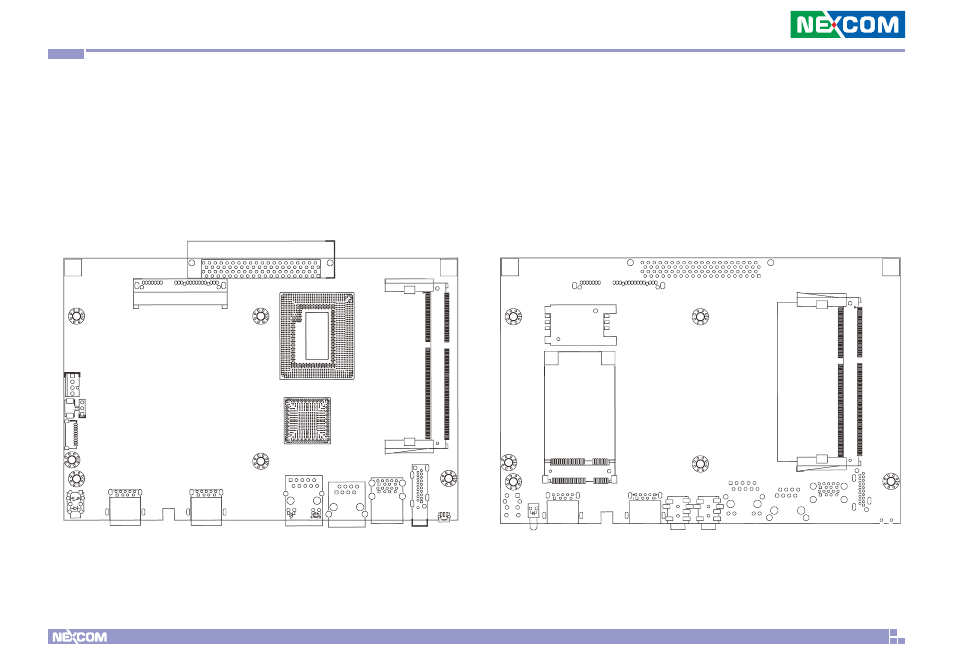

The figure below is the top and bottom view of the NDiB M533, which is the mainboard used in the NDiS M533. It shows the locations of the jumpers and
connectors.
SATA1
CON1
J1
J2
J3
CN3
CN4
CON2 COM1 CN2
CN1
CN5
CN6
