Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.

14

NDiS M533 User Manual

Chapter 2: Jumpers and Connectors

Pin

Definition

Pin

Definition

S1

GND

S2

SATA_TXPO_C

S3

SATA_TXNO_C

S4

GND

S5

SATA_RXNO_C

S6

SATA_RXNO_C

S7

GND

P1

NC

P2

NC

P3

NC

P4

GND

P5

GND

P6

GND

P7

VCC5

P8

VCC5

P9

VCC5

P10

GND

P11

NC

P12

GND

P13

SATA_V12

P14

SATA_V12

P15

SATA_V12

MH1

GND

MH2

GND

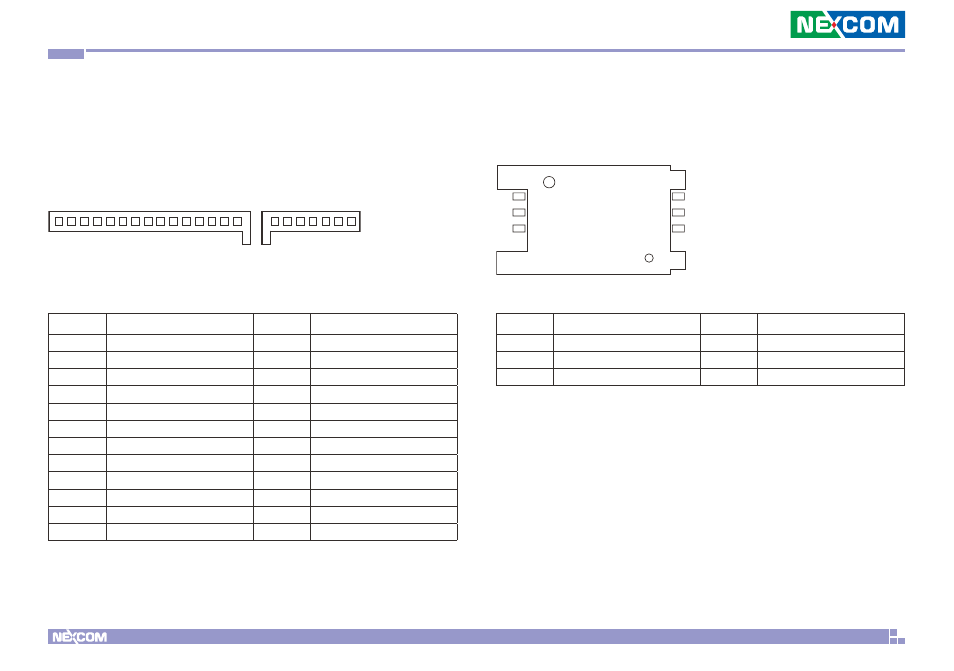

SATA Connector (7-pin and 15-pin)

Connector type: Standard Serial ATAII 7P and 15P
Connector location: SATA1

S1

P15

SIM Card Slot

Connector location: CN5

C3
C2
C1

C7
C6
C5

Pin

Definition

Pin

Definition

C1

UIM_PWR2

C2

UIM_RST2

C3

UIM_CLK2

C5

GND

C6

NC

C7

UIM_DAT2
