NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual

Appendix F: PoE Device Setup

Hybrid DVR Configuration (NViS 3540H only)

1. The 25-pin connector on the capture card is used to connect surveil-

lance cameras.

25-pin

connector

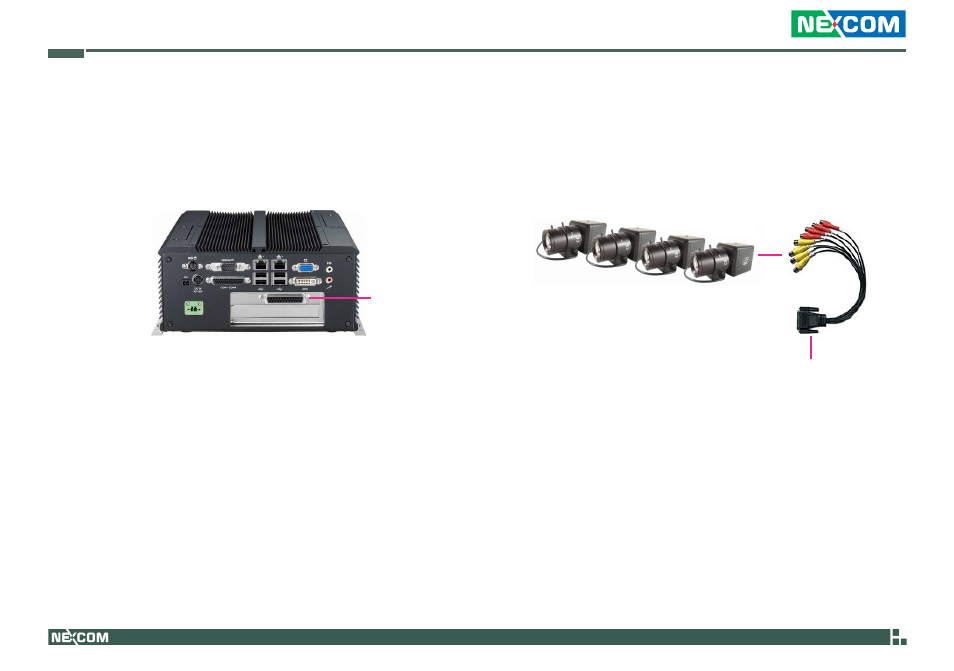

2. Connect the D-sub end of the provided cable to the 25-pin connector

and the other ends to surveillance cameras.

D-sub end:

connect to the

25-pin connector

Connect Surveillance Cameras

Black BNC connector for TV out
Yellow BNC connector for CCVT
Red AV connector for Audio
