Installing a SSD/HDD Drive

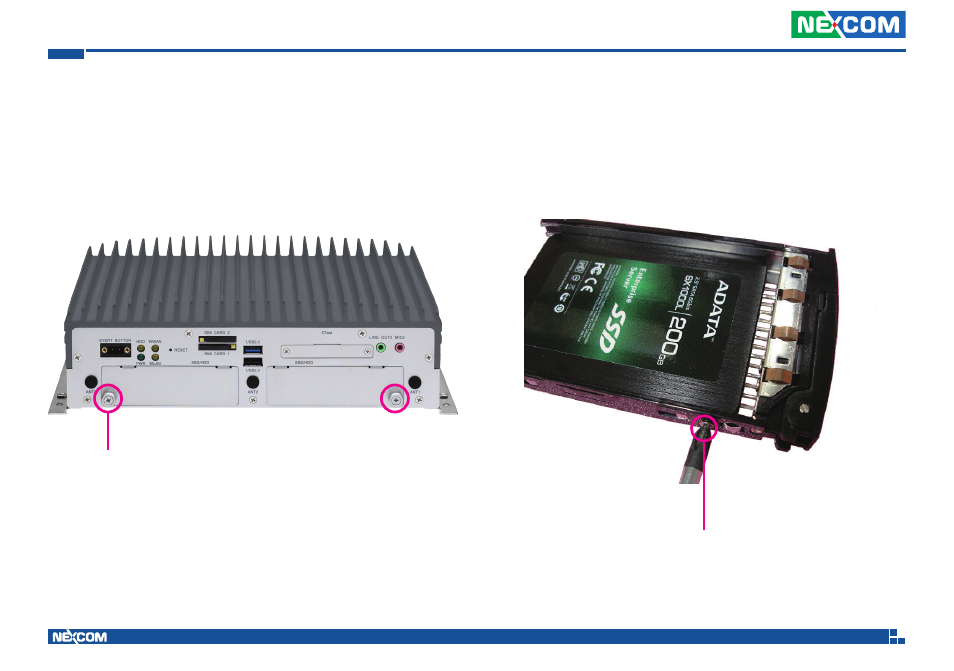

1. The two SSD/HDD bays on the front are used to install 2.5” hard drives.
Loosen the thumb screws and remove the covers.
Note: The following instructions cover how to install a single 2.5” hard
drive, but will also outline the steps to install the hard drive brackets for the
two SSD/HDD bays.
Thumb
screws
2. Insert the hard drive into the drive bay with the SATA data and power
connector facing towards the end. Align the hard drive’s mounting holes
with the mounting holes on the drive bay, and use the provided screws
to secure the hard drive in place.
Mounting
screws
