Chapter 2: External Connectors Pinout Description
NViS3620/3720 series User Manual

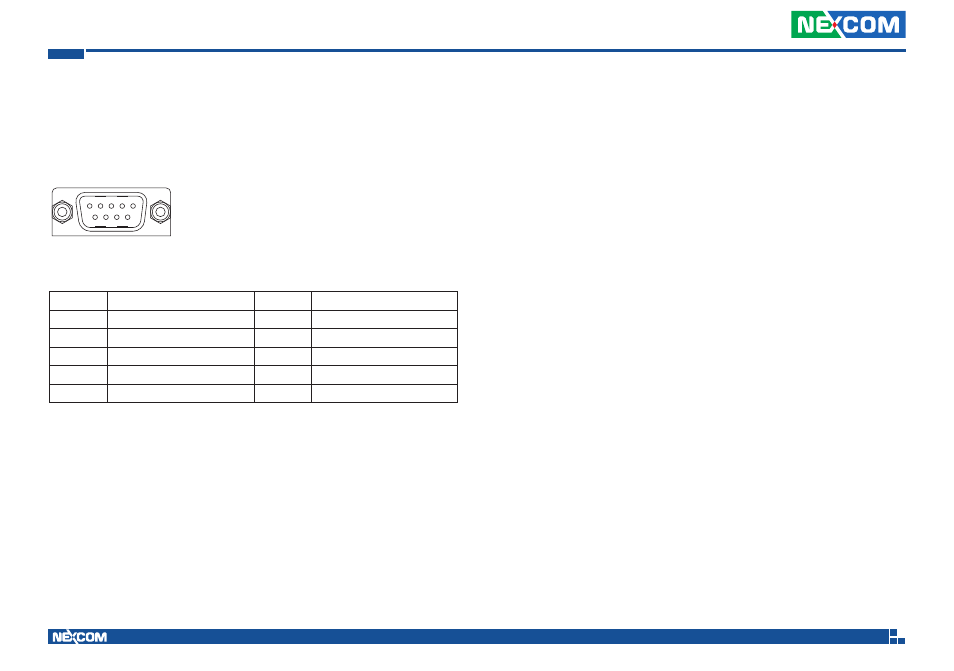

MCU-DIO
Connector Number: 21
Pin
Definition
Pin
Definition
1
NC
2
NC
3
MCU-DI1
4
MCU-DI2
5
GND
6
NC
7
NC
8
MCU-DO1
9
MCU-DO2
1
5
6
9
