Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.

37

Chapter 3: Jumpers and Switches

NViS3620/3720 series User Manual

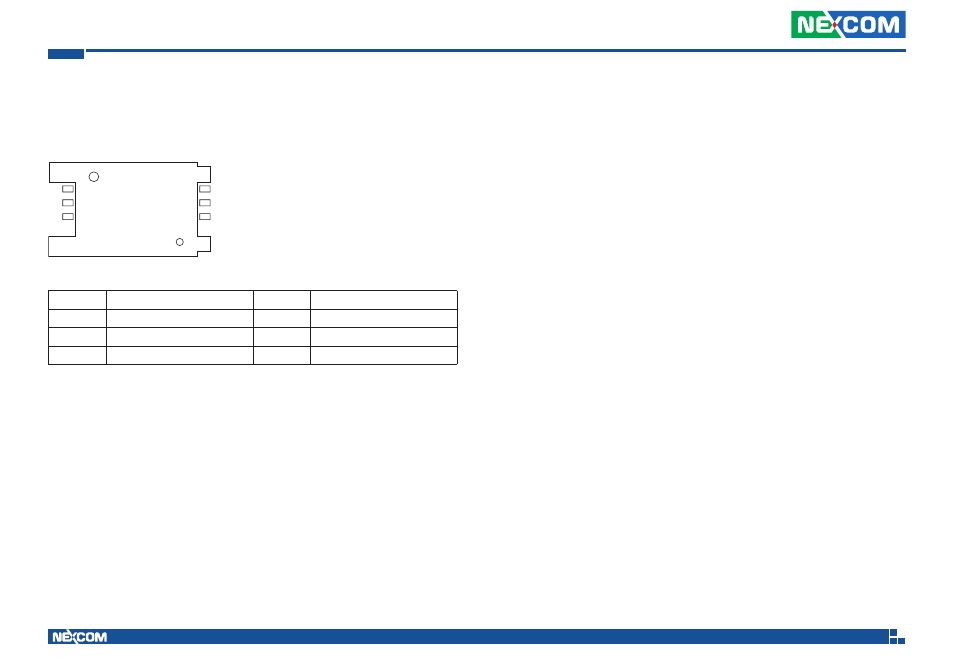

Internal WWAN SIM Card Socket (SIM 3) For CN21

Connector location: CN20

Pin

Definition

Pin

Definition

C1

SIM PWR

C5

GND

C2

SIM RST

C6

NC

C3

SIM CLK

C7

SIM DAT

C5
C6
C7

C1
C2
C3
