METADATA PROGRAMS: Display of program-specific Metadata
These Input values are for display only, that’s why the fields are grey and the content can not be
changed. The Follow Input check boxes determine if metadata are used from the decoder or from a
preset.

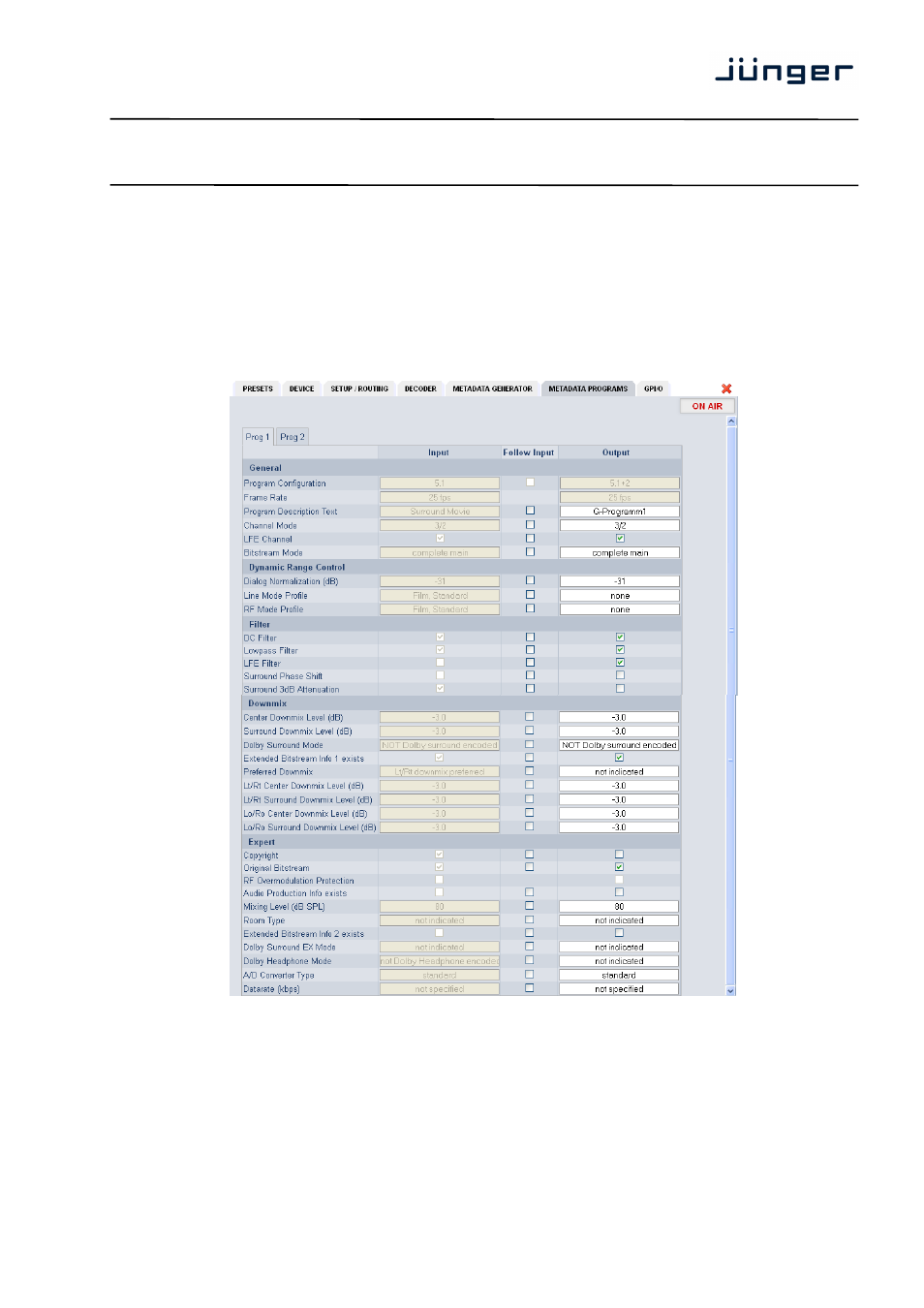

The example below shows the metadata of the first program of a Dolby E stream that must be
encoded to transmit two programs 5.1 +2 (surround and stereo).
At the input side we decode a Dolby E stream that is encoded for a 5.1 program.
As per definition the Junger Dolby implementation supports only the program configurations:
5.1 / 3x2 / 5.1+2 / 4x2 so a maximum of 4 tab sheets will contain Output metadata. The other tabs are
for the display of incoming metadata only (if the number of programs is higher than the generator
set-up. In this example case we have two program tabs Prog 1 and Prog 2 because the generator is
set for 5.1+2 and the input has only one program.
