Transparent
[on / off]
Status Bits you can decide whether the AES Channel Status Bits are taken
(transparent) from their source or if you want to generate new ones:
Format : Professional
Audio Mode : Audio
Emphasis : None
Freq. Mode : Locked
Sample Freq. : 48kHz
Channel Mode : Not Indicated
User Bits : None
Auxiliary Bits : 24Bit
Audio Word Length : Not indicated
If the embedder detects a non audio signal it will set the "Audio Mode" to
"Other" (non audio) and will set the validity bit for the AES stream.

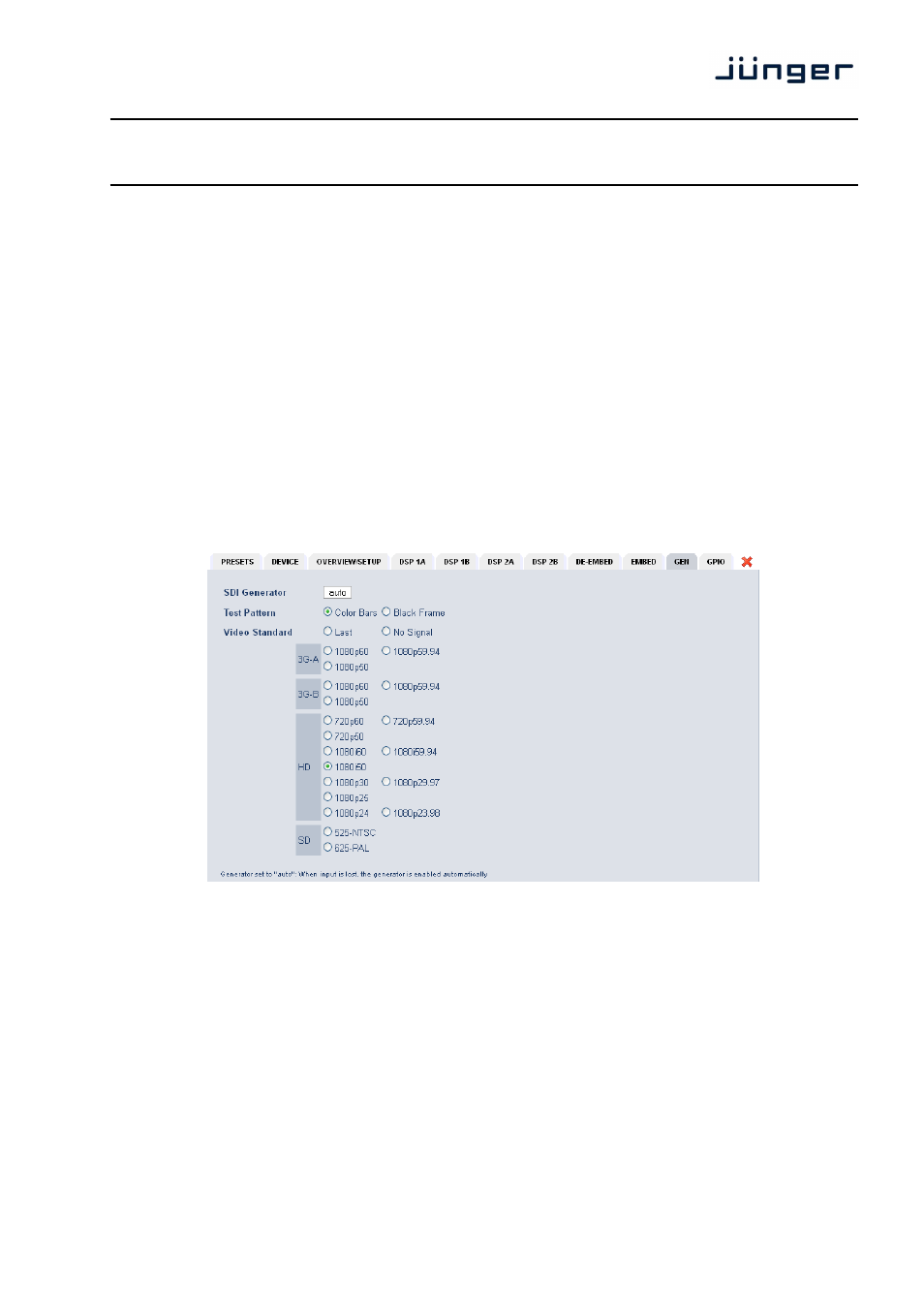

GENERATOR
SDI Generator [off / on / auto]
If the generator is turned "on", you can select one of the listed standards.
If the generator is set to "auto" and the input signal is lost, the generator
will use the last valid input format. If no SDI was present since a power
cycle the output defaults to 720p60.
Test Pattern [Color Bars / Black Frame]
The generator can either generate 100% Color Bars or Black.
Video Standard You may select one of the above standards for the generator output.
Last The generator uses the last seen input format.
No Signal The generator output will be off.l
Important note! If the generator is turned on it operates on an internal quartz reference.
I.e. the signal is not synchronized to the SDI input.
