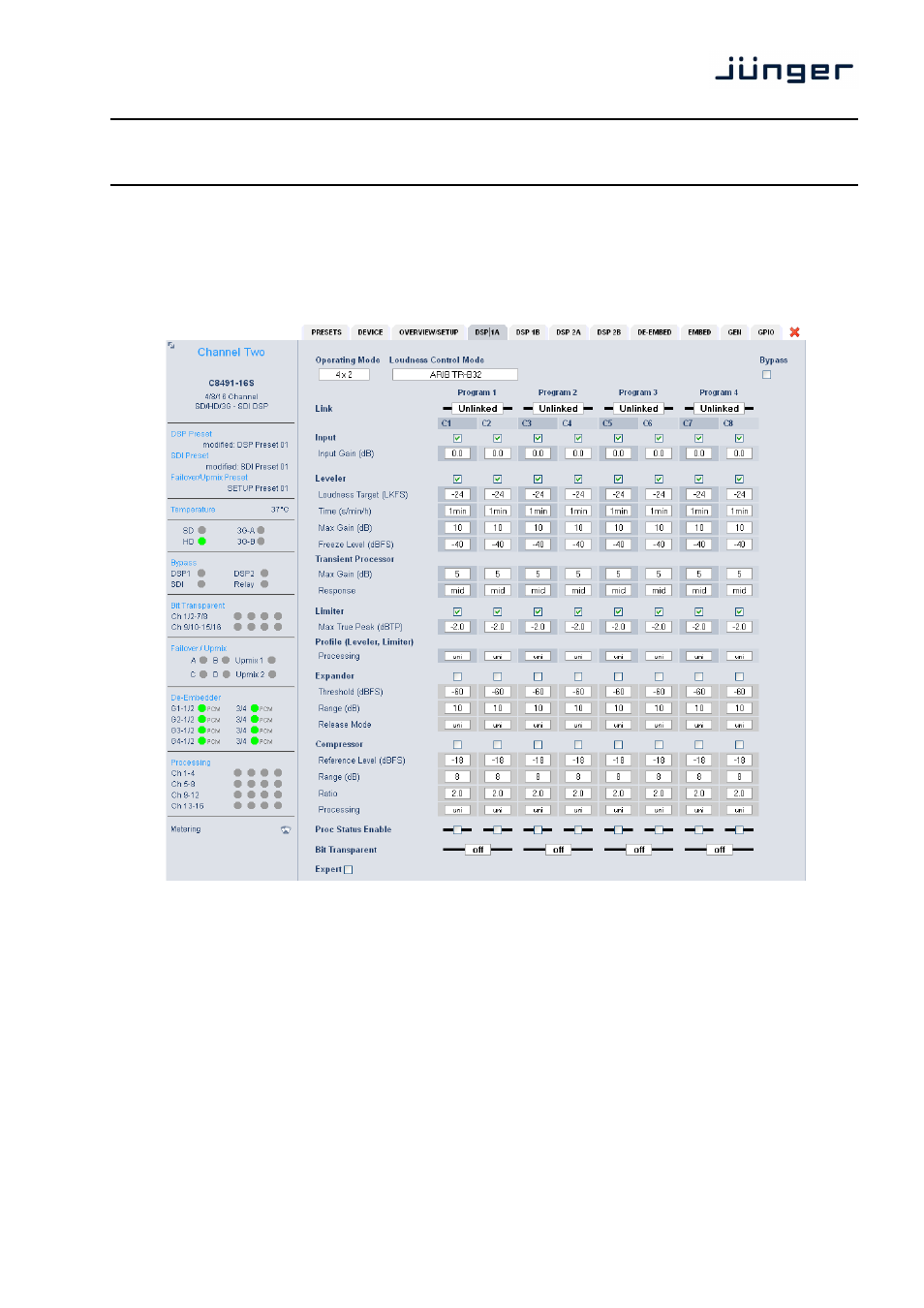

DSP 1A - 4 x 2 mode
From here you can control the audio parameters of the C8491 function blocks.
For detailed explanation of the LevelMagic parameters pls. see the separate document:
Junger_Processing-Parameters_xxyyzz.pdf which you may download from our web site.
Operating Mode [5.1 + 2 / 4 x 2]
defines the number of audio channels which are used for one audio
program. All relevant processing blocks will be configured to meet
the selected mode.
Loudness Control Mode [Level / ITU BS.1770-1, -2, -3 / EBU R 128 / ARIB TR-B32
ATSC A/85 (2011 7 2013) / Free TV OP-59 / Porteria 354]
Bypass [On / Off]
the processing parameters will be bypassed to validate the actual
settings. If enabled, the respective
Bypass DSP1 or Bypass DSP2
soft LED turns red in the status panel.
Link [Unlinked / Linked]
defines the coupling of the control circuits in order to maintain the
listening balance for correlated signals or to provide a grouping of
the setup parameters for multi channel signals.
