LΩGIC™ 16X36 QRG
8

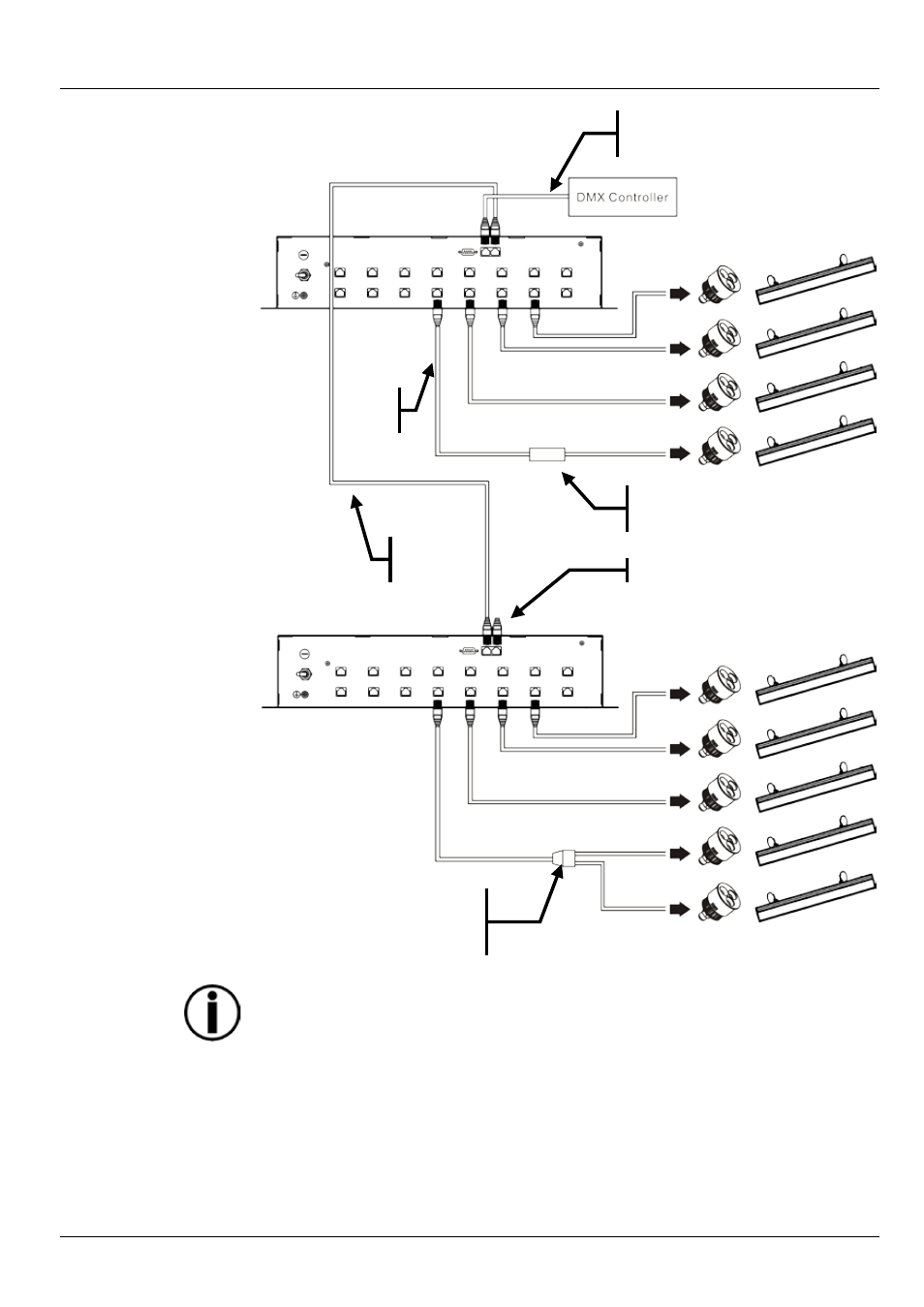

Product
Connection
Diagram
Connect the DMX
controller to the first
LΩGIC™ 16X36 using
a DMX to RJ-45 adapter
cable.
Link each
LΩGIC™
16X36 with a RJ-45
signal patch cable, as
shown. You can use a
RJ-45 coupler to link
the LED patch and the
product’s CAT5 cable.
You should use an RJ-
45 terminator on the
DMX output of the last
LΩGIC™ 16X36.
Once done, connect
your lights (loads)
directly to the
corresponding line
outputs.
Alternatively, you can
use the line splitter
connector(s), as seen in
the diagram.
Do not use the splitter as a coupler. All cables must be terminated to a
product.
RJ-45 Coupler
(Included with controller)
RJ-45 to DMX adapter
(Included with controller)
RJ-45 Terminator
RJ-45 Splitter
(Included with
product)
Signal
patch
LED
patch
